Description

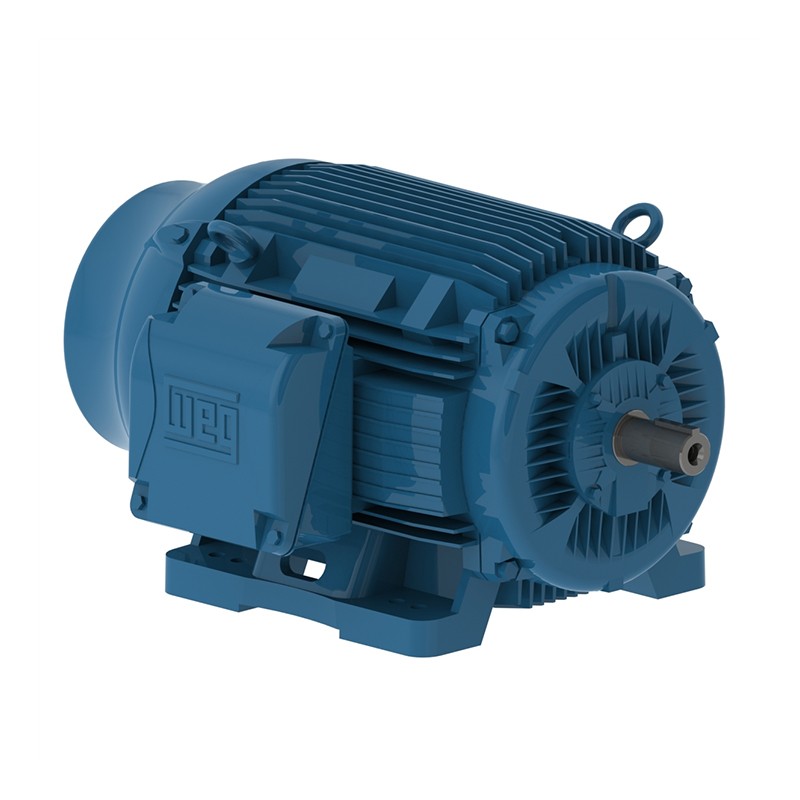

12512ET3G445T-W22 NEMA Premium Efficiency 125 HP 6P 444/5T 3Ph Motor
Product Specifications:
Standard: NEMA MG-1
Frequency: 60 Hz
Voltage: 460 V
Number of poles: 6
Degree of Protection: IP55
Synchronous speed: 1200 rpm
Output rating: 125 HP
Mounting: Foot-mounted
Flange: Without
Mounting: F-1
Terminal box: Left position
Enclosure: IC411 – TEFC
Frame Material: Cast Iron
Impregnation Method: Constant Resin Flow
Regreasing System: At Drive end and Non-drive end
Main terminal box hole: 2xNPT 3″
Terminal Block: Without
Shaft Locking Device: Without
Drain: Rubber, automatic
Shaft Material: SAE 4140 Carbon Steel
Painting: RAL 5009 203A (ISO 12944 – C2)
Grounding Lugs: Double
Fan Cover material: Cast Iron
Tropicalized Painting: Without
Fan material: Plastic
Bearing cap: Yes- Bearing Cap
Balancing Method: 1/2 Key
Drip Cover: Without
Overload protector (phenolic): Without overload protector
Connection Cables Quantity: 12
