Description

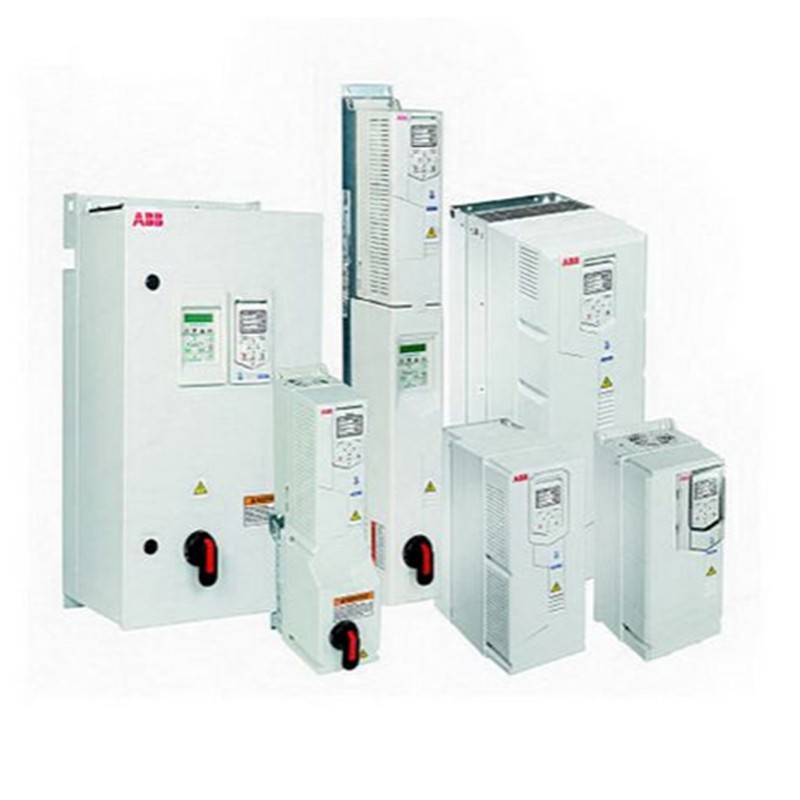

ABB ACH580-BDR-065A-4B058F267 50HP, 480V, AC Drive
Product Specifications:
Brand: ABB
Part Number: ACH580-BDR-065A-4B058F267
Bypass Type: Electronic
Drive Isolation: Yes
Disconnect Type: Disconnect Switch
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
Input Phase: 3
HP (VT): 50 Horsepower
Amps (VT): 65 Amps
Max. Frequency: 500 Hertz
Braking Type: Flux Braking;Dynamic Braking
AC Line Regenerative: No
Closed Loop: No
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Operator Controls: Keypad Included
Enclosure Rating: NEMA 3R
IP Rating: IP24
NEMA Rating: NEMA 3R
Comments: Disconnect Switch & Fuses, Electronic Bypass, Built-in BACnet MS/TP, N2 & Modbus RTU
Mounting: Panel
Frame Size: BX3R-2
Dimensions: 40.71 in x 20.71 in x 15.43 in
