Description

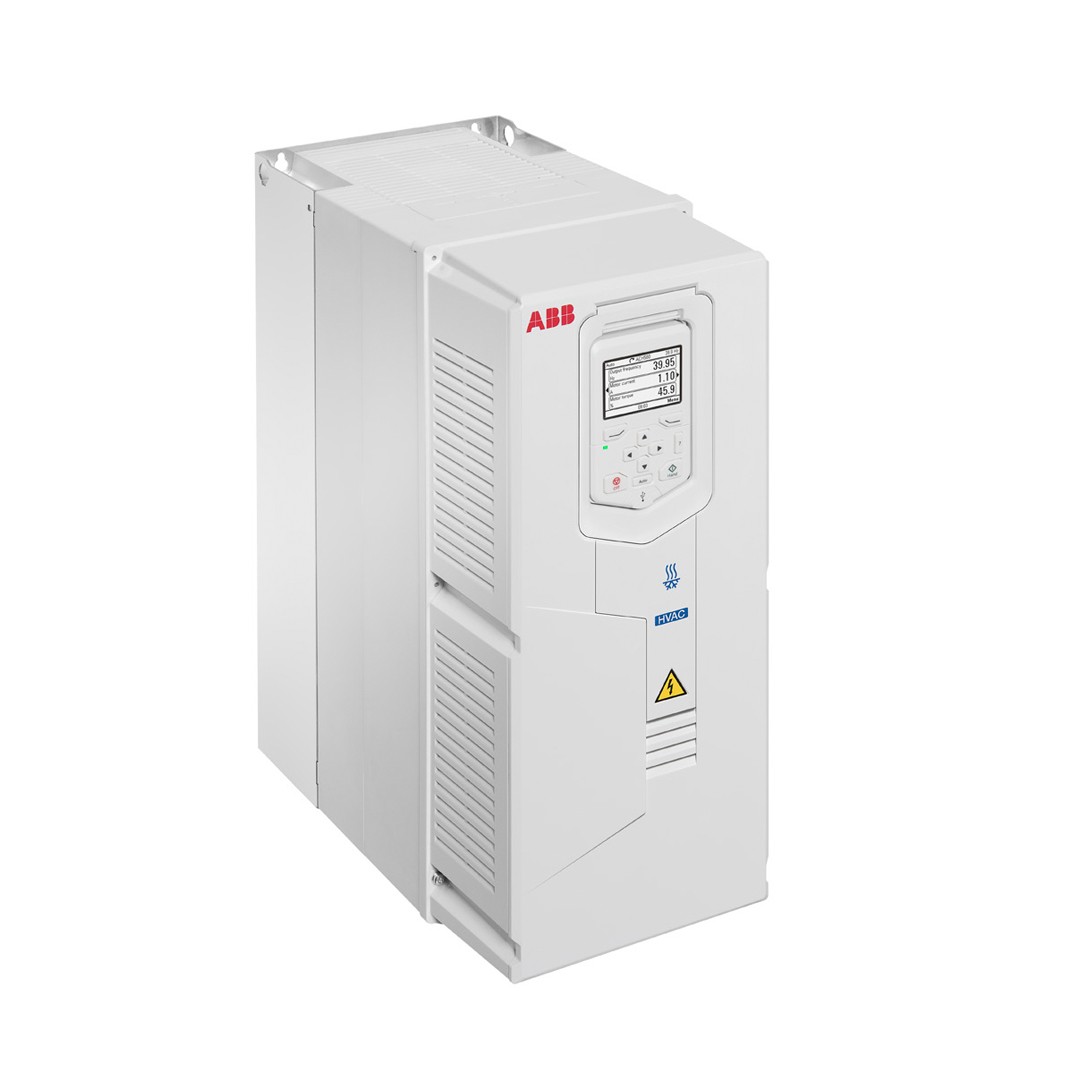

ABB VFD-ACH580-BCR-156A-4+F267 125HP HVAC Drive
Product Specifications:
Brand: ABB
Part Number: VFD-ACH580-BCR-156A-4+F267
Power Range: 1 to125 hp
Input voltage: 480V
Input voltage tolerance: +10% / -15%
Phase: 3-phase (1-phase, 240 V)
Power factor: 0.98 / 1.0
Efficiency at rated power: 98.0% / 96.5%
Frequency: 48 to 63 Hz
Supported motor control: Scalar and vector
Supported motor types: Asynchronous motor, permanent magnet motor (vector), SynRM (vector)
Degree of protection: UL (NEMA) Type 1, as standard / UL (NEMA) Type 12, as option / UL (NEMA) Type 3R, as option
Ambient conditions: -15 to +50 °C (5 to 122 °F): No frost allowed. Output derated above +40 °C (104 °F)
Communication extension modules Standard: BACnet MS/TP, Modbus RTU, Johnson Controls N2
Options: BACnet/IP, DeviceNet, Ethernet IP, PROFIBUS DP, LonWorks (Q3, 2019)
Compliance: UL
Features:
Simple to select, install and use
Integrated HVAC-specific features
Intuitive control panel with optional Bluetooth capability
Reliable connectivity with major automation and control systems
Based on ABB’s all-compatible drive platform
Safe maintenance and broad service offering
Harmonics are below the limits defined in IEEE519
Control connections: Two analog inputs, two analog outputs, six digital inputs including thermistor input, three
relay outputs, external 24 V DC supply input, USB via control panel
PC tools Drive composer tool entry, available for free via ABB website
Drive composer tool pro
Control panel options Hand-Off-Auto control panel (ACH-AP-H), as standard
Hand-Off-Auto control panel with Bluetooth (ACH-AP-W), as option
Control panels feature battery back-u
