Description

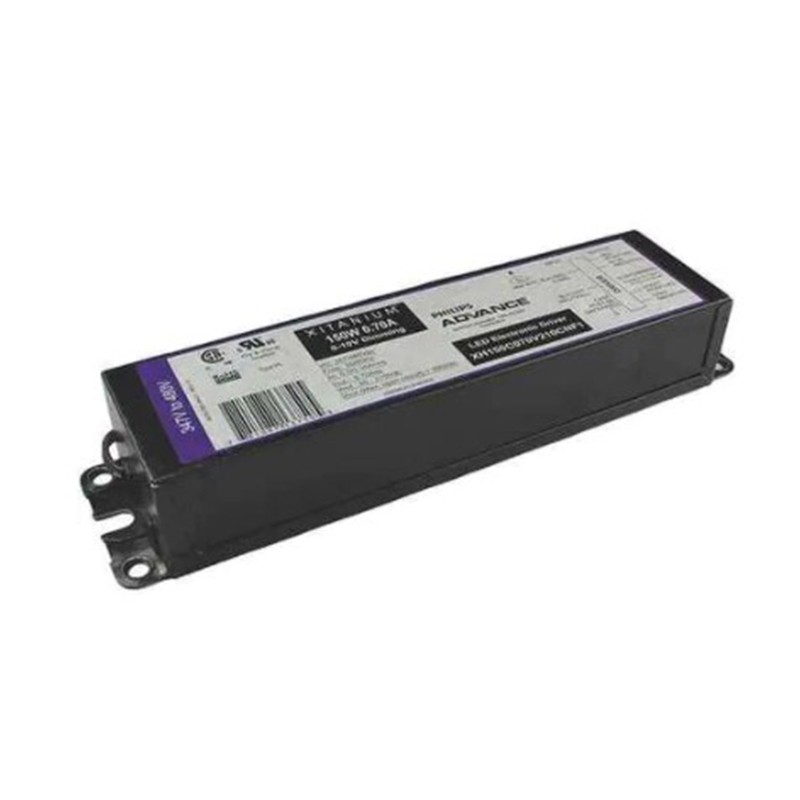

Advance XH150C070V210CNF1 LED Driver, 150W, 0.70 ADC, 347/480VAC
Product Specifications:
Brand: Philips
Part Number: XH150C070V210CNF1
Intended LED Usage: LED Fixture Array
Brand and Series: Xitanium
Input Voltage: 347 to 480V AC
Output Voltage: 60 to 210V DC
Input Current: 0.5/0.35AAC
Output Current: 0.7ADC
Input Power: 167 W
Power Output: 150W
Dimensions: 8 3/8″ x 2 5/16″ x 1 1/2″
Case Form Factor: Long
Profile: Standard Profile
Driver Class: Class 2
Driver Mounting Location: Within Fixture
Ballast Dimming: Yes
Dimming Method: 0-10V
Dimming Range: 100% to 10%
Dimming Type: Full Continuous Dimming
Ambient Temp. Range: -40 Degrees to 131 Degrees F
Max. Case Temp.: 176 Degrees F
Power Factor: Greater Than 0.95
Ouput Constant: Constant Current
Output Technology: Programmable
Total Harmonic Distortion: Max 15%
Environmental Rating: Damp Location, Dry Location
Standards: UL1012, UL879, UL935
For Use With: LED Lighting
Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition: UL Environment Claims Validated
