Description

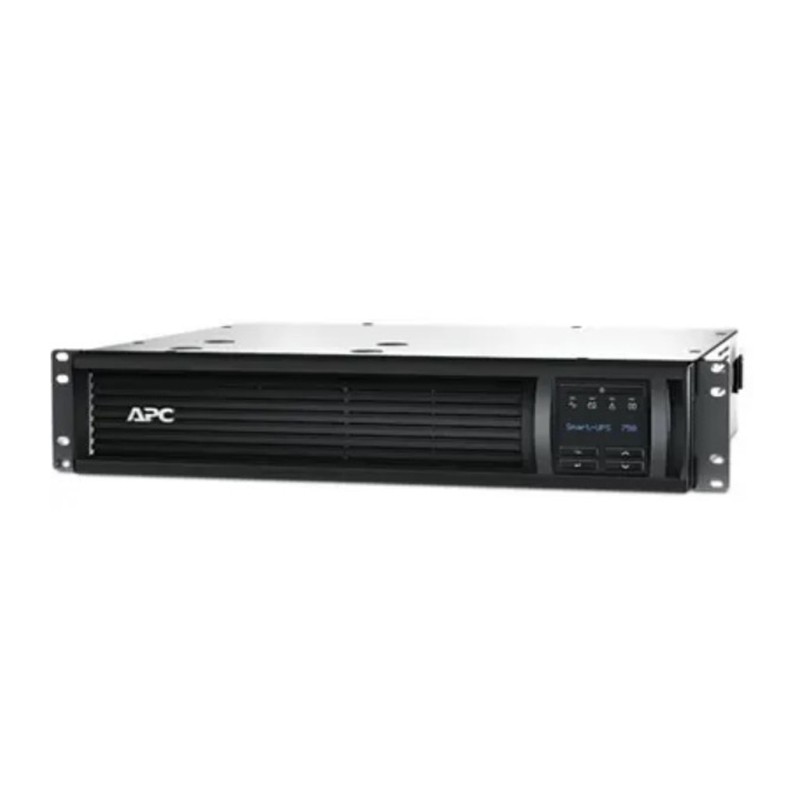

APC SMT1500RMI2U 1500VA / 1000W Smart-UPS
Product Specifications:
Brand: APC
Part Number: SMT1500RMI2U
Output power capacity: 1000Watts / 1.5 kVA
Max Configurable Power (Watts): 1000Watts / 1.5 kVA
Nominal Output Voltage: 230V
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion: Less than 5% at full load
Output Frequency (sync to mains): 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Other Output Voltages: 220, 240
Topology: Line Interactive
Waveform type: Sine wave
Output Connections: (4) IEC 320 C13 (Battery Backup) / (2) IEC Jumpers (Battery Backup)
Transfer Time: 2ms typical
Nominal Input Voltage: 230V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C14
Input voltage range for main operations: 160 – 286V
Input voltage adjustable range for mains operation: 151 – 302V
Number of Power Cords: 1
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3hour(s)
Replacement Battery: APCRBC132
Expected Battery Life (years): 4 – 6
RBC Quantity: 1
Interface Port(s): RJ-45 Serial , SmartSlot , USB
Control panel: Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO): Optional
Available SmartSlot™ Interface: 1
Surge energy rating: 459 Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Color: Black
Operating Temperature: 32 – 104 °F ( 0 – 40 °C )
Operating Relative Humidity: 0 – 95 %
Storage Temperature: -15 – 45 °C
Storage Relative Humidity: 0 – 95 %
Audible noise at 1 meter from surface of unit: 45.0dBA
Online thermal dissipation: 90.0BTU/hr
Approvals: CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE
RoHS Compliant
Standard warranty: 3 years repair or replace (excluding battery) and 2 year for battery
