Description

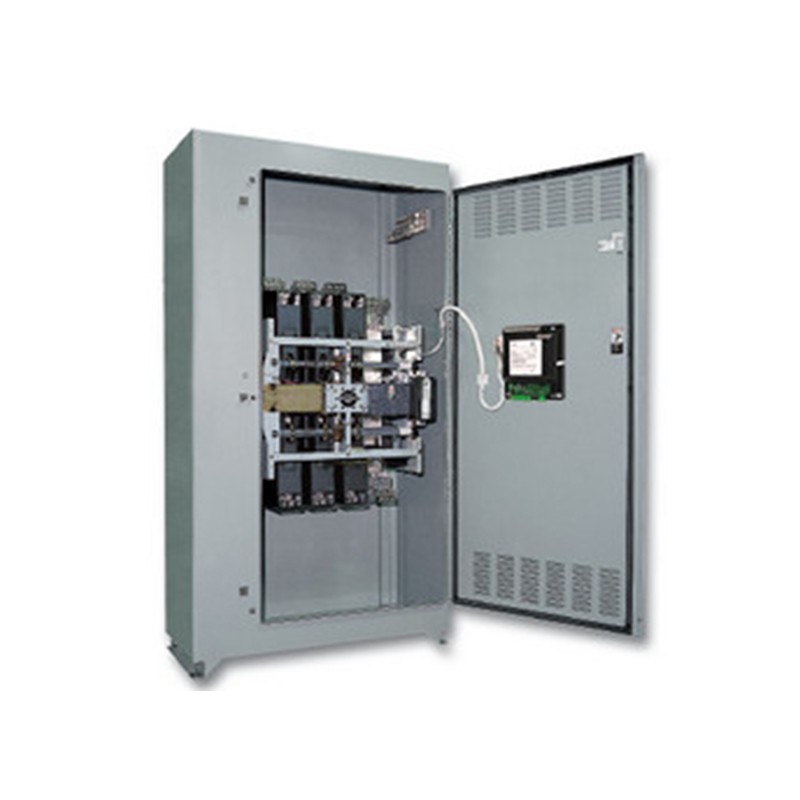

ASCO G03ATSA31600CG0C Automatic Transfer Switch, 3 Phase, 3 Pole, 120-208V, 1600A
Product Specifications:
Brand: ASCO
Part Number: G03ATSA31600CG0C
Type: Automatic Transfer Switch
Phase: 3
Number of Poles: 3
Voltage: 120-208V
Amperage: 1600
NEMA 1
Weight: 925 lbs
Dimensions: 24 × 38 × 87 in
Features:
True double throw operations with single solenoid design inherently interlocks to prevent contacts from stopping between sources or from being in contact with both the utility and emergency source simultaneously.
The ASCO 300 Series won’t transfer to a dead source because the solenoid receives its power from the source it is transferring to.
Easy to read flush mounted control and display panel shows switch position and source availability.
Standard weekly exerciser with or without load.
Adjustable time delay features.
Solid neutral termination standard with optional switched neutral available.
Flexible accessories like deluxe engine exerciser, strip heaters, and remote communication options.
