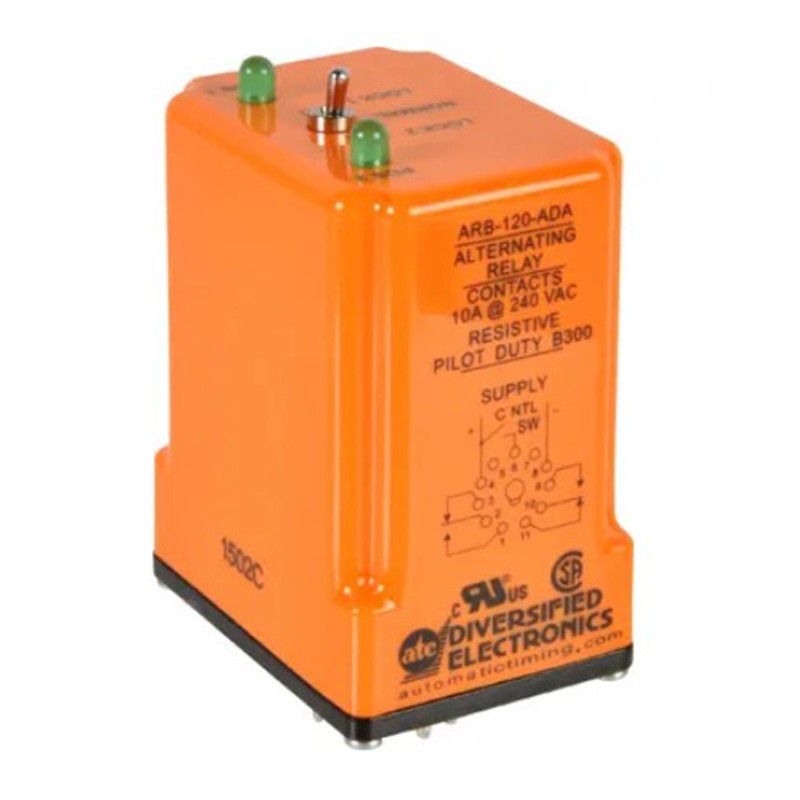

Name: ATC Diversified Electronics ARB-120-ADA 10A/120V 11-Pin Alternating Power Relay
SKU: ARB-120-ADA
Availability: InStock

ATC Diversified Electronics ARB-120-ADA 10A/120V 11-Pin Alternating Power Relay

$111.95

Duplexors are used in control panels where two loads are required to alternate, providing equal run time between the loads. The alternating action is initiated by a control switch, which is common with one side of the control voltage. The output contacts will change state each time the control switch is opened, which alternates the two loads

SKU # : ARB-120-ADA

List Price : $120.95

In stock

Compare

Description

ATC Diversified Electronics ARB-120-ADA 10A/120V 11-Pin Alternating Power Relay

Product Description:

Brand: ATC Diversified Electronics

Part Number: ARB-120-ADA

Coil Voltage: 120 VAC ; 120 VDC ; 110/115/120/125 VAC

Contact Current Rating: 10 A

Contact Form: DPDT

Contact Material: Silver Alloy

Contact Voltage Rating: 300 VAC

Control Voltage: 120

Current Rating: 10 A

Dimensions: 2.38 L x 1.75 W x 3 D in

Function: Alternating

Insulation Resistance: 1000 MegaOhms

Mounting Type: Socket Mount

Number of Pins: 11

Operating Temperature: -20 to +55 °C

Power Rating: 360 VA

Primary Type: Power Relays

Product Header: ARB Series Special Function Duplexer Relays

Relay Type: Electromechanical

Series: ARB Series

Standards: cULus ; CSA

Termination: 11-Pin Octal

Voltage Rating: 240 V
