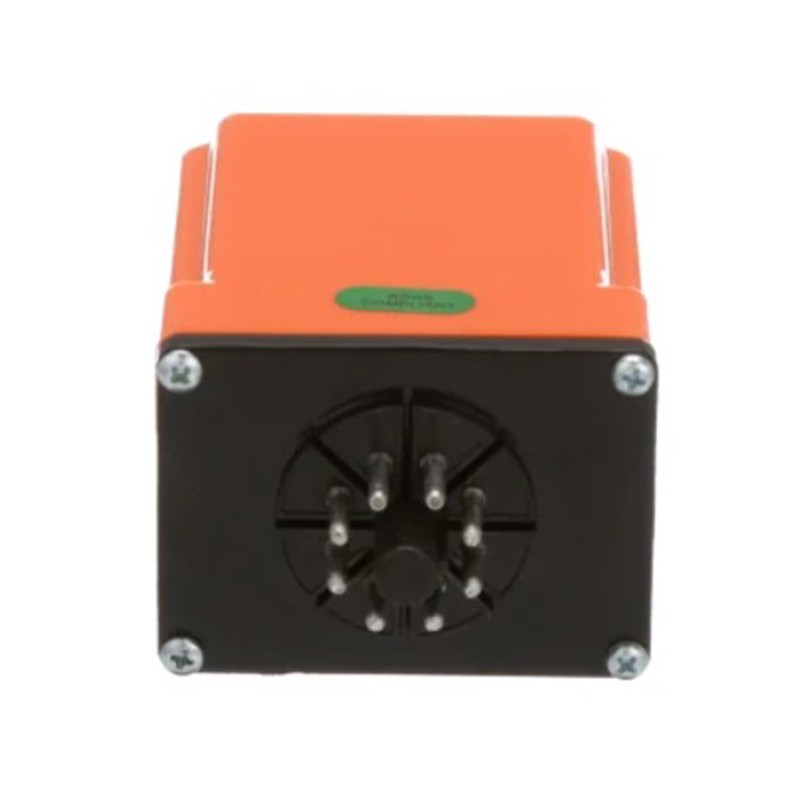

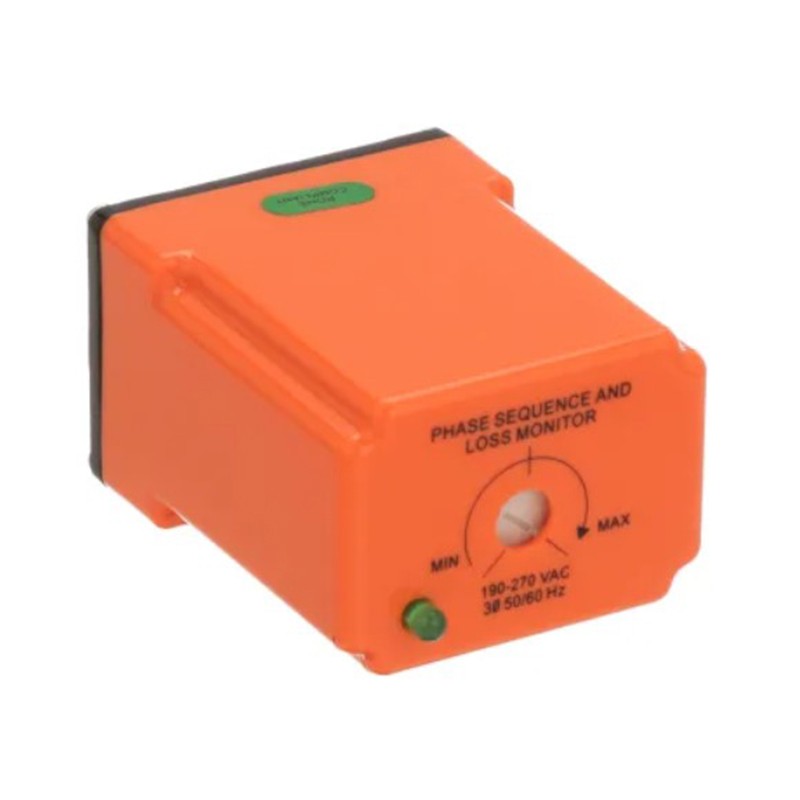

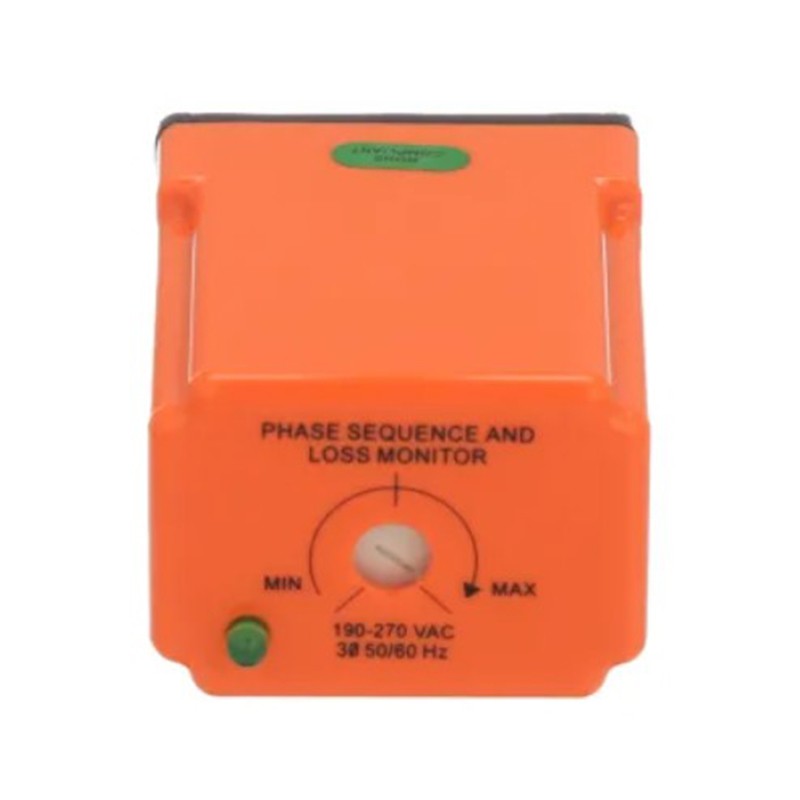

ATC Diversified Electronics SLA-230-ASA 190-270V Phase Monitoring Relay
Product Description:
Brand: ATC Diversified Electronics
Part Number: SLA-230-ASA
Contact Form: SPDT
Current Rating: 10 A
Dimensions: 2.28 L x 1.75 W x 3.10 D in
Dropout Voltage: 158-224 VAC(1P) ; 171-243 VAC(3P)
Function: Phase Monitor
Maximum Operating Temperature: 55 C
Minimum Operating Temperature: 0 °C
Monitoring Function: Phase Monitor
Mounting Type: Socketable
Number of Pins: 8
Power Rating: 345 VA
Primary Type: Monitoring Relays
Product Header: SLA Series Phase Loss-Under Voltage-Phase Sequence Monitor⁄Relay
Relay Type: Electromechanical
Series: SLA Series
Standards: cULus, UL, CSA
Supply Voltage: 190-270 V
Termination: 8-Pin Octal
Voltage Rating: 240 V
