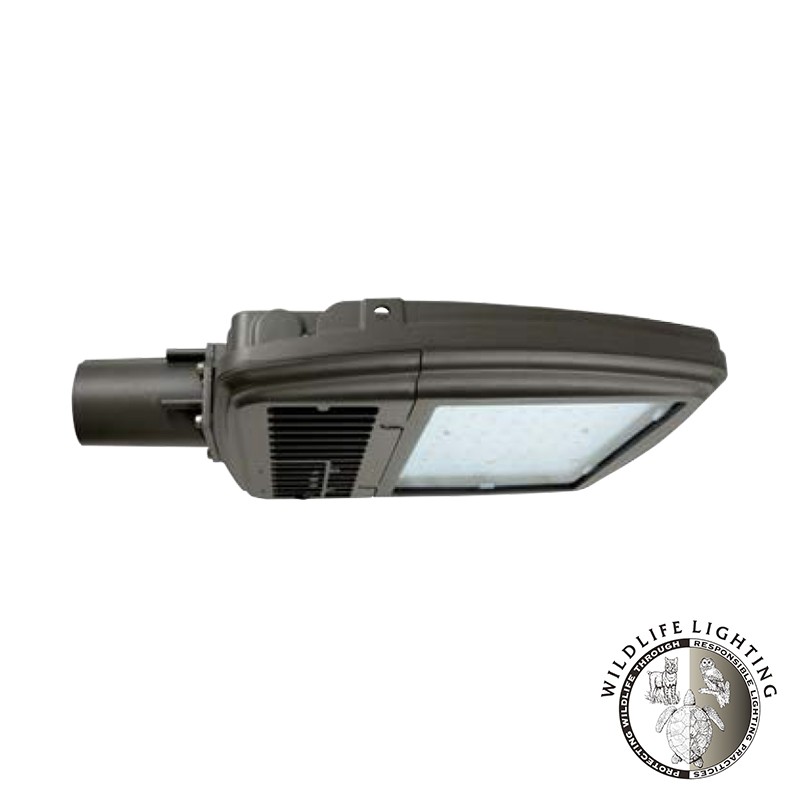

Atlantic Industrial AIKH15QF1X37 37W Amber Small Kitty Hawk Area Light
Product Specifications:
Brand: Atlantic Industrial
Part Number: AIKH15QF1X37
Housing: Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment.
Photocell Adaptable. Nickel-Plated Stainless Steel Hardware. Includes Full Baffle Required to
Maintain FWC Certification.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating.
Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens
Mounting Options: Mounts with Kitty Hawk Arm, 2⅜˝ Diameter Mounting Arm Adapter, or Easy Hang Wall Bracket
(Factory Installed).
Amber LED: Aluminum Boards
Wattage: 37w, System: 38.2w; (Up to 175w HID Equivalent.)
Lumens: 1738
Efficacy: 46 Lm/W
Driver: Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz (37w Model Only); Less Than 20% THD
and PF>0.90. Standard Internal Surge Protection is 2kV for 22w, 6kV for 37w. 0-10V Dimming
Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired
for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of
1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are
Tested with Atlantic Controls and May Not Function Properly With Controls Supplied By Others.
Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty: 5-Year Warranty for -40°C to +50°C Environment.
