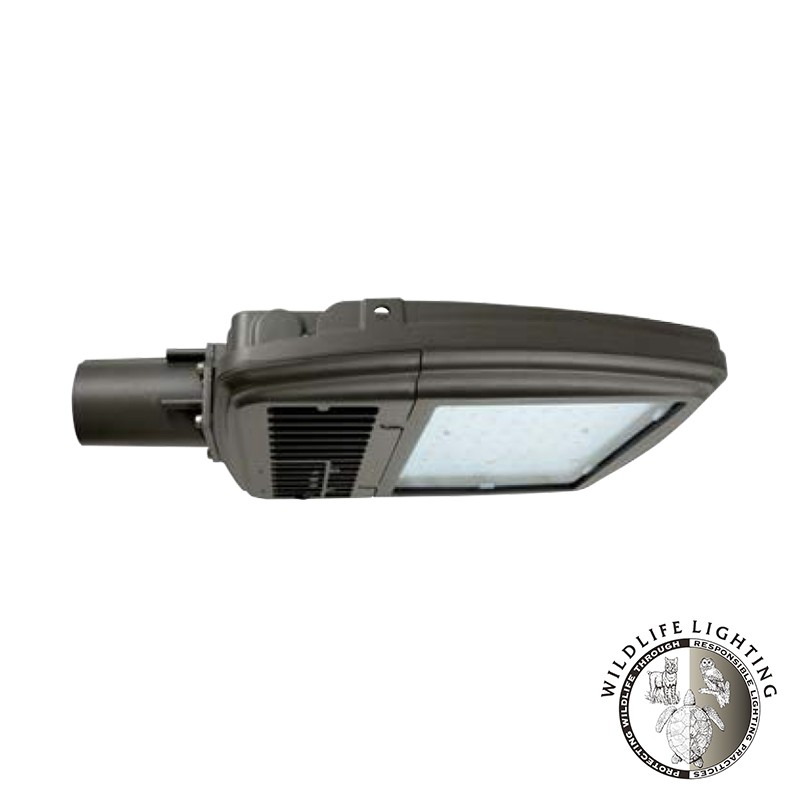

Atlantic Industrial AIKH25QF1X81 81W Amber Small Kitty Hawk Area Light
Product Specifications:
Brand: Atlantic Industrial
Part Number: AIKH25QF1X81
Housing: Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver
Compartment. Photocell Adaptable. Nickel-Plated Stainless Steel Hardware. Includes Full
Baffle Required to Maintain FWC Certification.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating.
Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens
Mounting Options: Mounts with Kitty Hawk Arm, 2⅜˝ Diameter Mounting Arm Adapter, or Easy Hang Wall
Bracket (Factory Installed).
Amber LED: Aluminum Boards
Wattage: 81w, System: 81.5w; (150-250w HID Equivalent.)
Lumens: 2607
Efficacy: 32 Lm/W
Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD
and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a
Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally
Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired
Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult
Factory. Fixtures are Tested with Atlantic Controls and May Not Function Properly With
Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage
Dimmers.
Warranty: 5-Year Warranty for -40°C to +50°C Environment
