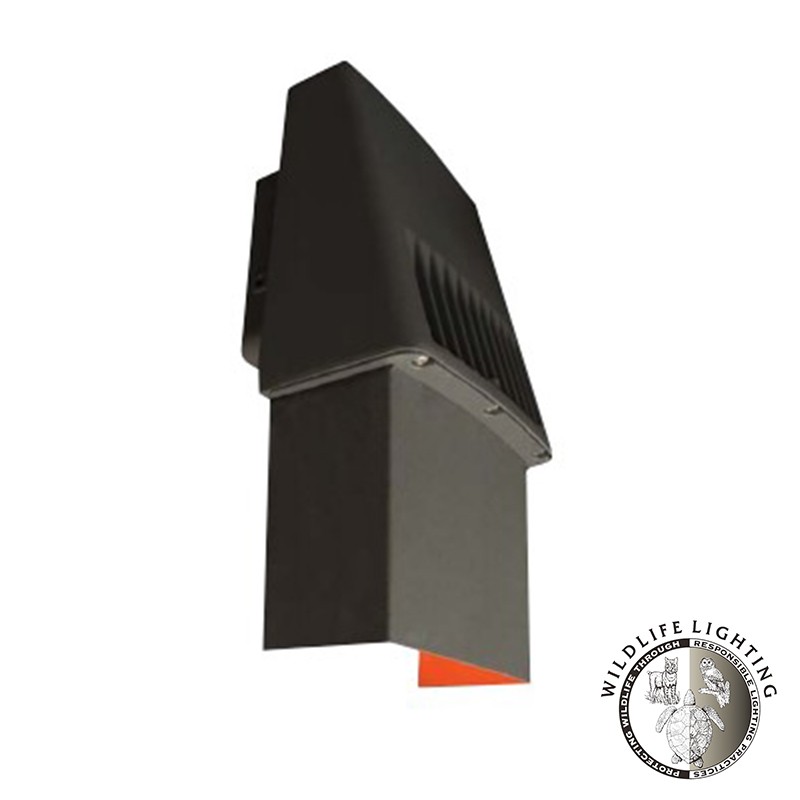

Atlantic Industrial AITV2C32X20 40W Amber Small 2Gen Slimline Wall Pack
Product Specifications:
Brand: Atlantic Industrial
Part Number: AITV2C32X20
Housing: Die-Cast Gasketed Aluminum Housing, Includes Cast-In Box Template and Built-in Level.
White Reflector. Nickel-Plated Stainless Steel Hardware. Includes Full Baffle Required to
Maintain FWC Certification.
Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment.
Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating.
Custom Colors Available Upon Request.
Lens: Tempered Clear Flat Glass Lens.
Mounting Options: Mount Directly Over Recessed Electrical Box or Use ½″ Surface Conduit.
COB LED: Cool Copper COB
Wattage: COB 40w, System Input 43w; (175w HID Equivalent)
Driver: Electronic Driver, 120-277V, 50/60Hz; 347-480V, 50/60Hz or 347V, 50/60Hz; Less
Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming
Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150
Microamps.
Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally
Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired
Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult
Factory. Fixtures are Tested with Atlantic Controls and May Not Function Properly With
Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage
Dimmers.
Warranty: 5-Year Warranty for -40°C to +50°C Environment.
