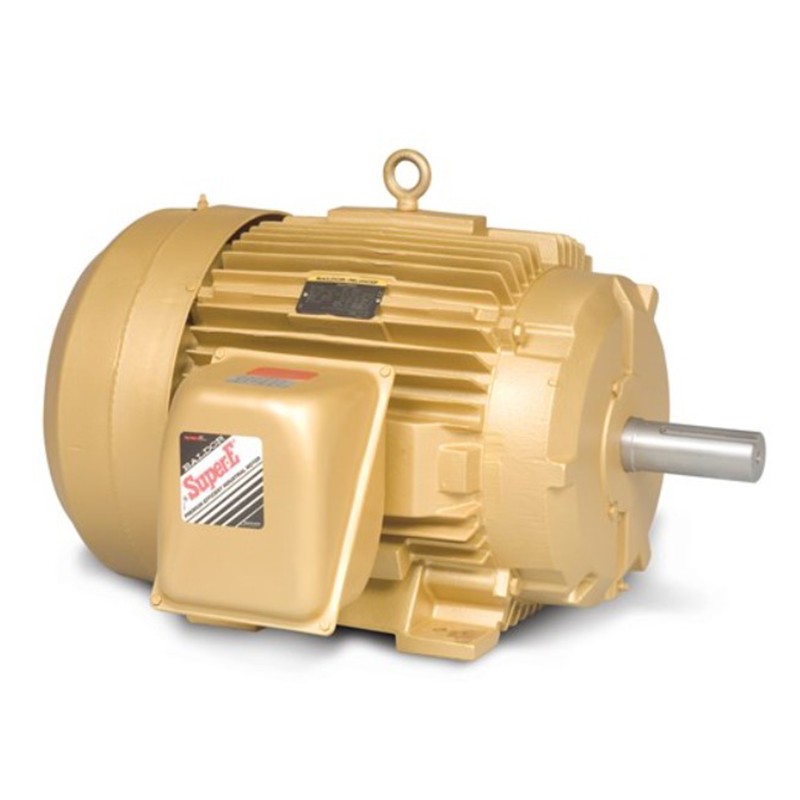

Baldor Reliance EM4310T 60HP, 3560RPM, 3PH, 60HZ Motor
Product Description:
Brand: Baldor Reliance
Part Number: EM4310T
Enclosure: TEFC
Frame: 364TS
Frame Material: Iron
Frequency: 60.00 Hz
Motor Letter Type: Three Phase
Output @ Frequency: 60.000 HP @ 60 HZ
Phase: 3
Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
Voltage @ Frequency: 460.0 V @ 60 HZ / 230.0 V @ 60 HZ
Agency Approvals: UR
Ambient Temperature: 40 °C
Base Indicator: Rigid
Bearing Grease Type: Polyrex EM (-20F +300F)
Current @ Voltage: 155.000 A @ 208.0 V
Design Code: B
Drip Cover: No Drip Cover
Duty Rating: CONT
Efficiency @ 100% Load: 95.0 %
High Voltage Full Load Amps: 65.1 a
Heater Indicator: No Heater
Insulation Class: F
Inverter Code: Inverter Ready
KVA Code: G
Lifting Lugs: Standard Lifting Lugs
Max Speed: 5400 rpm
Motor Lead Quantity/Wire Size: 3 @ 4 AWG
Motor Type: A3656M
Mounting Arrangement: F1
Number of Poles: 2
Overall Length: 31.36 IN
Power Factor: 91
Pulley End Bearing Type: Ball
Pulley Face Code: Standard
Service Factor: 1.15
Shaft Diameter: 1.875 IN
Shaft Rotation: Reversible
Speed: 3560 rpm
Speed Code: Single Speed
Motor Standards: NEMA
Starting Method: Direct on line
