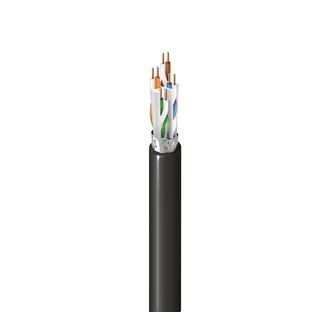

Brand: Belden
Part Number: 10GX52F
Suitable Applications: Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments
CONDUCTOR
Size: 23 AWG
Stranding: Solid
Material: BC – Bare Copper
Number of Pairs: 4
INSULATION
Material: PO – Polyolefin
Color Code: White & Blue, White & Orange, White & Green, White & Brown
OUTER SHIELD
Shield Type: Tape
Material: Bi-Laminate (Alum+Poly)
Coverage: 100%
Drainwire Type: 26 AWG (7×34) TC
OUTER JACKET
Separator: Center Member (Patented EquiSpline®)
Material: PVC – Polyvinyl Chloride
Nom. Diameter: 0.275 in (6.99 mm)
Ripcord: Yes
UL Voltage Rating: 300 V (CMR), 300 V (CL3R)
UL Temperature:  90°C
Installation: 0°C To +50°C
Operating: -20°C To +75°C
Storage: -20°C To +75°C
