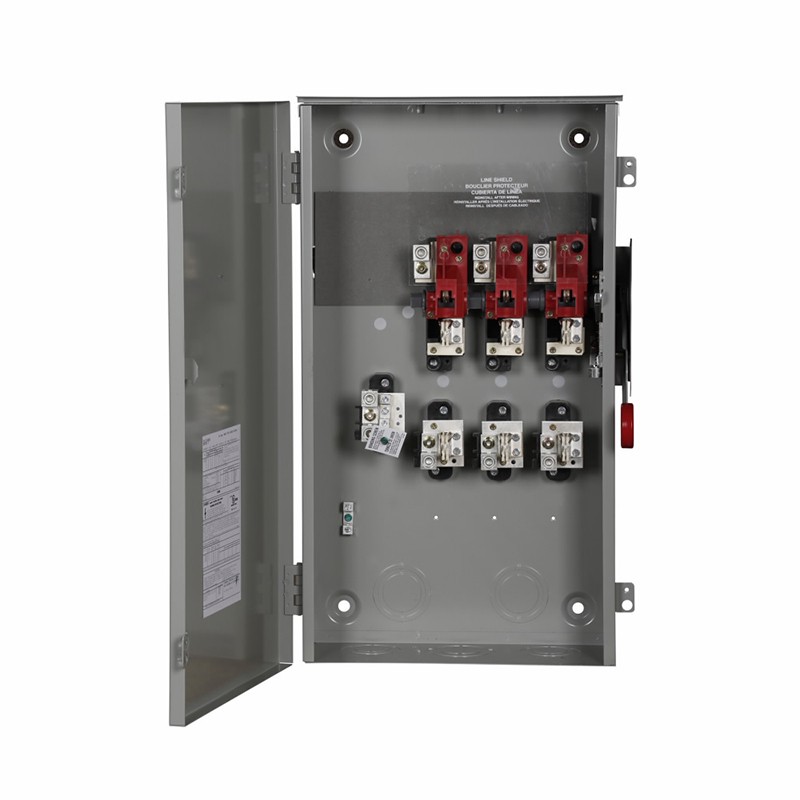

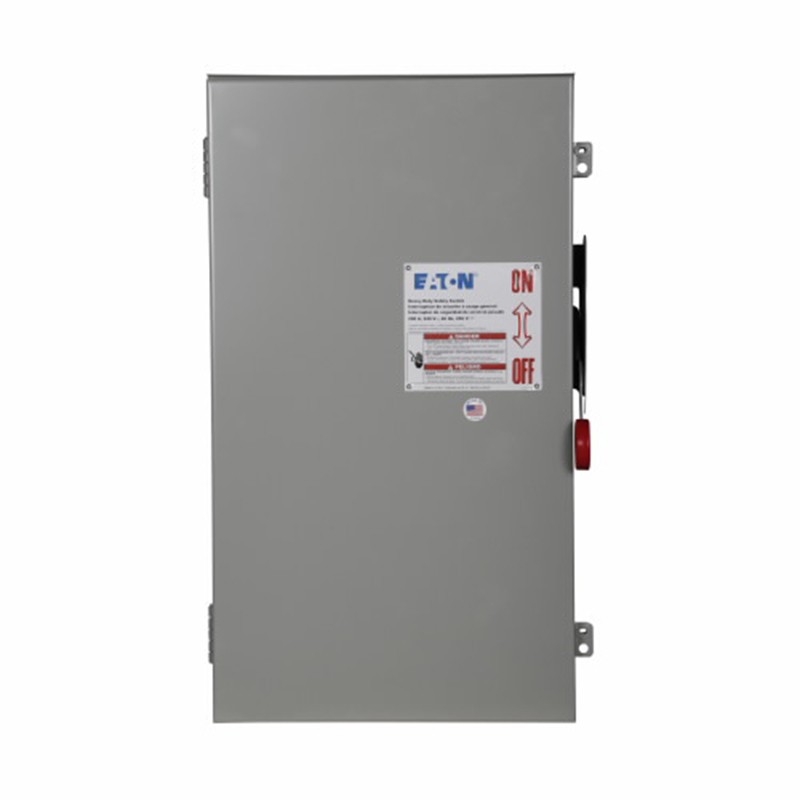

EATON DH324NRK 200 A Enhanced Visible Blade Single-Throw Safety Switch
EATON DH324NRK 200 A Enhanced Visible Blade Single-Throw Safety Switch

EATON DH324NRK 200 A Enhanced Visible Blade Single-Throw Safety Switch

$949.95

Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Painted galvanized steel, Class H, Neutral, Three-pole, Four-wire, 240 V, #6-250 kcmil Cu/Al

SKU # : DH324NRK

List Price: $999.95

In stock

Add to wishlist
Compare
SKU: DH324NRK Categories: , Tags: , , , , , ,
Eaton

Description

EATON DH324NRK 200 A Enhanced Visible Blade Single-Throw Safety Switch

Product Specifications:
Brand: EATON
Part Number: DH324NRK
Enclosure: NEMA 3R
Amperage Rating: 200A
HP Rating: 15 at 240 Vac Std. 1 Ph, 25 at 240 Vac Std. 3 Ph, 15 at 240 Vac TD 1 Ph, 60 at 240 Vac TD 3 Ph, 40 at 250 Vdc
Voltage: 240V
Enclosure Material: Painted galvanized steel
Class: Class H
Fuse Configuration: Fusible with neutral
Number of Poles: Three-pole
Wires: 4
Type: Heavy duty fusible safety switch
Wire Size: #6 AWG-250 kcmil Cu/Al
Dimensions: 10 x 28.12 x 15.52in
UL Listed
1 Year Warranty

Brand

Eaton

Eaton

Reviews

There are no reviews yet.
