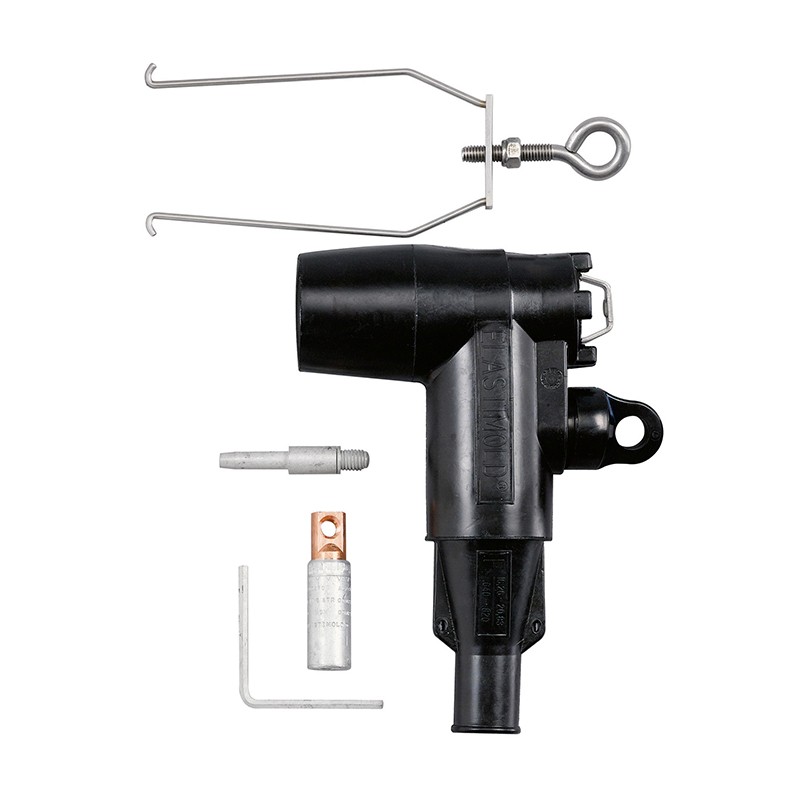

Elastimold 156LR-G-5250 200A Insulated Deadbreak Elbow Connector With Test Point

Elastimold 156LR-G-5250 200A Insulated Deadbreak Elbow Connector With Test Point

$115.95

200 A dead break connectors and accessories provide a quick disconnect feature for cable and equipment connections on power distribution systems. All dead break connectors must be DEENERGIZED before operating and must be mechanically secured with bails when connected. Components can be isolated with insulated caps, plugs and parking bushings.

SKU #: 156LR-G-5250

List Price: $ 125.95

In stock

Add to wishlist
Compare
SKU: 156LR-G-5250 Categories: , , , Tags: , , , , , , ,
Elastimold

Description

Elastimold 156LR-G-5250 200A Insulated Deadbreak Elbow Connector With Test Point

Product Specifications:
Brand: Elastimold
Part Number: 156LR-G-5250
Amperage Rating: 200 A
Type: Insulated
Insulation Diameter: 0.76 to 0.95 in
Voltage Rating: 15/25 kVAC
Material: EPDM Rubber
Series: 156LR
Color: Black
Conductor Size: 2/0 AWG, 3/0 AWG
Conductor Type: Compressed Stranded/Compacted Solid Bi-Metal
Dimensions: 8.58 in W
