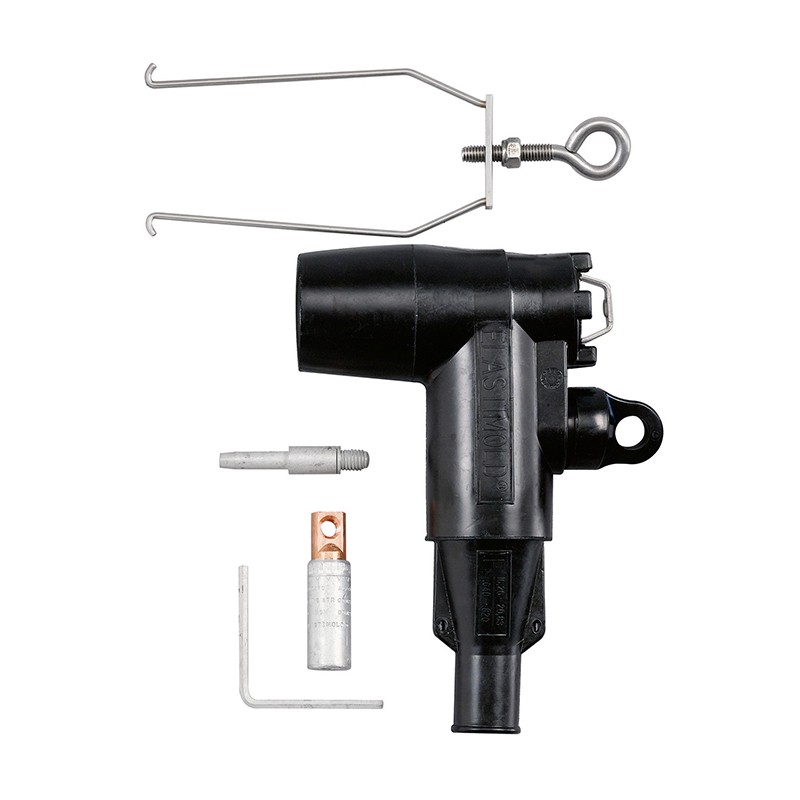

Elastimold 156LR-H-5270 200A Insulated Deadbreak Elbow Connector With Test Point

Elastimold 156LR-H-5270 200A Insulated Deadbreak Elbow Connector With Test Point

$115.95

200 A dead break connectors and accessories provide a quick disconnect feature for cable and equipment connections on power distribution systems. All dead break connectors must be DEENERGIZED before operating and must be mechanically secured with bails when connected. Components can be isolated with insulated caps, plugs and parking bushings.

SKU #: 156LR-H-5270

List Price: $ 125.95

In stock

Add to wishlist
Compare
SKU: 156LR-H-5270 Categories: , , , Tags: , , , , , , ,
Elastimold

Description

Elastimold 156LR-H-5270 200A Insulated Deadbreak Elbow Connector With Test Point

Product Specifications:
Brand: Elastimold
Part Number: 156LR-H-5270
Amperage Rating: 200 A
Type: Insulated
Insulation Diameter: 0.85 to 1051 in
Voltage Rating: 15/25 kVAC
Material: EPDM Rubber
Series: 156LR
Color: Black
Conductor Size: 4/0 AWG, 250 kcmil
Conductor Type: Compressed Stranded/Compacted Solid Bi-Metal
Dimensions: 8.58 in W
