Description

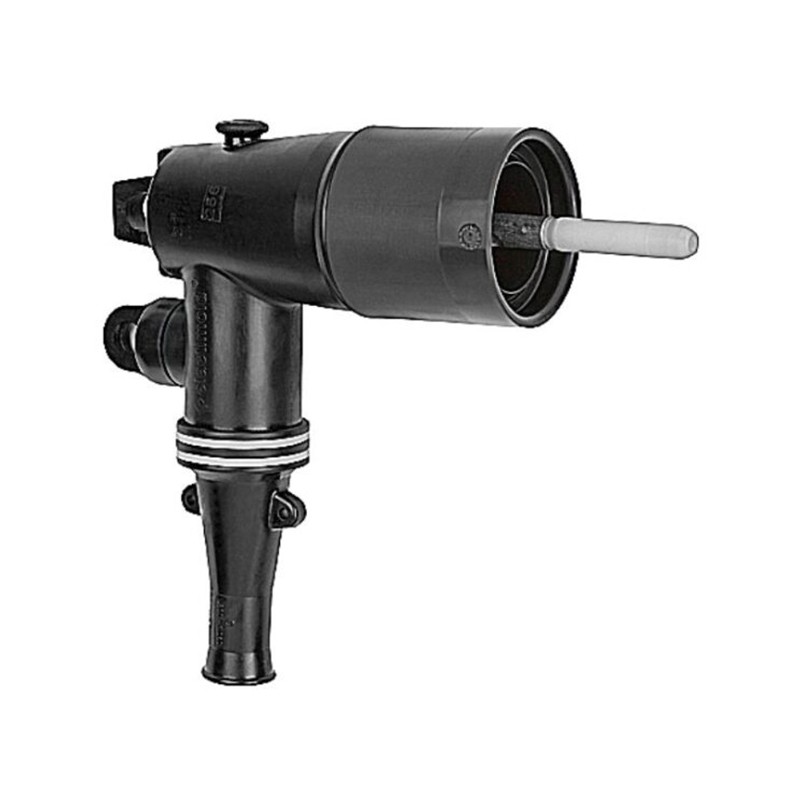

Elastimold 162LR-B5220 15kV 200 Amp, Loadbreak Elbow Connector.
Product Description:
Brand: Elastimold
Part Number: 162LR-B5220
Temperature Range: -40°C to 65°C
Standard: ANSI/IEEE Standard 386
Conductor Range: #2 Stranded Wire Size.
Material: EPDM Rubber
Voltage Rating: 15kV
Amperage Rating: 200 Amps
Insulated
Weight: 2.12 lbs
Features:
15kV, 200 Amp Loadbreak Elbow
Fully shielded, fully submersible molded rubber housing
100% peroxide-cured construction includes insulation and conductive EPDM materials
Provision for hot stick operation
Provision for ground wire connection
Wide cable range with minimum number of sizes
Long bi-metal compression lug is standard
Non-corrosive capacitive test point
