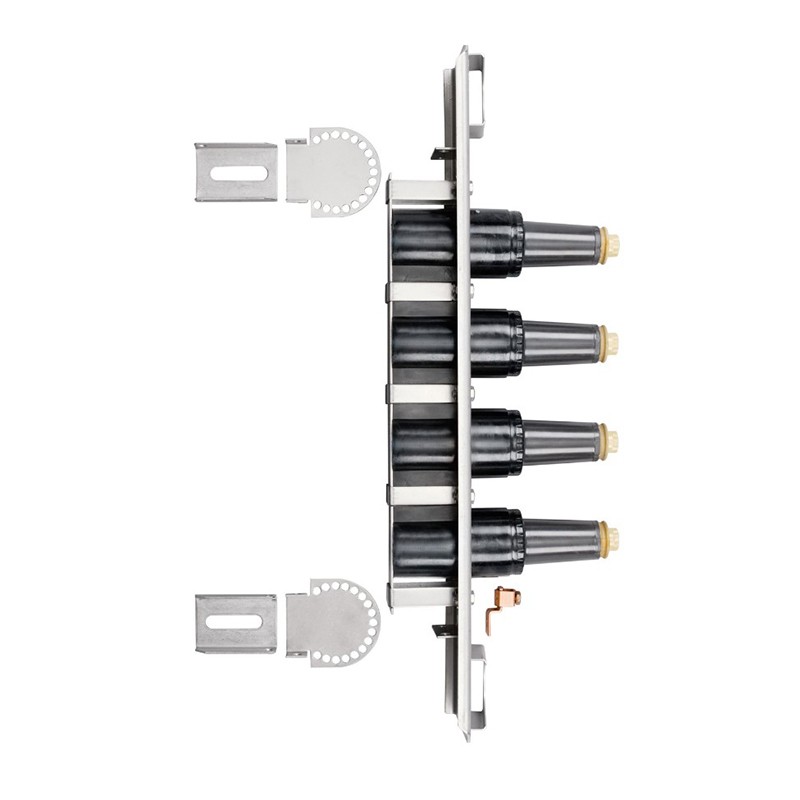

Elastimold 373J4 35kV 200 Amp, Loadbreak 4-Point Junction

Elastimold 373J4 35kV 200 Amp, Loadbreak 4-Point Junction

$2,279.95

35kV, 200 Amp Loadbreak 4-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions. Rated for 3 Phase switching. Includes black vent ring

SKU # : 373J4

List Price: $2,380.95

In stock

Add to wishlist
Compare
SKU: 373J4 Categories: , , Tags: , , , , , , ,
Elastimold

Description

Elastimold 373J4 35kV 200 Amp, Loadbreak 4-Point Junction

Product Specifications:
Brand: Elastimold
Part Number: 373J4
Amperage: 200A
Approximate Weight: 21.51
Material: EPDM Rubber with Stainless Steel Bracket
Standard: ANSI/IEEE 386
Temperature Rating: -40 to +65 C
Application: Designed for subsurface,vault or padmount applications and can be used for sectionalizing,looping,tapping,and equipment bypass.
Trade Size : 4.00 inch (101.6 mm) Center to Center, 9.6 inch (243.8 mm) High, 3.60 inch (91.4 mm) wide
Type: 4-Point Junction
