Description

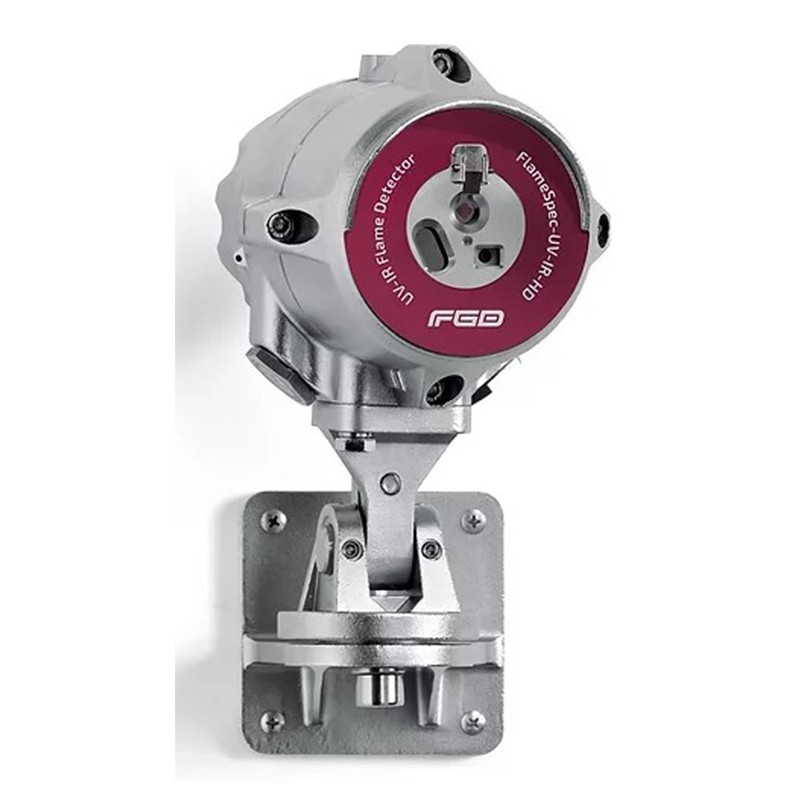

FGD FLS-UV-IRAS21 UV-IR Flame Detector
Product Specifications:
Brand: FGD
Part Number: FLS-UV-IRAS21
High immunity to False Alarm.
Hydrocarbon and non-hydrocarbon flame detection.
High sensitivity – up to 100 ft. (30m) for a 1 ft2 (0.1m2) n-heptane fire.
Ultra-fast detection within 5 milliseconds for fireballs or explosions.
High speed (<0.5s) model [X5] available for compliance with NFPA 33.
HD or composite video output with automatic recording of fire events.
Data/Event logger: Alarms, faults & videos as well as other relevant events are logged to non-volatile memory.
Universal outputs, 3 and 4 wire, 4-20 mA sink / source, Fire, Auxiliaryand Fault Relays. RS485 port using Modbus RTU.
Built-in-Test (BIT) – Automatic and manual self-test of windowcleanliness and overall detector operation.
Additional dirty optics warning for preventive maintenance needs.
HART® 7, for configuration & maintenance – option available.
Window heater to avoid condensation and icing.
Stainless steel tilt mount with horizontal and vertical adjustment.
SIL 2 capable – option available.
Detect high UV (sparks and arcs) or IR levels via auxiliary relay and 4-20mA.
