Description

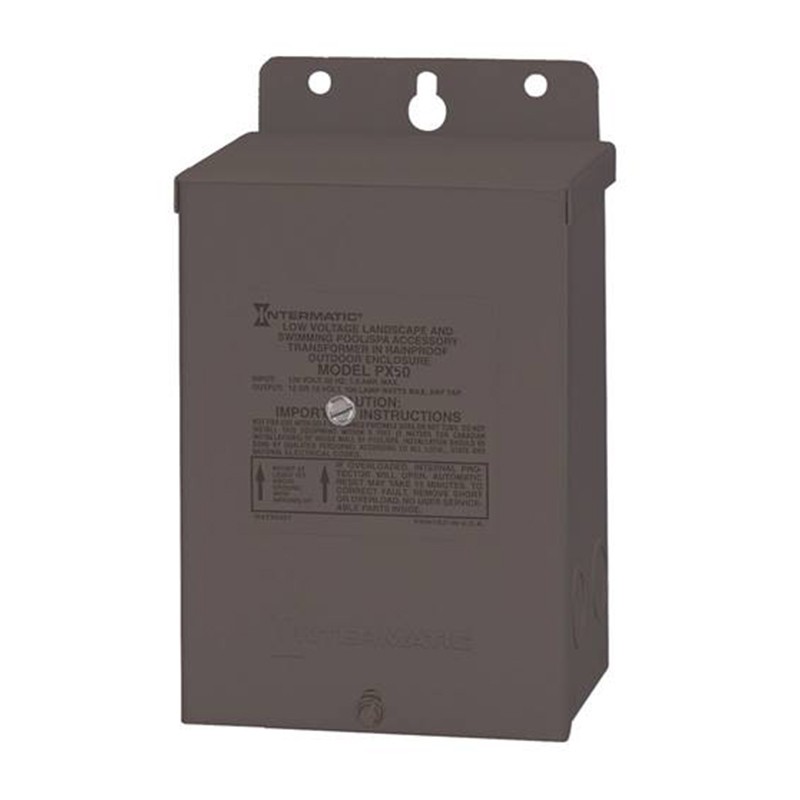

Intermatic PX50S Safety Transformer
Product Specifications:
Brand: Intermatic
Part Number: PX50S
Enclosure Type: 3R Brown Stainless Steel
Input Voltages: 0.5 A, 120 VAC, 60 Hz
Knockout Dimensions Back/Side: (2) combination 1/2″ – 3/4″
Knockout Dimensions Bottom: (4) combination 1/2″ – 3/4″
Knockout Dimensions Left: (2) combination 1/2″ – 3/4″
Knockout Dimensions Right: (2) combination 1/2″ – 3/4″
Maximum Power Consumption (W): 50 W
Other Certifications and Compatibilities: NEC Code 680.23
Output Voltages: 12 VAC, 13 VAC, 14 VAC
Product Depth (in): 4.5
Product Depth (mm): 114.3
Product Height (in): 7.25
Product Height (mm): 184.2
Product Width (in): 5.25
Product Width (mm): 133
Transformer Input Voltage: 0.5 A, 120 VAC, 60 Hz
Transformer Output Voltage: 12, 13, 14 VAC
Transformer (W): 50
Warranty: 1-Year limited
Features:
Mounting brackets on the top and bottom
Built-in circuit protection disconnects power temporarily in case of overload
Complies with NEC Code 680.23 requirements for underwater luminaries
Applications:
LED Pool Lights
Submersible Fixtures
Outdoor Landscape
Decorative Lighting
