Description

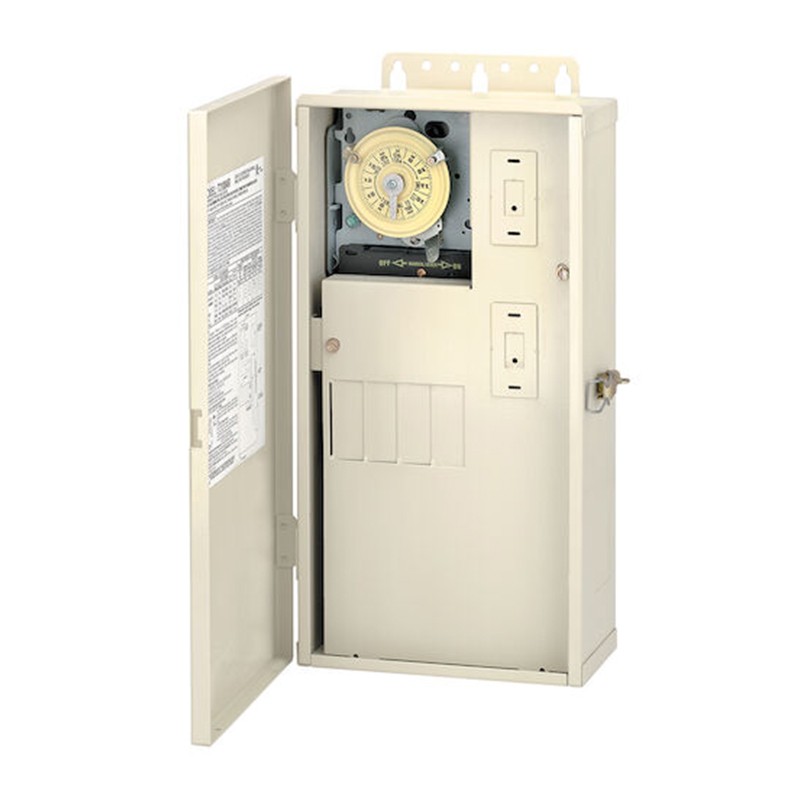

Intermatic T21001R 60 A Load Center with T101M Mechanism, 4-Breaker Spaces
Product Specifications:
Brand: Intermatic
Part Number: T21001R
Inductive Load Ratings: 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Knockout Dimensions Back/Side: (1) combination 1/2″ – 3/4″ and (1) 3/4″ – 1″
Knockout Dimensions Bottom: (5) combination 1/2″ – 3/4″ and (3) combination 3/4″ – 1″
Knockout Dimensions Left: (1) combination 1/2″ – 3/4″
Knockout Dimensions Right: (1) 1 3/4″ x 2 3/4″
Maximum Power Consumption: 3W
Motor: 2 HP, 24 FLA, 120 VAC, 60 Hz / 5 HP, 28 FLA, 240 VAC, 60 Hz
Number of Circuits: 1
Pilot Duty: 1000 VA, 120-240 VAC, 60 Hz
Resistive: 40 A, 120-240 VAC, 60 Hz
Switch Type: SPST
Tungsten: 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Dimensions: 4.75″ x 16.875″ x 8.875″
Warranty: 1-Year
Accepts many interchangeable type breakers
Load center dead front has two knockouts for switches or GFCIs and one on the side
Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
Applications:
Pool and Spa Equipment
Lights
