Description

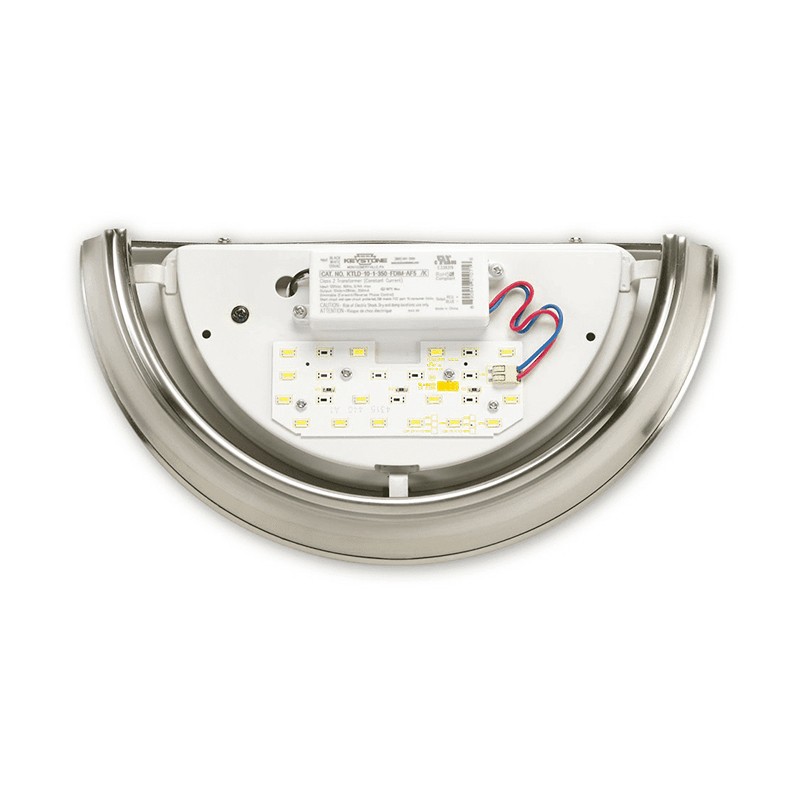

Keystone KT-RKIT-HCP-8-650-850-FDIM/G2 8in 7W Sconce LED Retrofit 5000K Gen 2
Product Specifications:
Brand: Keystone
Part Number: KT-RKIT-HCP-8-650-850-FDMI/G2
Watts: 7W
Lumens: 700
Lumens Per Watt: 127 Lm/W
Volts: 120V
Color Temperature: 5000K
Total System Drive Current: 350mA
Driver Efficiency: 80%
For Use in Class 2 Lighting Systems
Low Profile WAGO Push Connectors
UL Recognized Components
Single-Sided CEM3 Substrate
3-Step MacAdam Color Binning
LM80 Tested LEDs by Samsung
Beam Angle: 120º
Reported Life Expectancy: L70 > 36,000 hours at Tc <85ºC
Calculated Life Expectancy: L70 = 93,000 hours at Tc <85ºC
Maximum Board Temperature at Tc Point: 85ºC
120-277V Input, High Power Factor, Phase Control Dimming
High Power Factor
UL 8750 Recognized Component LED Power Unit
Meets FCC Part 15 Class B (Consumer) Limit for EMI
Over Current, Short Circuit, and Open Circuit Protection
Class 2 Output
Warranty: 5 Years
Type 1 Outdoor, Suitable for Dry and Damp Locations
Up to 194ºF/90ºC Maximum Case Temperature
THD: <20%
Warranty: 5 Year
