Description

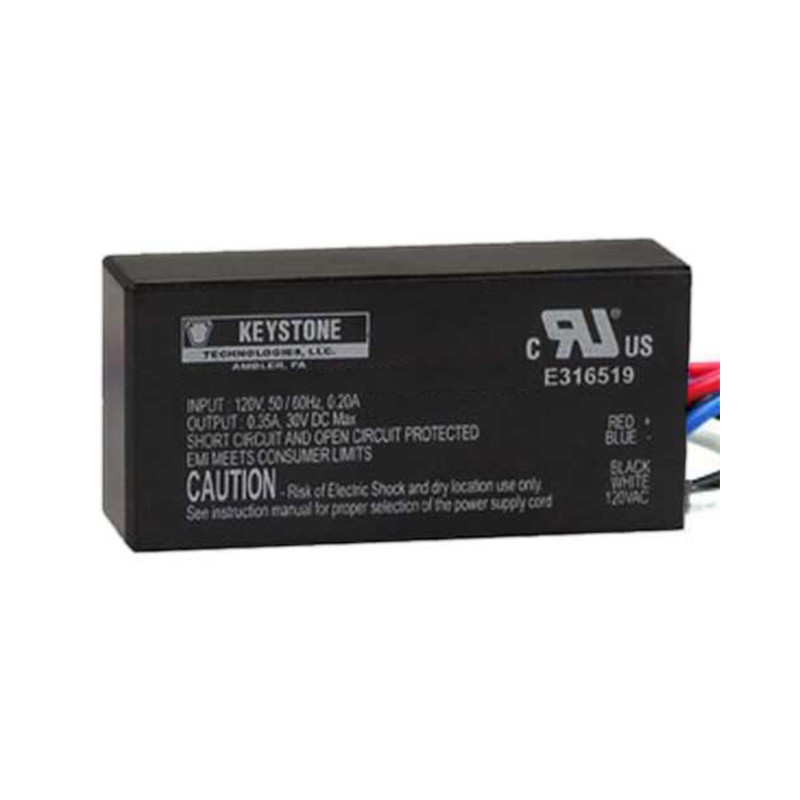

Keystone KTLD-10-1N-300-F3 10W Constant Current LED Driver
Product Specifications:
Brand: Keystone
Part Number: KTLD-10-1N-300-F3
Constant current LED driver
Total power: 10W
Input voltage: 120~277Vac ± 10%
Number of outputs: One
Operating Temperature: -30 to 60°C
Output Current: 300mA
Output Voltage: 6-33V
Efficiency: 77%
Input voltage range: 120Vac ± 10%
Storage temperature: -40 to 85°C
Frequency: 50/60Hz
Humidity: 5% to 95%
Power factor: >0.5 @full load
MTBF: 583,000 hours at 40°C ambient (~70°C Case temp)
Inrush current: 20A @120V
Maximum case Temperature: 90°C
Max input current: 0.22A @120V
THD: <200%
Protection: Over voltage, Over current and Short circuit
Withstand voltage: I/P – O/P 2k Vac
UL 8750
IP20 design for dry and damp location
5 year warranty
