Description

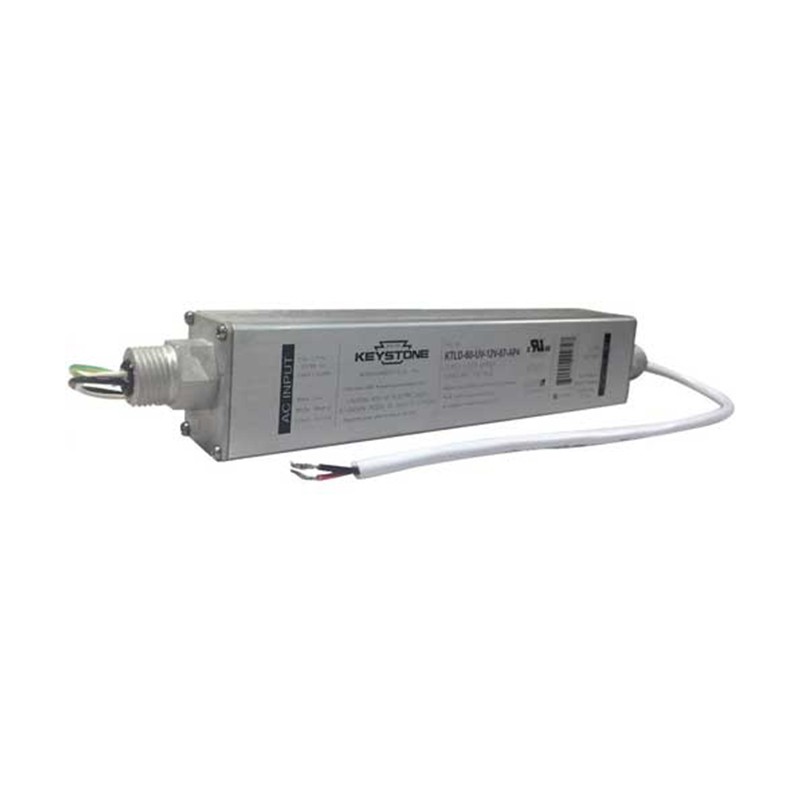

Keystone KTLD-60-UV-12V-67-AP4 60W Constant Voltage LED Driver
Product Specifications:
Brand: Keystone
Part Number: KTLD-60-UV-12V-67-AP4
Constant Voltage LED Driver
Max. Output Power: 60 W
Input Voltage: 120-277Vac ±10%
Output Voltage: 12 Vdc
Power Factor: >0.9
Max Current: 0.66A @ 120V; 0.29A @ 277V
Efficiency: 86%
Dimming: Fixed Output
Meets FCC Part 15 Class B (Consumer Limit) at 120V Input and Class A (Non-Consumer Limit) at 277V Input
Over Current and Short Circuit Protection
Type 1 Outdoor, Suitable for Wet Locations
UL 8750 Recognized Component LED Power Unit
Class 2 Output
90ºC/194ºF Maximum Case Temperature
Input Frequency: 50/60 Hz
IP 67 Rated: Waterproof
Threaded Nipple on Ends for Easy Fit with Junction Boxes
Listed in the Sign Component Manual (SAM)
5-year warranty
