Description

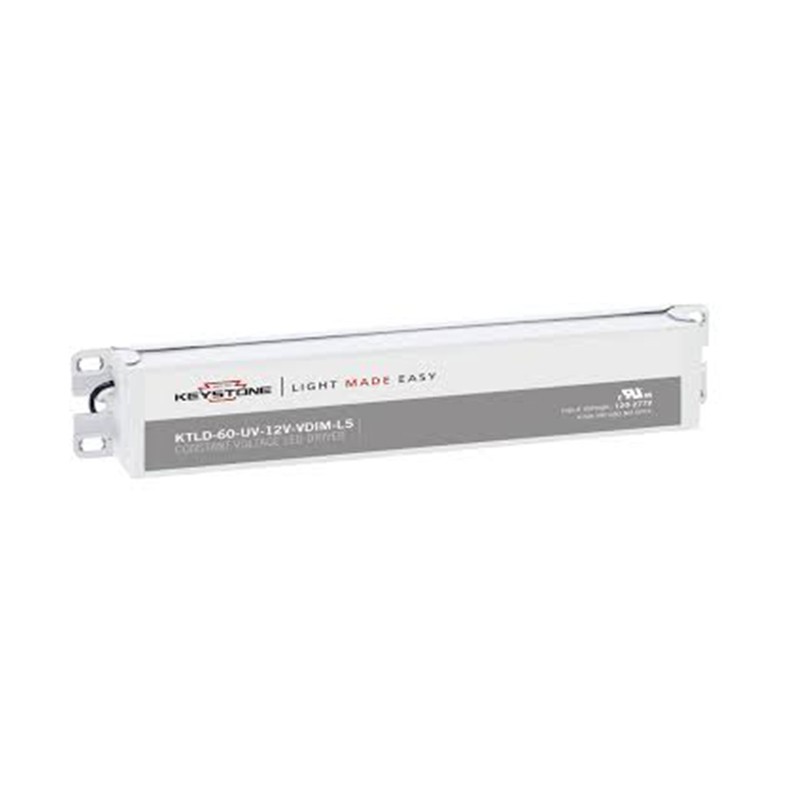

Keystone KTLD-60-UV-12V-VDIM-L5 60W Constant Voltage LED Driver
Product Specifications:
Brand: Keystone
Part Number: KTLD-60-UV-12V-VDIM-L5
Constant Voltage LED Driver
Max. Output Power: 60 W
Input Voltage: 120-277Vac ±10%
Output Voltage: 12 Vdc
Power Factor: >0.9
Max Current: 0.65A @ 120V; 0.29A @ 277V
Efficiency: 80%
Dimming: 0-10V
Meets FCC Part 15 Class B (Consumer Limit) at 120V Input and Class A (Non-Consumer Limit) at 277V Input
Over Current and Short Circuit Protection
Type 1 Outdoor, Suitable for Wet Locations
UL 8750 Recognized Component LED Power Unit
Class 2 Output
-30ºC/-22ºF to 60ºC/140ºF Operating Temperature
80ºC/176ºF Maximum Case Temperature
Input Frequency: 50/60 Hz
5-year warranty
