Description

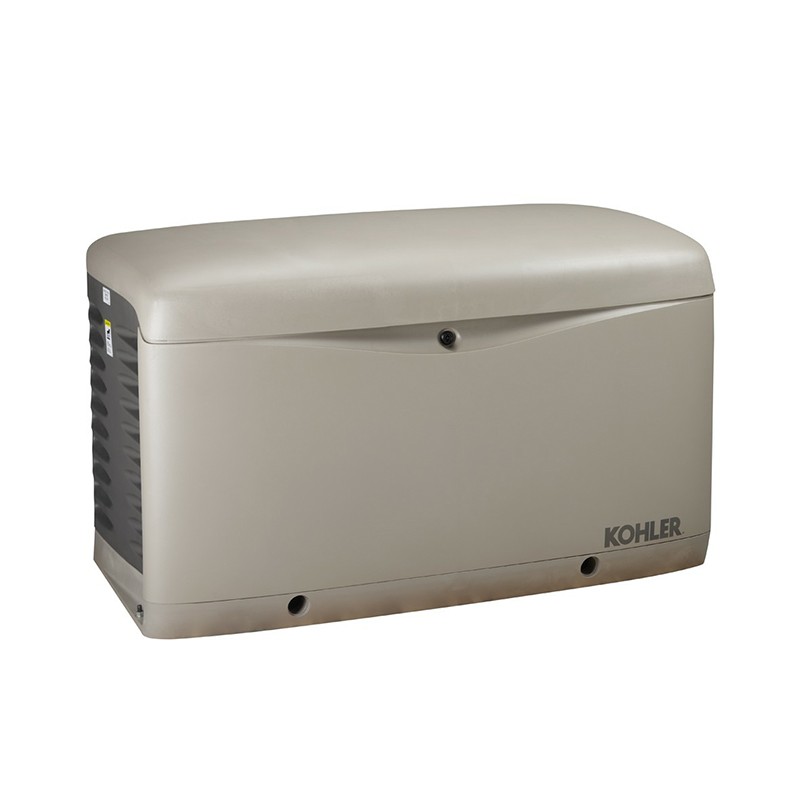

Kohler 20RESC-QS10 20kW Single-Three Phase LPG/Natural Gas Generator
Product Specifications:
Brand: Kohler
Part Number: 20RESC-QS10
Rated kW LP: 20 kW
Rated kW NG: 18 kW
Amps LP: 83 amps
Amps NG: 75 amps
Peak Motor Starting kVA @240 V: 41 kVa
Alternator Note: All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement: 999 cm³ (61 cu. in.)
Horsepower: NG 27.1 HP, LP 30.9 HP
Enclosure Material: Composite
Sound Output During Weekly Exercise: 64 dB(A)
Sound Output During Full-speed Operation: 69 dB(A)
Response Time: 10 seconds
Warranty: Premium five-year limited warranty
Country of Origin: US
Certifications/Listings: cUL|EPA|CSA|UL 2200
Automatic Transfer Switch Included: No
Remote Monitoring Available: Yes
Off Grid / Utility Backup: Utility Backup
Weight: 535 lbs. (243 kg)
Alternator Type: 2-Pole, Rotating Field
Fuel Consumption on NG at 50% load: 161 cfh
Fuel Consumption on LP at 50% load: 82 cfh
Controller: RDC2 Controller
Cylinder Arrangement: V-2
Dimensions: 1216 mm x 655 mm x 733 mm (48 in. x 26.2 in. x 29 in.)
Engine Manufacturer/Description: KOHLER
Engine Model: CH1000
Engine/Alternator RPM: 3600
Fuel Type: LPG|Natural Gas
Frequency: 50 Hz|60 Hz
Phase: Single Phase or Three Phase
Voltage @ 60 Hz: 120/240
Digital Voltage Regulation: ±1.0%
Built in Mounting Pad: Yes
