Description

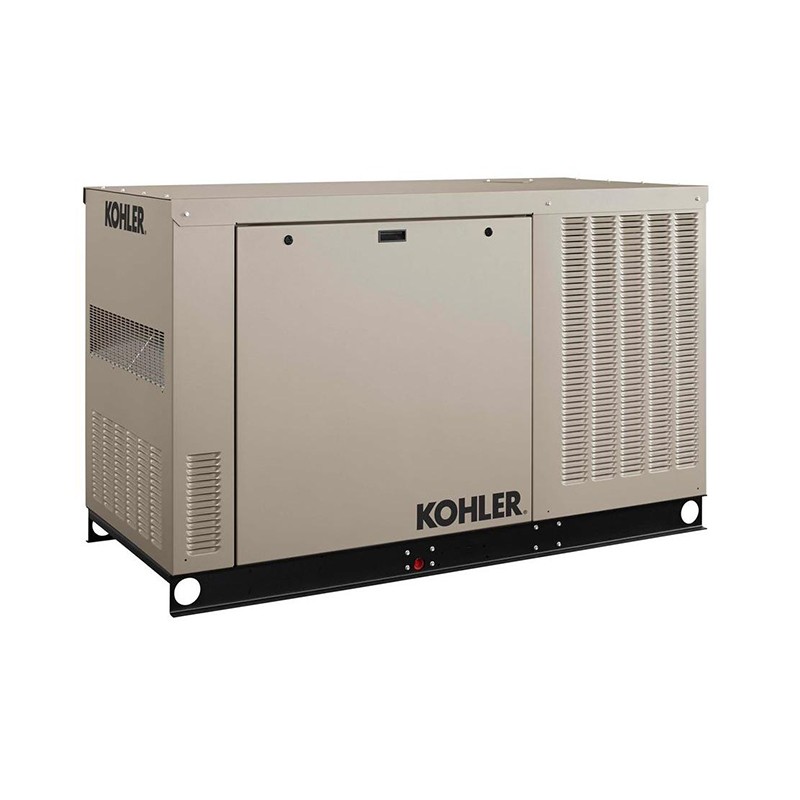

Kohler 38RCL-QS5 38,000-Watt Standby Generator
Product Specifications:
Brand: Kohler
Part Number: 38RCL-QS5
Rated kW LP: 38 kW
Rated kW NG: 38 kW
Amps LP: 158 amps
Amps NG: 158 amps
Peak Motor Starting kVA @240 V: 74 kVa
Alternator Note: All information shown is for 1 Phase 60 Hz generator with the largest alternator option available.
Displacement: 2.2 L (134 cu. in.)
Horsepower: 64 HP
Enclosure Material: Aluminum
Sound Output During Weekly Exercise: 54 dB(A)
Sound Output During Full-speed Operation: 62 dB(A)
Response Time: 10 seconds
Country of Origin: US
Certifications/Listings: UL 2200|CSA|EPA
Remote Monitoring Available: Yes
Off Grid / Utility Backup: Utility Backup
Weight: 1370 lbs. (621 kg)
Alternator Type: 4-Pole, Rotating Field
Fuel Consumption on NG at 50% load: 327 cfh
Fuel Consumption on LP at 50% load: 114 cfh
Controller: RDC2 Controller
Cylinder Arrangement: Inline-4 cylinder
Dimensions: 1880 mm x 836 mm x 1146 mm (74 in. x 32.9 in. x 45.1 in.)
Engine Manufacturer/Description: KOHLER
Engine Model: Residential Powertrain KG2204T, 2.2 L, 4-Cycle, Turbocharged
Engine/Alternator RPM: 1800
Fuel Type: Natural Gas|LPG
Frequency: 60 Hz|50 Hz
Phase: Single Phase or Three Phase
Voltage @ 60 Hz: 120/240
Digital Voltage Regulation: ±1.0%
Warranty: 5-Year
