Description

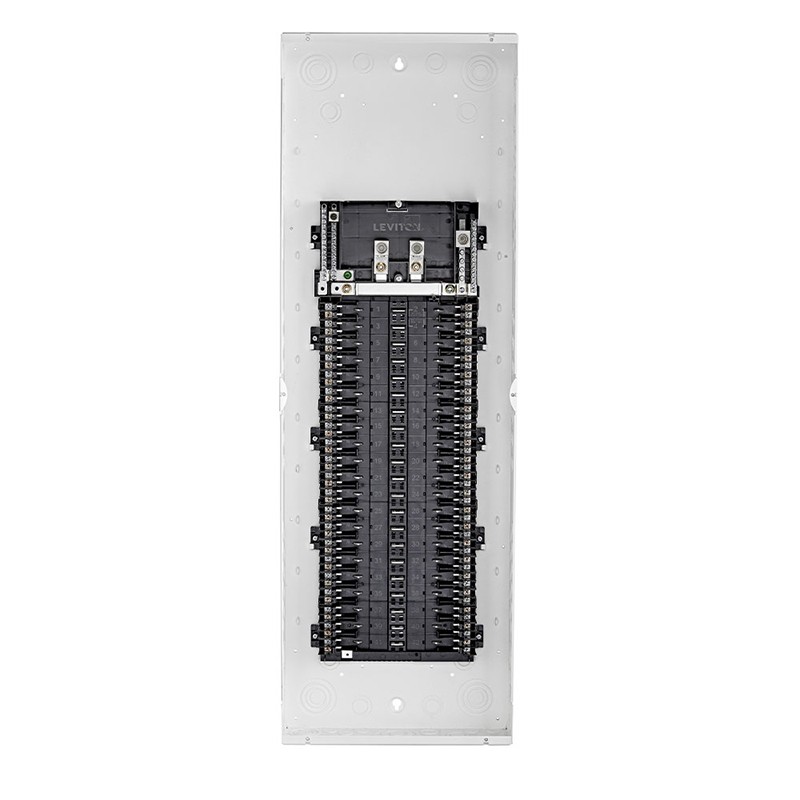

Leviton LP422-ML 42 Space Indoor Load Center with Main Lugs
Product Specifications:
Brand: Leviton
Part Number: LP422-ML
Color: White
Amperage: 225 A
Short Circuit Current Rating: 10kA
Spaces / Circuits: 42 / 42
Type of Load Center: Main Lug
Voltage: 120/240 VAC
Busbar Material: Copper, Bright Tin-Plated
Dimensions: 43″ H x 14.25″ W x 4″ D
Enclosure Material: Galvanized Steel, White Powder Coat
Ground Connection: 4 AWG – 2/0 AWG Cu/Al
Supply Connections: 3 AWG – 300 MCM Cu/Al
Weight: 33 lbs.
NEMA Enclosure Type: NEMA 1 Indoor
Operating Temperature: -40°C to 85°C
Warranty: 10-Year Limited
