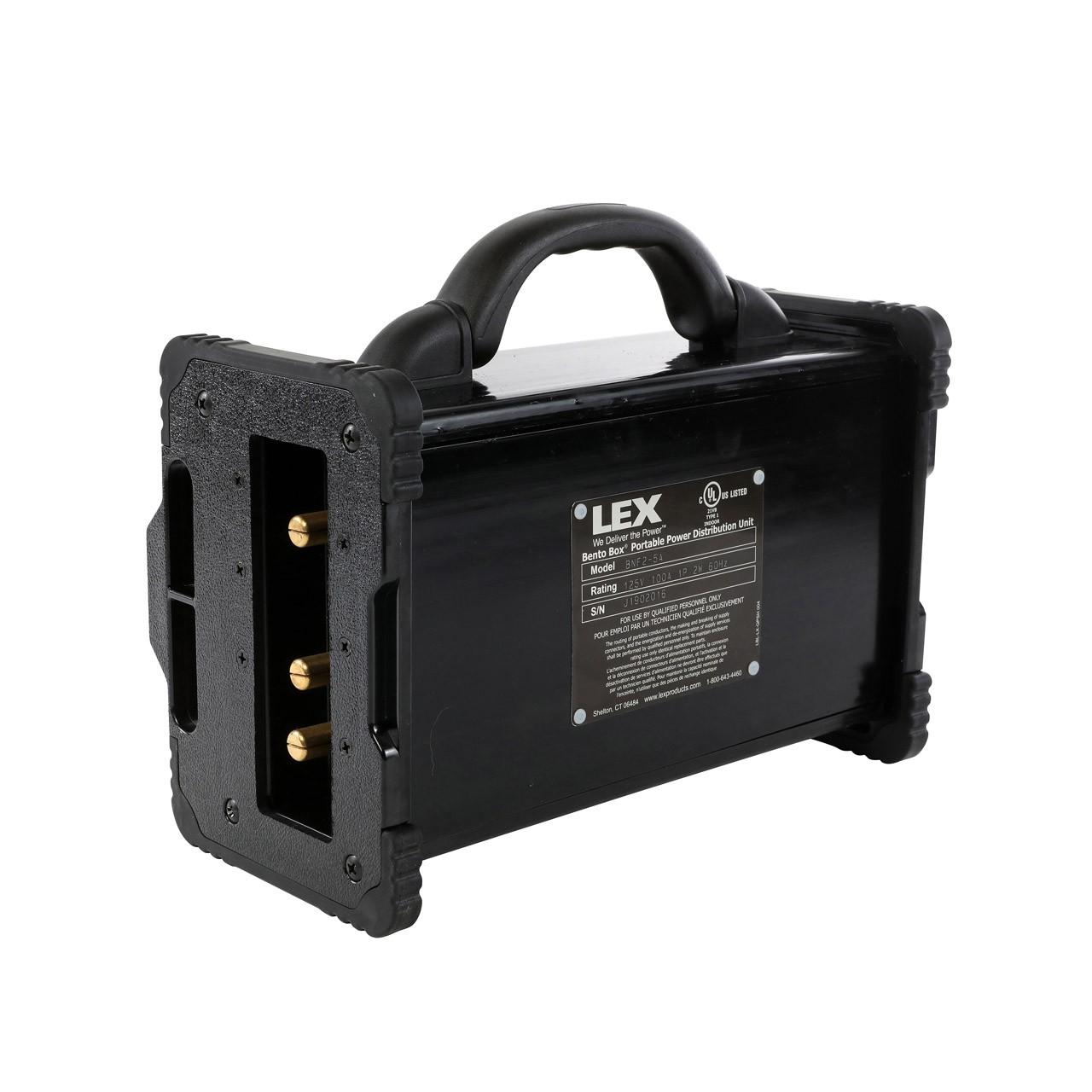

Brand: Lex PowerHOUSE™
Part Number: BNF2-5A
Rating: 100 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
Environmental Rating: NEMA Type 1 (Indoor Use)
Input: (1) Stage Pin (Bates), 100 Amp, 2-pole, 3-wire, 125 VAC inlet, panel mount
Feed Thru: Yes
Main Breaker: None

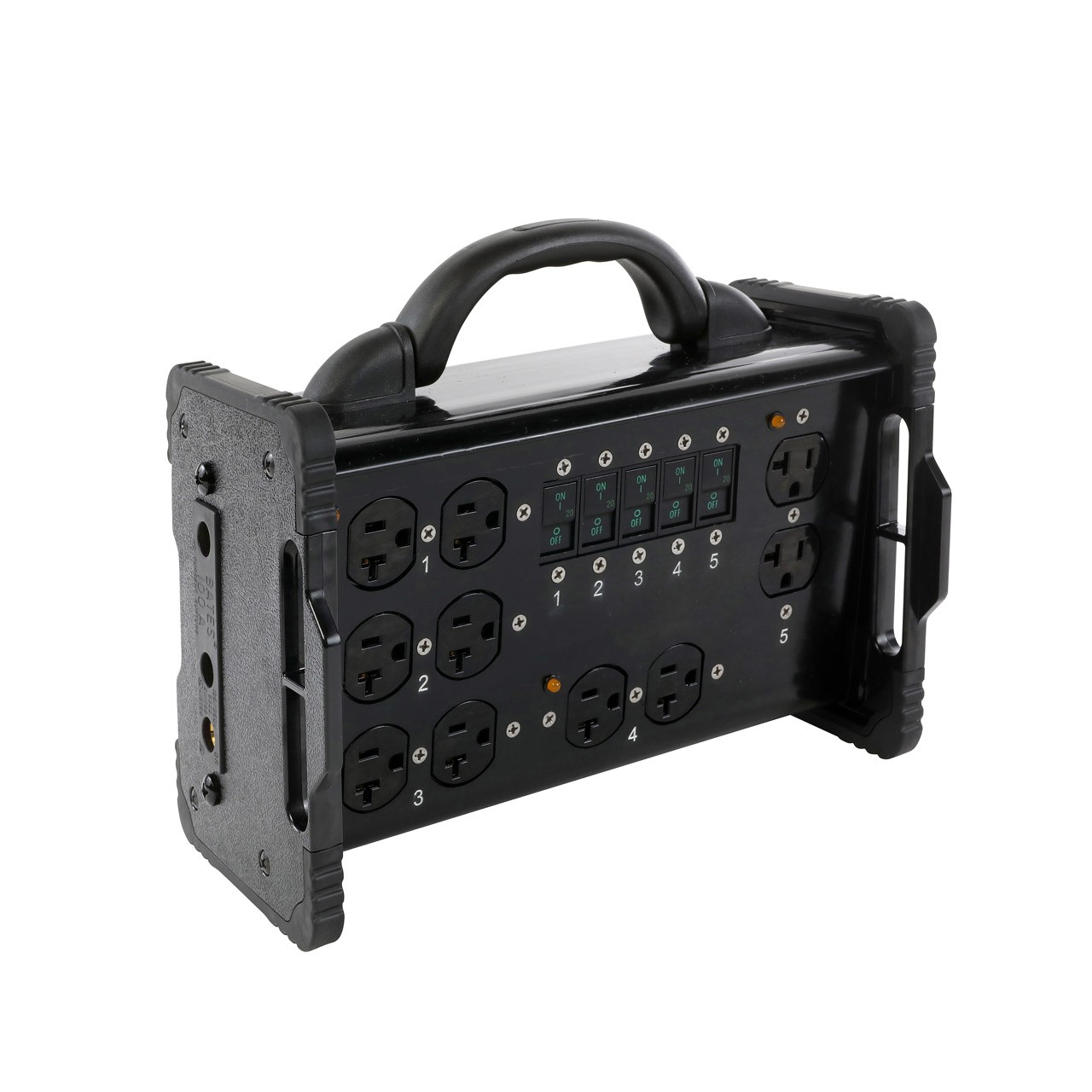

Output: (3) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
Overcurrent Protection: 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Bento™
Dimensions: 11.50″L x 5.90″W x 7.60″H
Weight: 7.5 lbs
Agency Approval: cULus Listed
Markets Served: Motion Picture and Television Production

– Fed from larger power sources, this compact distribution unit provides 20 Amp duplex receptacles for smaller lights and related equipment
– The feed thru feature allows multiple boxes to be placed along the same feed
– Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
– Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp
– Fit six in a standard six-gallon milk crate for ease of transport
– Stackable and compact for easy storage and convenient portability
– Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
– Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
– Collapsible handle and end plate grips for easy handling in tight spaces
