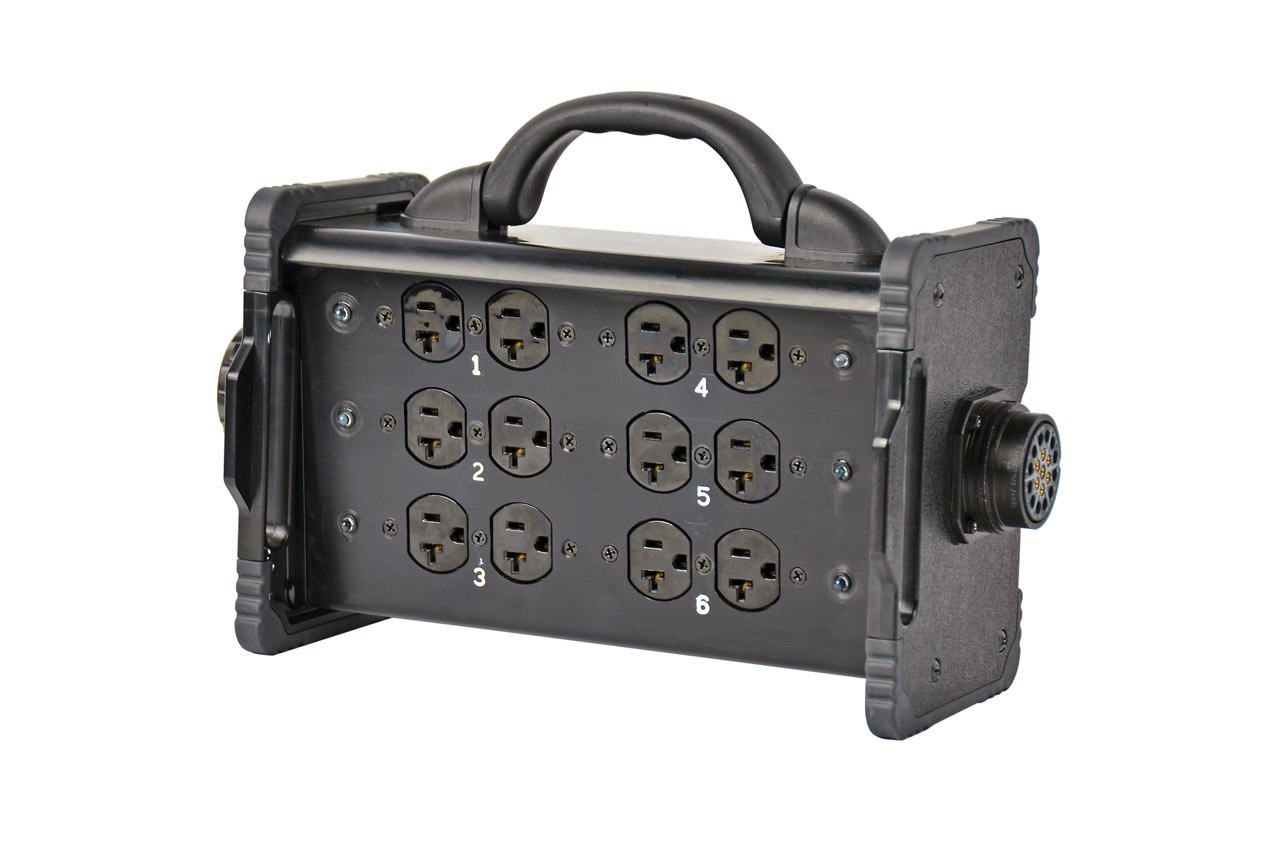

Lex BNZJ2-Z3-CLP 20 Amp “Break Out Box” to Edison Receptacles, Feed Thru

$1,376.55

20 Amps per circuit, 6-circuit Break Out Box, Bento enclosure, LSC19 panel mount male to (6) NEMA 5-20, 20 Amp duplex receptacles, Feed Thru, NEMA 1 Indoor. Additional model available with mounting holes on a metal handle and on the back to allow vertical or horizontal mounting on a truss or pole.

SKU # : BNZJ2-Z3-CLP
List Price: $1,449.00

In stock

Compare
Lex Products

Description

Lex BNZJ2-Z3-CLP 20 Amp “Break Out Box” to Edison Receptacles, Feed Thru

Product Specifications:
Brand: Lex PowerHOUSE™
Part Number: BNZJ2-Z3-CLP
Rating: 20 Amp, 6-circuit, 120 VAC
Environmental Rating: NEMA 1 Indoor
Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount male
Output: (6) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
Feed Thru (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount female
Overcurrent Protection: None
Dimensions:  11.50″L x 5.90″W x 7.60″H
Weight: 6.2 lbs
Markets Served: Theatrical, Concert Production, Live Event, Motion Picture and Television ProductionProduction

Features:

– Provides 12 connection points for lights using 20 Amp duplex receptacles
– Optional bracket and threaded insert enables easy mounting vertically or horizontally with C-clamp
– Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
– Feed thru option allows multiple boxes to be placed along the same feed
– End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
– Stackable and compact for easy storage
