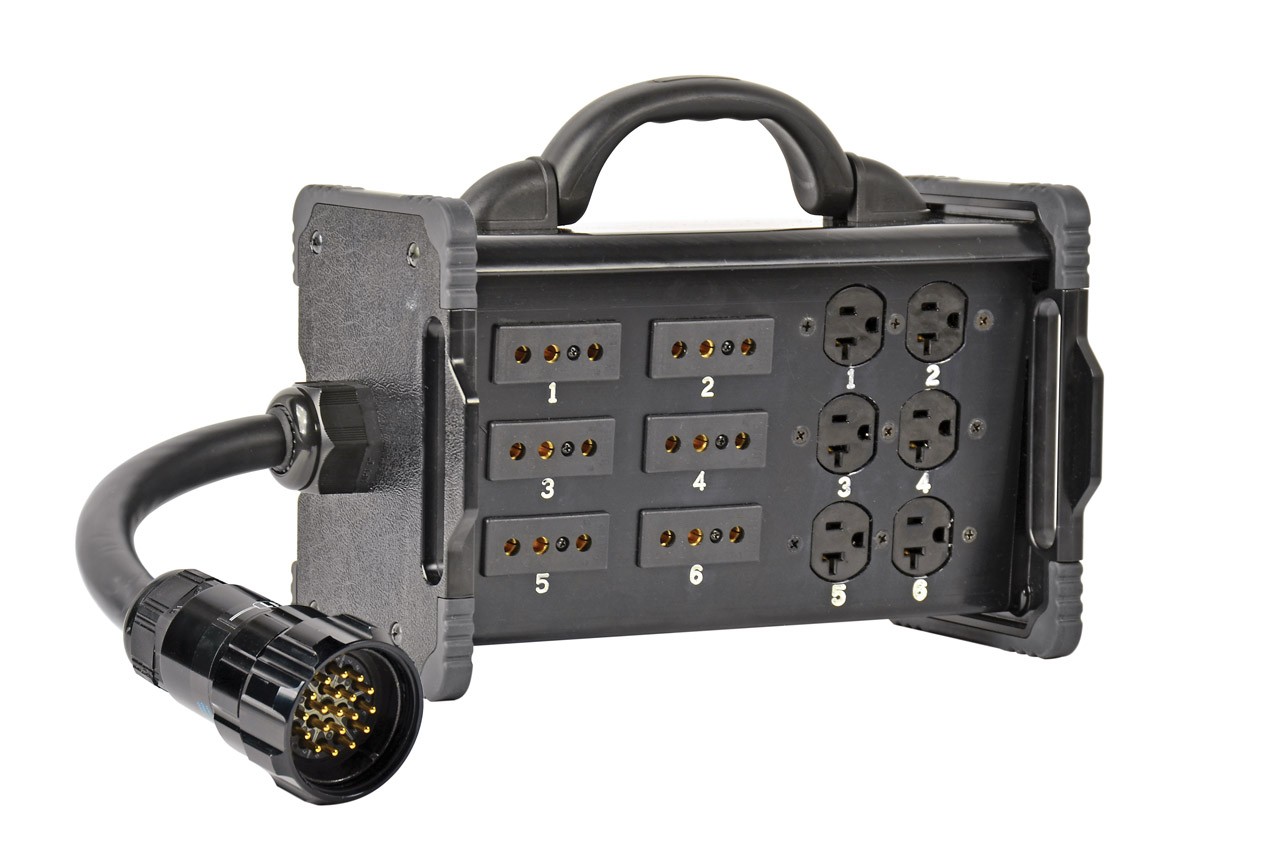

Brand: Lex PowerHOUSE™
Part Number: BNZJ3-Z1
Rating: 20 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz, (6) circuit
Environmental Rating: NEMA Type 1 (Indoor Use)
Input: (1) LSC19, (6) x 20 Amp, 2-pole, 3-wire, 120/208Y VAC, 19-pin locking plug on a 1.5′ pigtail
Feed Thru: None
Main Breaker: None
Output: (3) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacles, split-wired for (6) 20 Amp circuits, panel mount wired in parallell with (6) 20 Amp, 2-Pole, 3-Wire, 125 VAC, stage pin (Bates), panel mount
Overcurrent Protection: None
Enclosure Type: Bento™
Dimensions: 11.50″L x 5.90″W x 7.60″H
Weight: 6.7 lbs
Agency Approval: cULus Listed
Markets Served: Theatrical, Concert Production, Live Event, Motion Picture and Television Production

– Breaks an industry standard 6-circuit lighting cable into a combination of NEMA 5-20 and stage pin receptacles
– Ideal for applications using lights where a combination of both plug types are required
– A combination of NEMA 5-20 and stage pin receptacles allows convenient connections where devices with both plugs are used

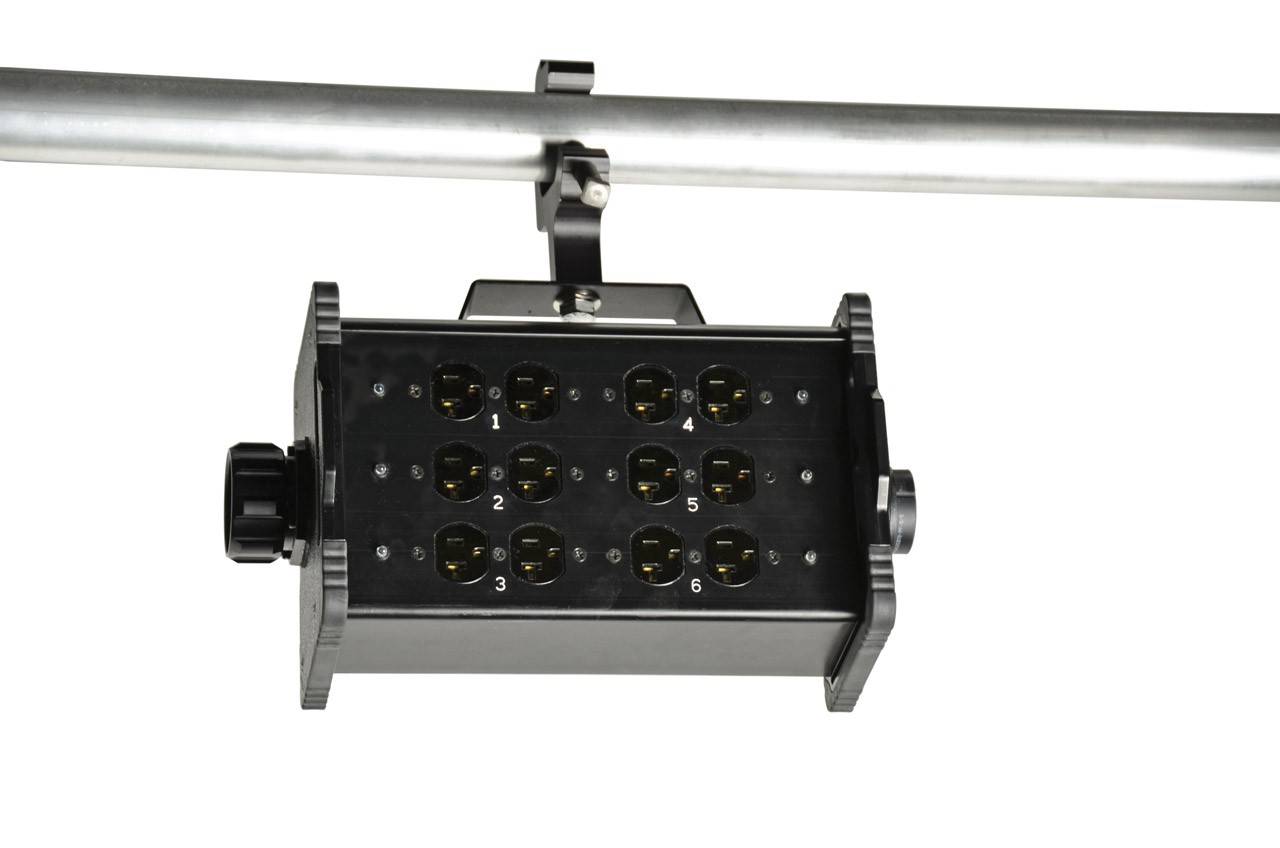

– Optional model available that enables easy mounting vertically or horizontally wth C-clamp
– Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
– End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
– Stackable and compact for easy storage
