Description

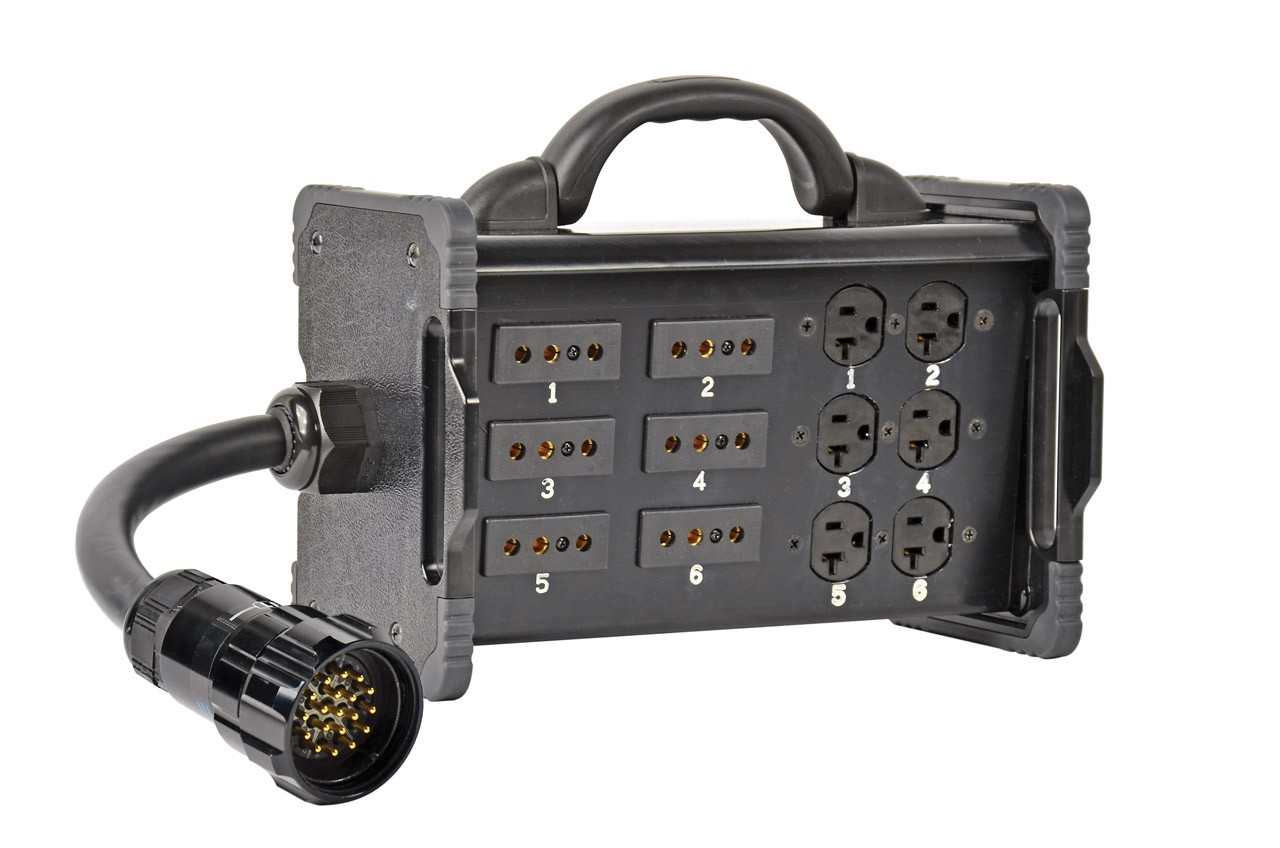

Lex BNZJ3-Z1-CLP 20 Amp “Break Out Box” with Tail Input to Edison and Stage Pin Receptacles
Product Specifications:
Brand: Lex PowerHOUSE™
Part Number: BNZJ3-Z1-CLP
Rating: 20 Amp, 6-circuit, 120 VAC
Environmental Rating: NEMA 1 indoor
Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 inline male on 12 inch 12/14 TPR tail
Feed Thru: None
Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles wired in parallel with (6) 20 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles
Overcurrent Protection: None
Enclosure Type: Bento™
Dimensions: 11.50″L x 5.90″W x 7.60″H
Weight: 6.7 lbs
Markets Served: Theatrical, Concert Production, Live Event, Motion Picture and Television Production
Part Number: BNZJ3-Z1-CLP
Rating: 20 Amp, 6-circuit, 120 VAC
Environmental Rating: NEMA 1 indoor
Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 inline male on 12 inch 12/14 TPR tail
Feed Thru: None
Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles wired in parallel with (6) 20 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles
Overcurrent Protection: None
Enclosure Type: Bento™
Dimensions: 11.50″L x 5.90″W x 7.60″H
Weight: 6.7 lbs
Markets Served: Theatrical, Concert Production, Live Event, Motion Picture and Television Production
Features:
• Combination of NEMA 5-20 and stage pin receptacles allows convenient connections when lights with both types of plugs are being used
• Optional model available that enables easy mounting vertically or horizontally with C-clamp* (see reverse side for details)
• Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
• End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
• Stackable and compact for easy storage
