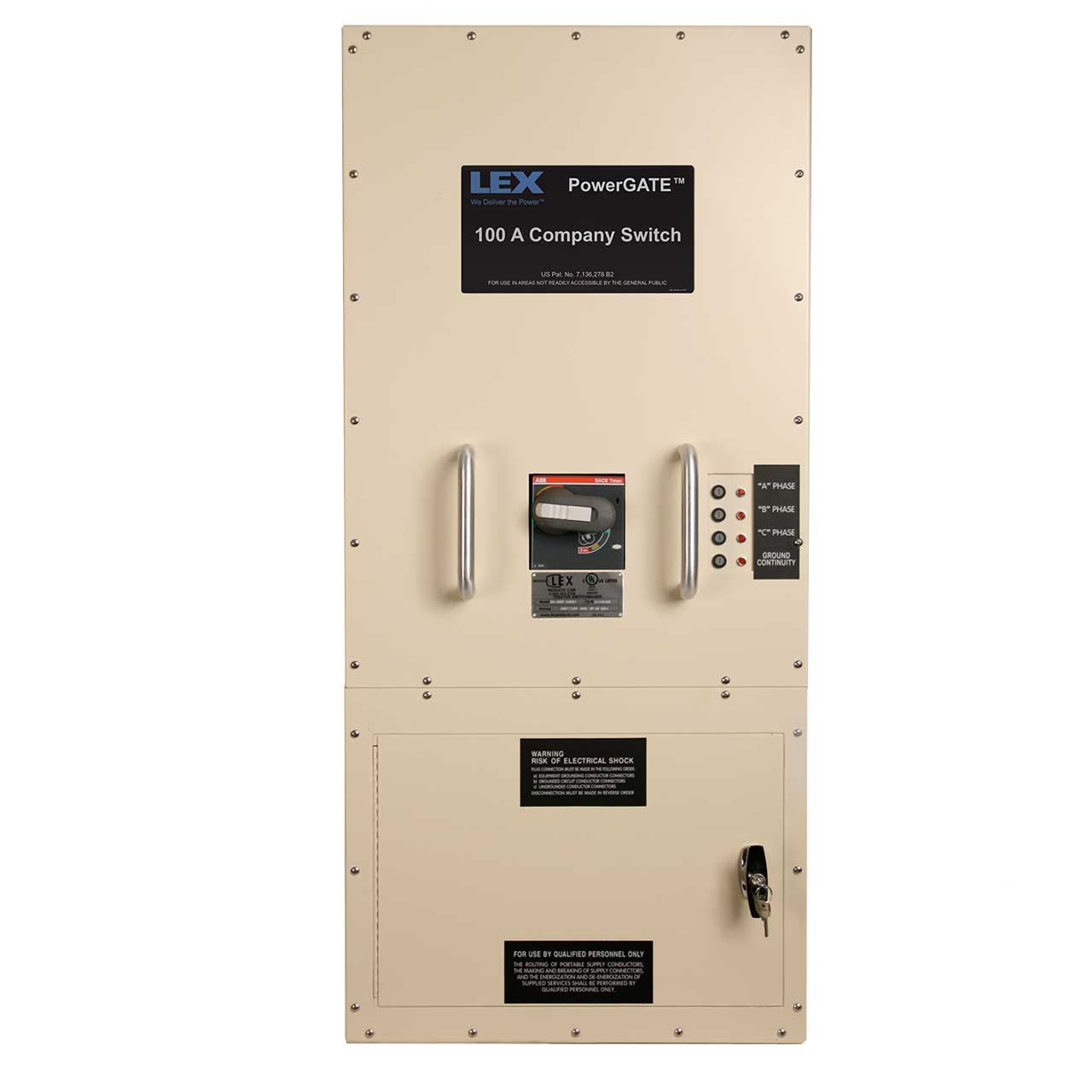

Brand: Lex PowerGATE™
Part Number: CS-100F-D5PS1
Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 120/208Y VAC
Environmental Rating: NEMA Type 1 (Indoor Use)
Input: (1) set of (6) compression terminals (H,H,H,N,N,G), wire range: 350 kcmil – 6 AWG, 600V, panel mount
Output: (1) 5100R9W, 100 Amp, 4-Pole, 5-Wire, 120/208Y VAC, IEC60309 pin and sleeve receptacle, panel mount; (1) set of (5) compression terminals, wire range: 500 kcmil- 4 AWG, 120/208Y VAC, panel mount
Feed Thru: None
Overcurrent Protection: (1) 60-150 Amp, three pole, adjustable, electronic, branch-rated circuit breaker
Enclosure: Company Switch
Color: Sand
Overall Dimensions: 11.64″L x 20.27″W x 38.50″H
Weight: 123.0 lbs
Agency Approval: cULus Listed
Markets Served: Theaters, Convention Centers, Studios, Theme Parks, Recreational Facilities

– Company Switches have become the preferred type of product for applications of this nature due to safety and convenience benefits
– PowerGATE™ Company Switch design features both Cam-type connectors and lugs in one compact, connection chamber for ultimate flexibility
– Features an electronic trip circuit breaker that is 100% rated, enabling continuous operation at maximum capacity
– Circuit breaker rated at 65,000 AIC (Amps Interrupting Capacity) to exceed requirements for installed dimmers
– Outputs are behind a lockable access door, helping to eliminate accidental disconnection, unauthorized access and/or tampering with connections
– Unique arrangements of both cams and lug terminations enables both sets of cable to drape downward for lower profile when mounted against a wall
– For enhanced safety, the access door to pin & sleeve and lug connections is interlocked to the main breaker, which means the breaker cannot be turned on unless the access door is closed
– Power shuts off automatically when the access door is opened, eliminating the ability to make or break a connection under load
– Circuit breaker allows for lockout/tagout to restrict access as needed
– The chassis ground can be isolated from the main ground for sensitive audio applications
– An integral LED worklight is provided in the connection chamber for ease of connection and enhanced safety
