Description

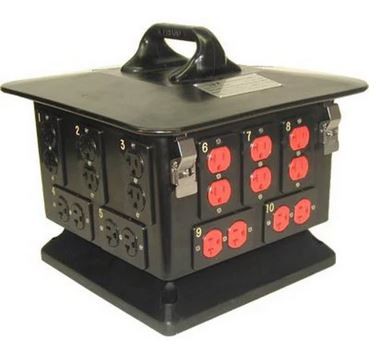

Lex DB100A-A401520-RGN 100A Pagoda with Cam Inlet and (15) 5-20 Duplex, Reverse Ground & Neutral
Product Specifications:
Brand: Lex PowerHOUSE™
Part Number: DB100A-A401520-RGN
Rating: 100 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208 VAC
Input: 3 Ø 5-Wire Series 16 Cams, male phases, *Reversed Ground & Neutral*
Output: (15) NEMA 5-20, 20 Amp, 2 pole, 3 wire, 120 VAC duplex receptacles
Overcurrent Protection: (15) 20 Amp, 1-Pole branch-rated circuit breakers
Enclosure Type: PAGODA, NEMA 1 Indoor
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 32.0 lbs
Part Number: DB100A-A401520-RGN
Rating: 100 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208 VAC
Input: 3 Ø 5-Wire Series 16 Cams, male phases, *Reversed Ground & Neutral*
Output: (15) NEMA 5-20, 20 Amp, 2 pole, 3 wire, 120 VAC duplex receptacles
Overcurrent Protection: (15) 20 Amp, 1-Pole branch-rated circuit breakers
Enclosure Type: PAGODA, NEMA 1 Indoor
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 32.0 lbs
Features:
– Heavy duty molded rubber enclosure is fully insulated, resistant to shock, impact, corrosion and weather
– Extremely compact for convenient portability
– Breakers located under hinged lid for enhanced safety
– Elevated base keeps receptacles above ground level
