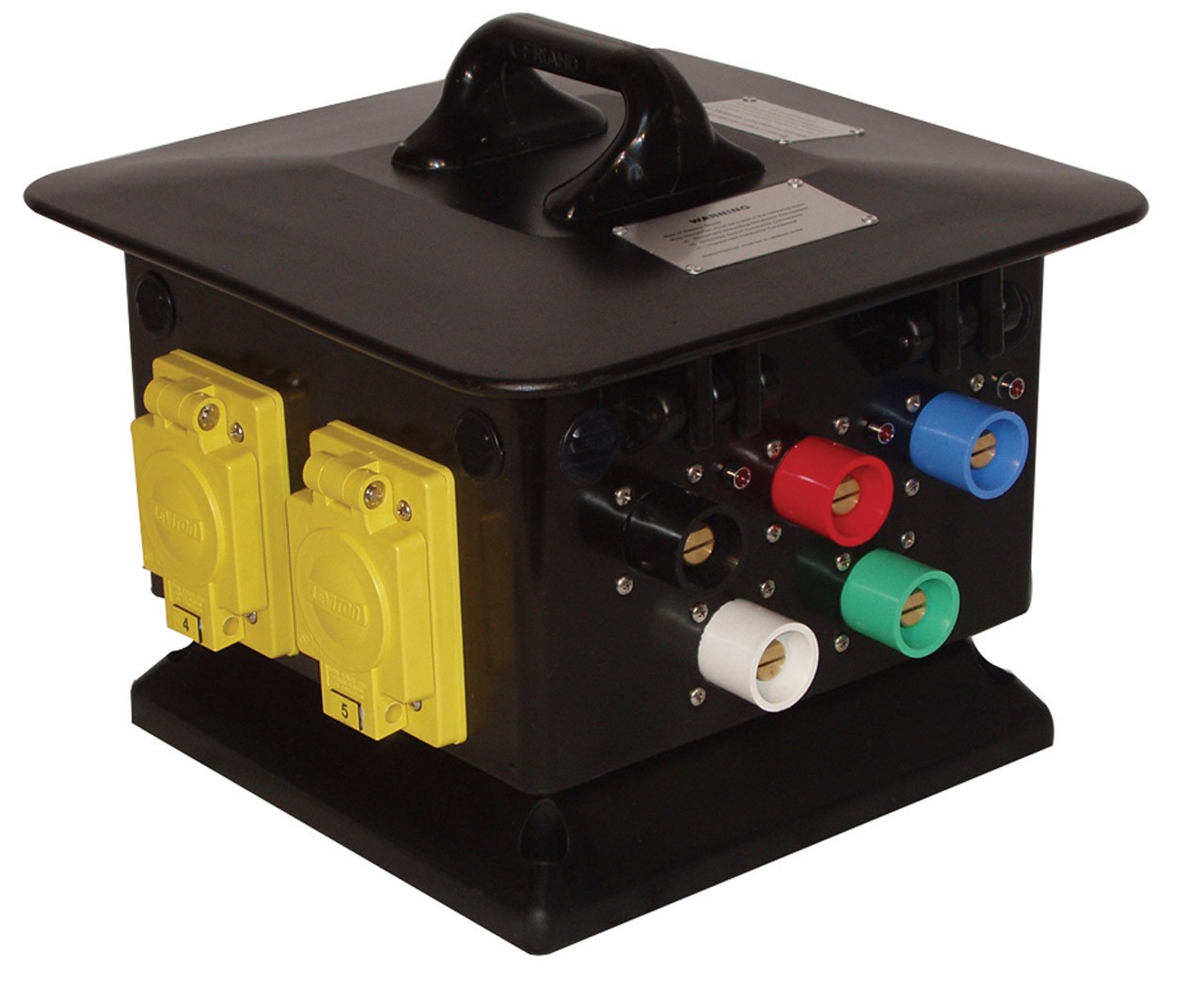

Lex DB100MP-AFF-S3 100 Amp Pagoda to L21-20 Receptacles
Product Specifications:
Product Specifications:
Brand: Lex PowerHOUSE™
Part Number: DB100MP-AFF-S3
Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) Set of (5) 16 Series Cam-type color-coded panel mount inlets
Output: (4) NEMA L21-20, 20 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC
locking receptacles (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, GFCI duplex receptacle
Feed Thru: None
Overcurrent Protection: (1) 20 Amp, Single Pole branch-rated circuit breaker, (4) 20 Amp, 3 Pole branch-rated circuit breakers
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 32.0 lbs
Agency Approval: cULus Listed
Brand: Lex PowerHOUSE™
Part Number: DB100MP-AFF-S3
Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) Set of (5) 16 Series Cam-type color-coded panel mount inlets
Output: (4) NEMA L21-20, 20 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC
locking receptacles (1) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, GFCI duplex receptacle
Feed Thru: None
Overcurrent Protection: (1) 20 Amp, Single Pole branch-rated circuit breaker, (4) 20 Amp, 3 Pole branch-rated circuit breakers
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 32.0 lbs
Agency Approval: cULus Listed
Features:
– The locking receptacles help ensure positive connection and prevent disconnecting under load
– The receptacles can be used to power lights, effects and audio equipment
– Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
– Circuit breakers are mounted under hinged lid for enhanced safety
– Stackable and compact for easy storage and portability
– Elevated base keeps receptacles above ground level
