Description

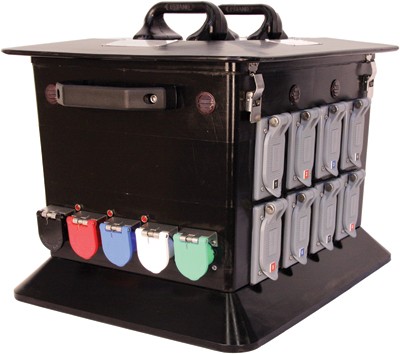

Lex DB200N1J24CD-H3 200 Amp Power Station Jr. to GFCI Duplex Receptacles, Weather Resistant
Product Specifications:
Brand: Lex PowerHOUSE™
Part Number: DB200N1J24CD-H3
Rating: 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Output: (24) NEMA 5-20 GFCI, 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount
Feed Thru: None
Main Breaker: None
Overcurrent Protection: (24) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
Dimensions: 27.50″L x 18.50″W x 18.00″H
Weight: 65.0 lbs
Agency Approval: cULus Listed
Markets Served: Live Events, Fairs, Sporting Events, Concert Touring, Industrial Maintenance and Repair, Military Base Applications
Part Number: DB200N1J24CD-H3
Rating: 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
Output: (24) NEMA 5-20 GFCI, 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount
Feed Thru: None
Main Breaker: None
Overcurrent Protection: (24) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
Dimensions: 27.50″L x 18.50″W x 18.00″H
Weight: 65.0 lbs
Agency Approval: cULus Listed
Markets Served: Live Events, Fairs, Sporting Events, Concert Touring, Industrial Maintenance and Repair, Military Base Applications
Features:
– Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
– Circuit breakers are mounted under hinged lid for enhanced safety
– Stackable and compact for easy storage and portability
– Elevated base keeps receptacles above ground level
