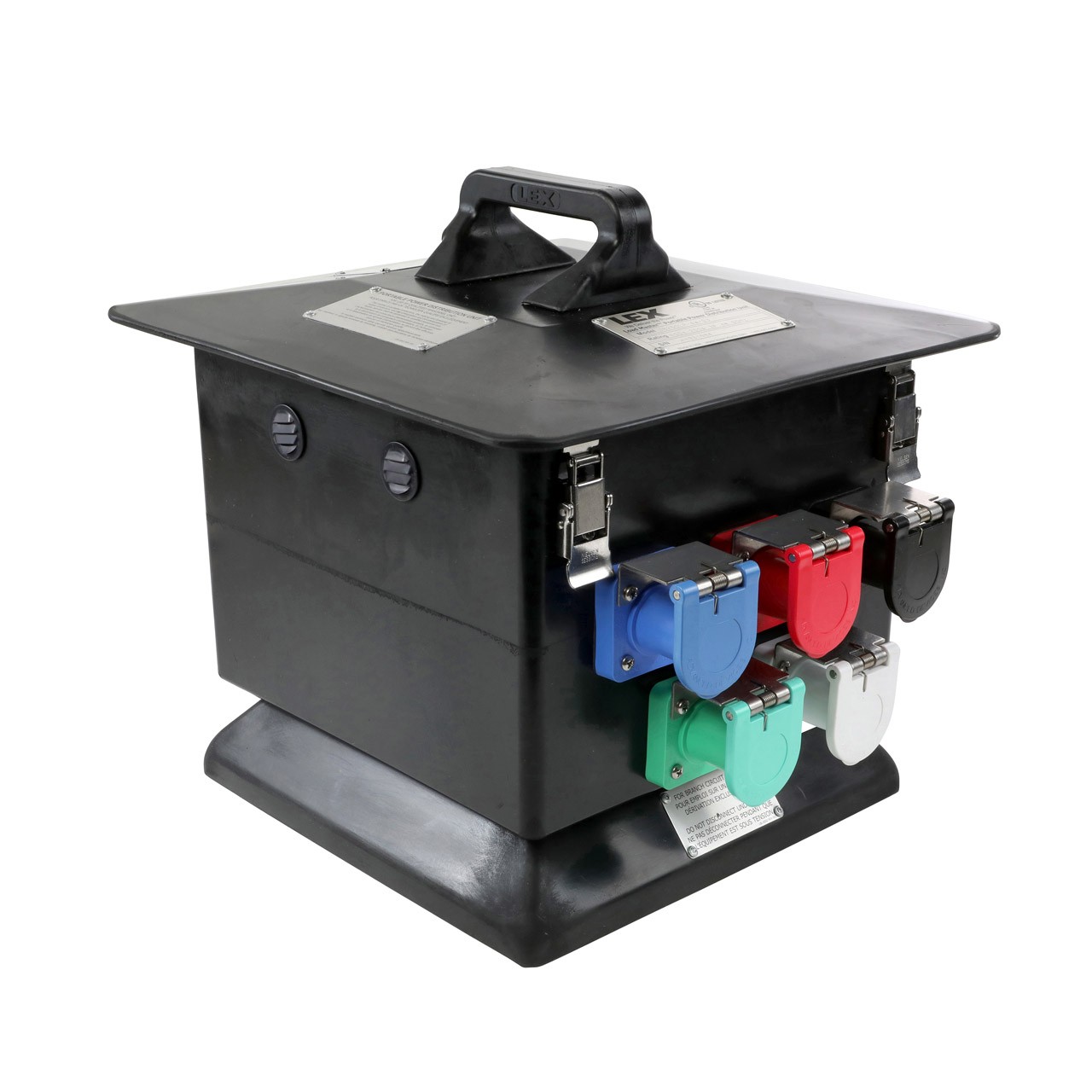

Brand: Lex PowerHOUSE™
Part Number: DB250LP-AW-S3
Rating: 100-250 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 277/480Y VAC, 60 Hz
Environmental Rating: NEMA Type 3R (Weather Resistant)
Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BOYWG color-coded, cover doors, cam-type inlets, panel mount
Output: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BOYWG color-coded, cover doors, cam-type inlets, panel mount
Feed Thru: None
Main Breaker: None
Overcurrent Protection: (1) 100-250 Amp, 600 VAC triple-pole, adjustable electronic, branch-rated circuit breaker
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 44.0 lbs
Agency Approval: cULus Listed
Markets Served: Shipyards, Emergency/Disaster Relief, Construction, Outdoor Events, Concert Touring, Entertainment

– Adjustable trip setting allows the box to protect a variety of systems with different cable sizes
– Electronic circuit breaker will not nuisance trip due to high ambient temperatures
– Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
– The circuit breaker is mounted under hinged lid for enhanced protection
– Stackable and compact for easy storage and convenient portability
– Elevated base keeps receptacles above ground level
