Brand: Lex PowerHOUSE™
Part Number: DBS100FP-B4B2
Rating: 100 Amp, Single Phase (H,N,G), 2-Pole, 3-Wire, 120/208Y VAC
Environmental Rating: NEMA Type 1 (Indoor Use)
Input: (1) NEMA L21-30, 30 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking plug on 12 inch 10/5 SOW-A tail
Feed Thru: Yes
Main Breaker: None
Output: (5) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacles, panel mount
Overcurrent Protection: (5) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers

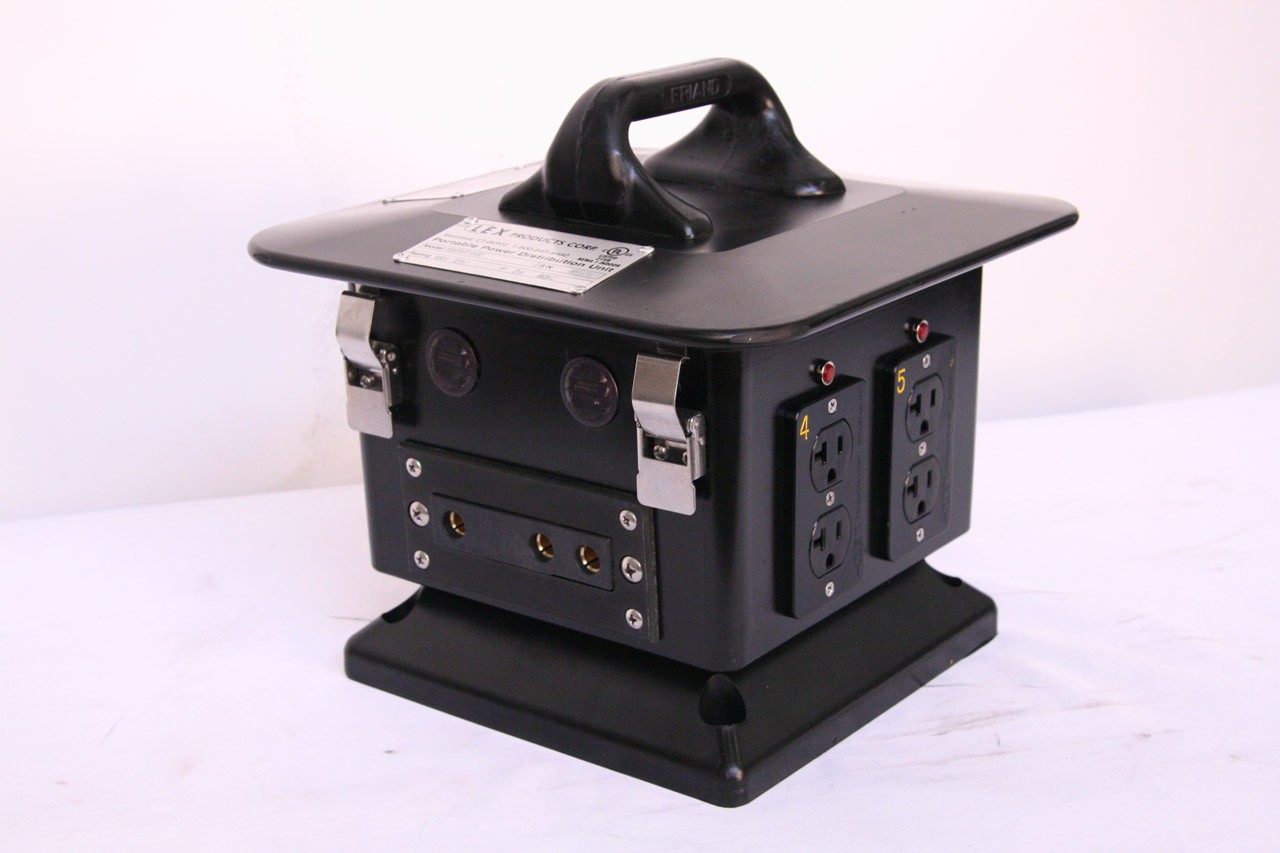

Enclosure Type: Pagoda Jr.
Dimensions: 11.38″L x 11.38″W x 11.32″H
Weight: 16.0 lbs
Agency Approval: cULus Listed
Markets Served: Motion Picture and Television Production

– This box is fed from a larger power distribution box and provides power from a stage pin inlet to NEMA 5-20 duplex receptacles for smaller lights and related equipment
– The feed thru feature allows multiple boxes to be placed along the same feed.Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

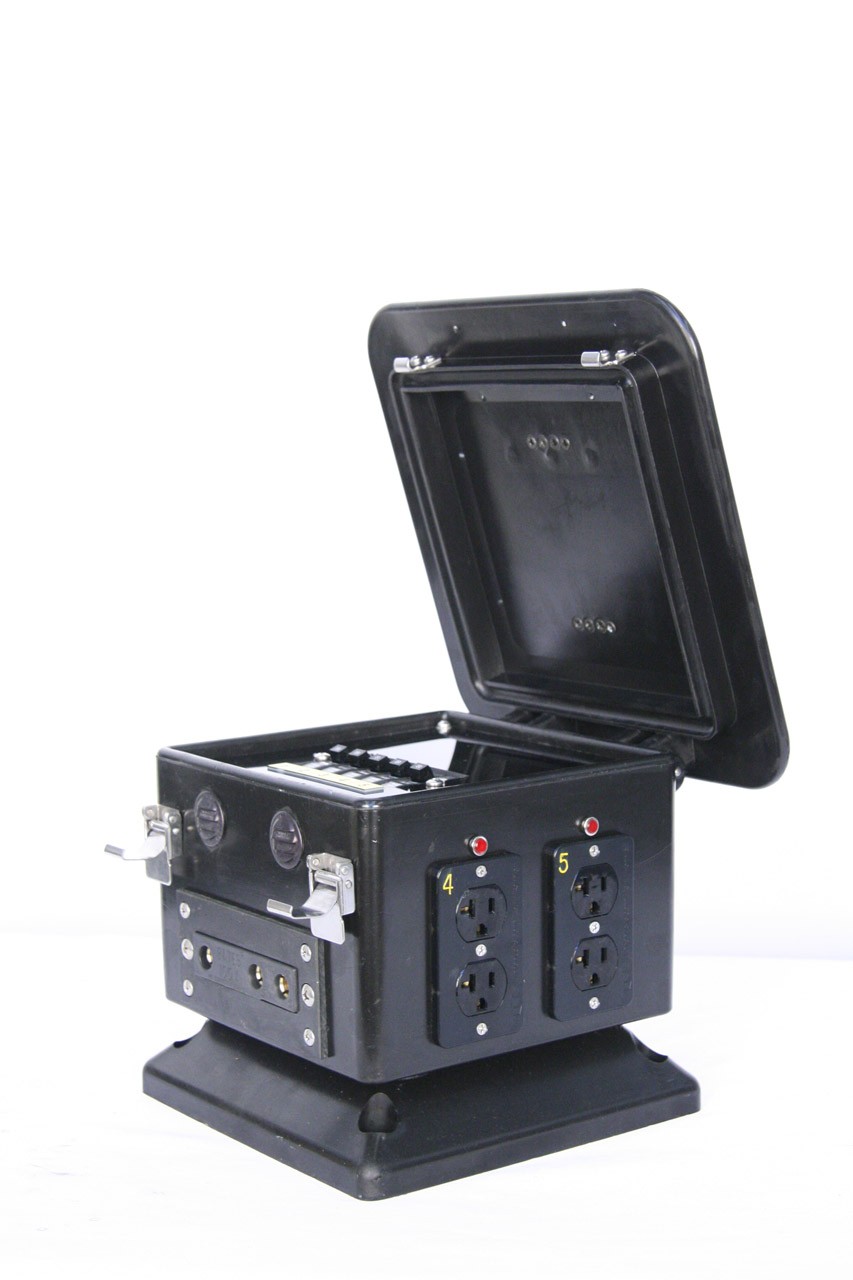

– Circuit breakers mounted under hinged lid for enhanced protection
– Stackable and compact for easy storage and convenient portability
– Elevated base keeps receptacles above ground level
