Description

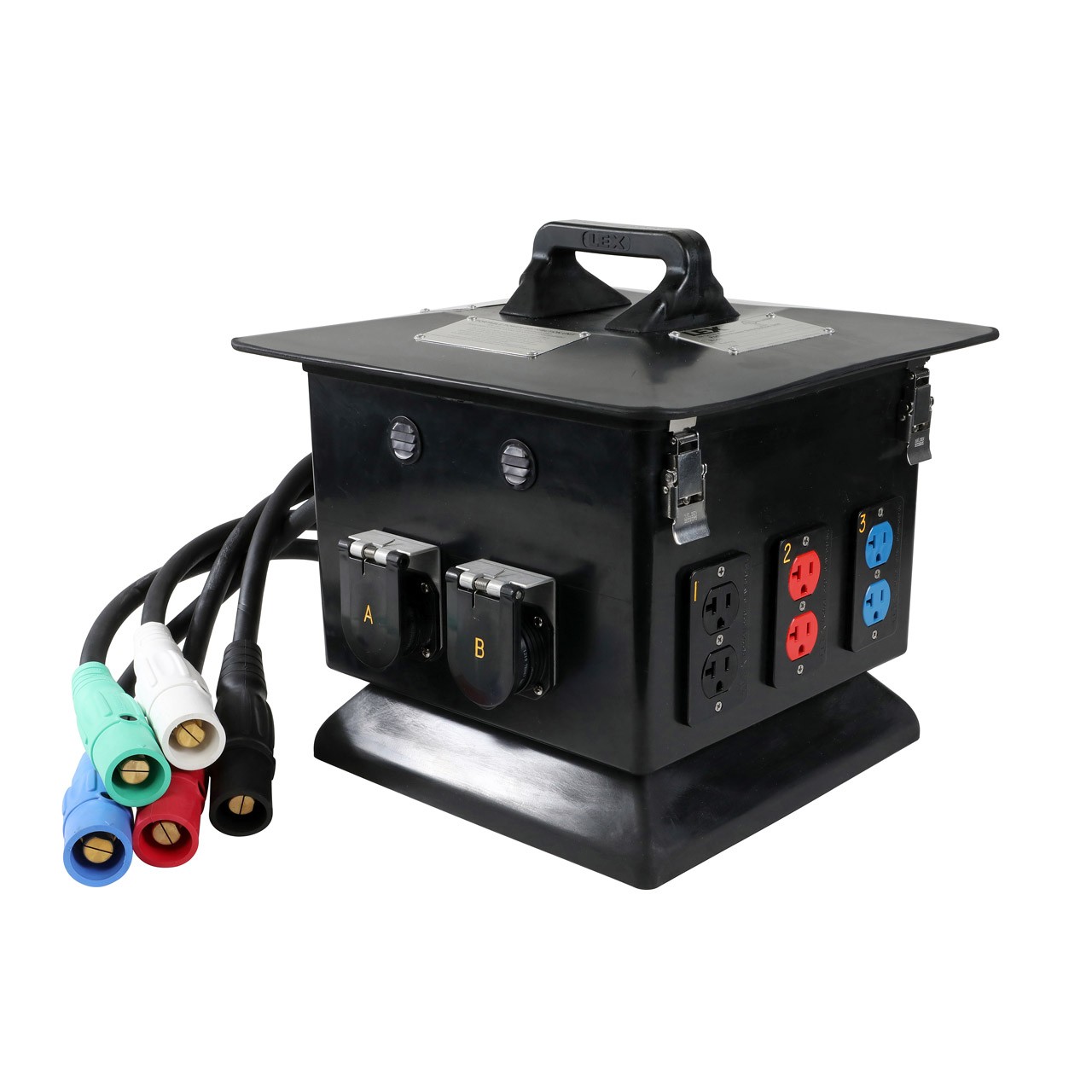

Lex DBS200-A4BM2 200 Amp Pagoda to 19-Pin Receptacles
Product Specifications:
Brand: Lex PowerFLEX™
Part Number: DBS200-A4BM2
Rating: 200A
Feed Thru: None
Output: (4) LSC19 19-Pin, 20 Amp, 2-Pole, 3-Wire, 125 VAC receptacles, panel mount; (3) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacle, panel mount
Overcurrent Protection: (27) 20 Amp, 125 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Pagoda
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 39.0 lbs
Agency Approval: cULus Listed
Part Number: DBS200-A4BM2
Rating: 200A
Feed Thru: None
Output: (4) LSC19 19-Pin, 20 Amp, 2-Pole, 3-Wire, 125 VAC receptacles, panel mount; (3) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacle, panel mount
Overcurrent Protection: (27) 20 Amp, 125 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Pagoda
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 39.0 lbs
Agency Approval: cULus Listed
Features:
– Circuit breakers are mounted under hinged lid for enhanced protection
– Stackable and compact for easy storage and convenient portability
– Elevated base keeps receptacles above ground level
– Reverse neutral and ground option helps prevent mis-mating for enhanced safety
