Brand: Lex PowerHOUSE™
Part Number: DB160NP-ADDMS1
Rating: 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Environmental Rating: NEMA Type 1 (Indoor Use)

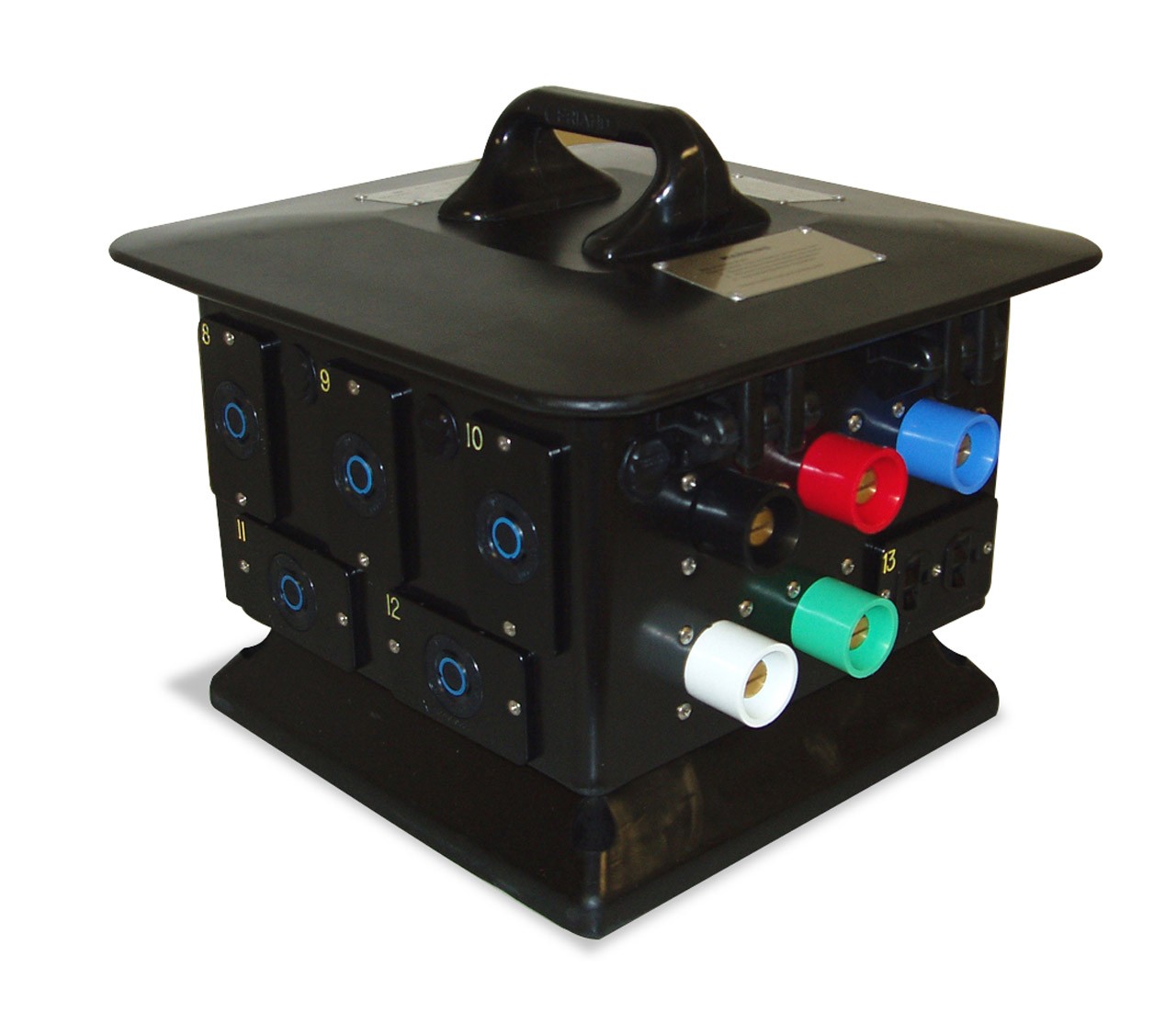

Input: 200 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
Feed Thru: None
Main Breaker: None
Output: (12) NEMA L6-20, 20 Amp, 2-pole, 3-wire, 250 VAC, locking receptacles, panel mount wired in parallel with (2) LSC19, (6) x 20 Amp, 2-pole, 3-wire, 250 VAC, 19-pin locking receptacles, panel mount; (1) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, panel mount
Overcurrent Protection: (12) 20 Amp, 120/240 VAC, double-pole, hydraulic magnetic, branch-rated circuit breaker; (1) 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: Pagoda™
Dimensions: 14.25″L x 14.25″W x 14.15″H
Weight: 32.0 lbs
Agency Approval: cULus Listed
Markets Served: Concert Production, Theatrical, Live Events

– This box powers 12 moving lights at a remote location with (12) NEMA L6-20 plugs and/or (2) 6-circuit, 250 VAC multi-cables
– The two types of receptacles are wired in parallel
– Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

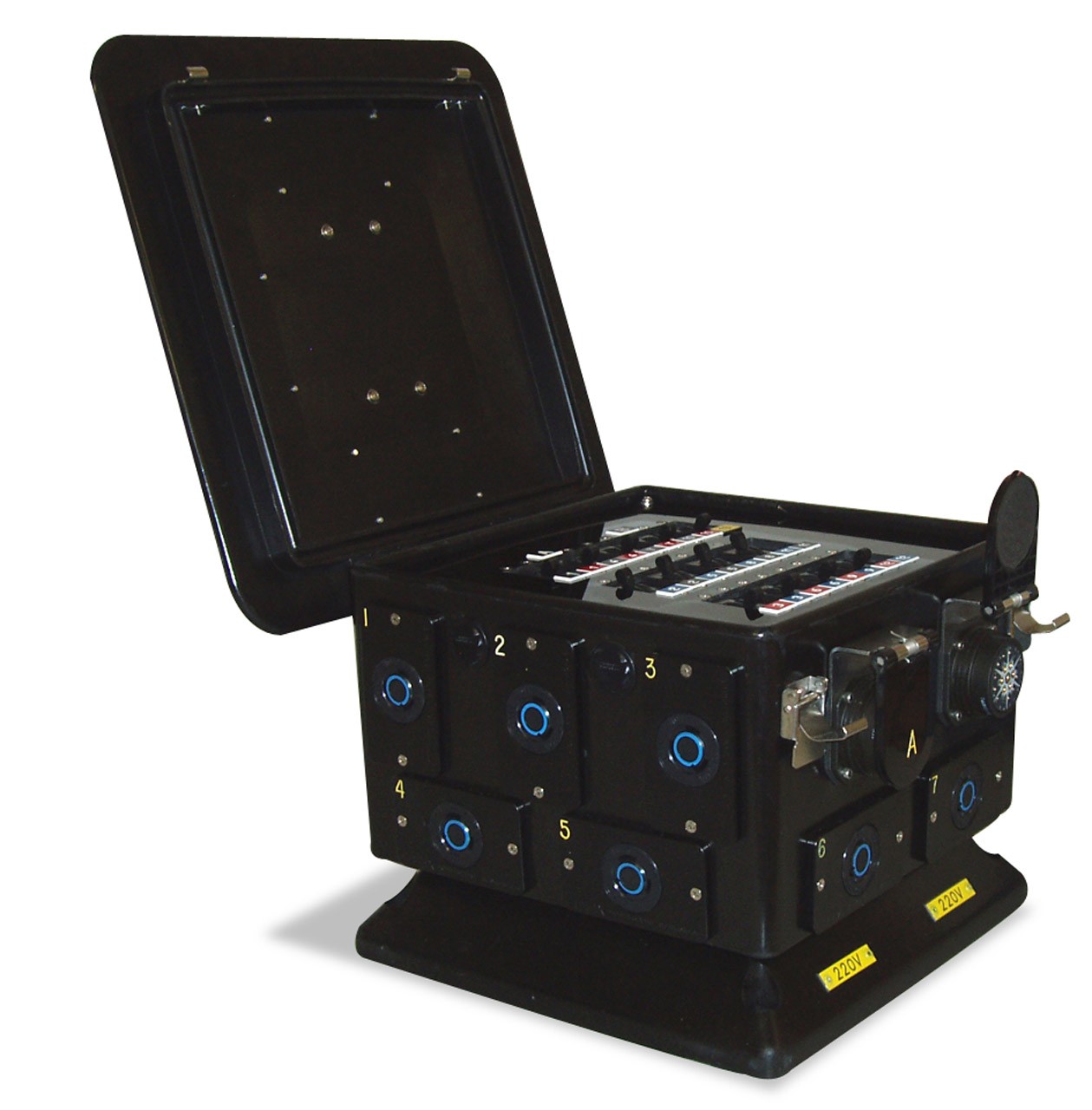

– Circuit breakers mounted under a hinged lid for enhanced safety
– Stackable and compact for easy storage and convenient portability
– Elevated base keeps receptacles above ground level
