Description

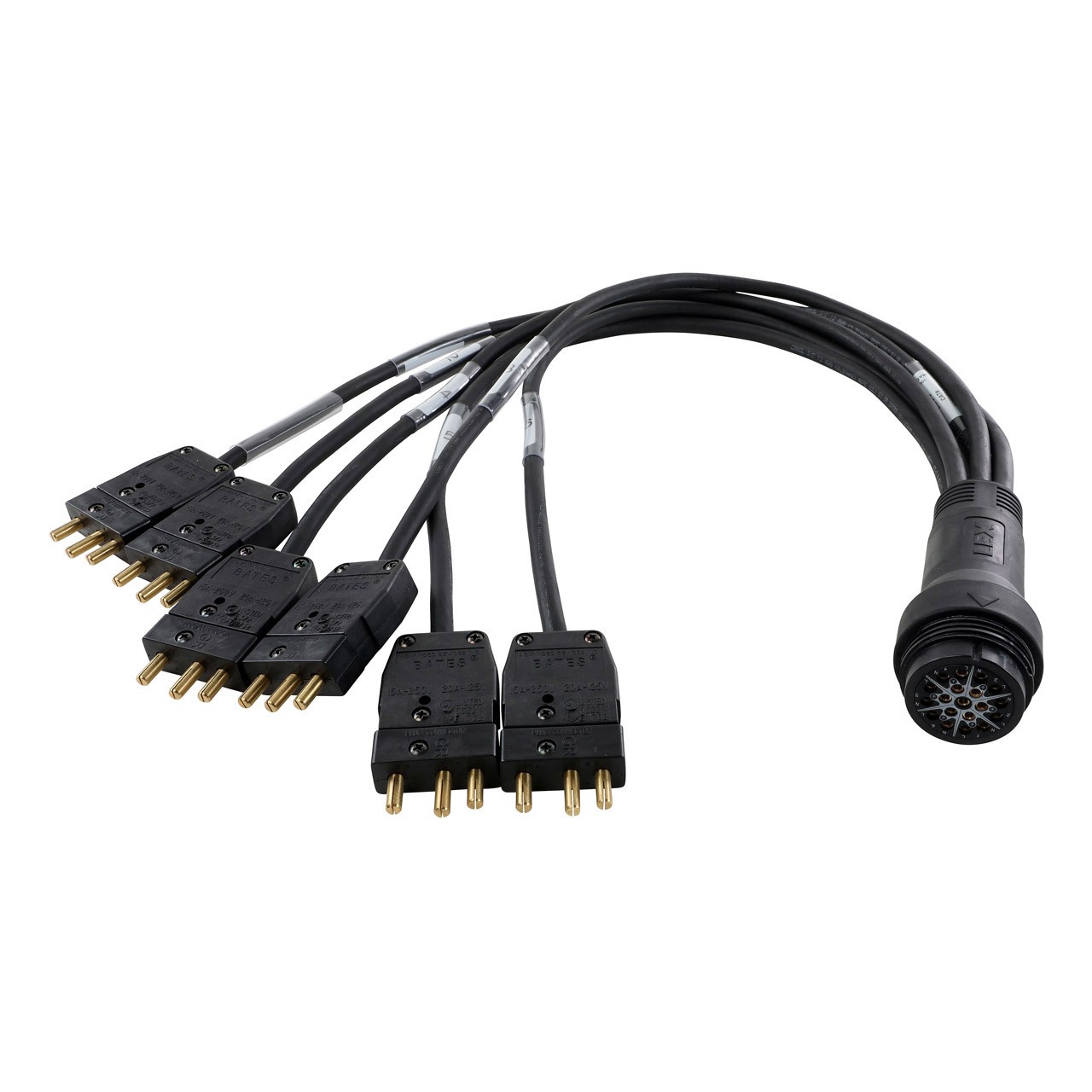

Lex EGBI100-3-SP EverGrip® Molded 20A Stage Pin to 19-Pin Breakin, 3ft
Product Specifications:
Brand: Lex PowerFLEX™
Part Number: EGBI100-3-SP
Rating: 20 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
– NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
Male Plug: (6) Stage Pin (Bates), 20 Amp, 2-pole, 3-wire, 125 VAC inlet, inline cylindrical contact device, black
Cable/Cord: (6) #12/3 Type SJOOW Cord

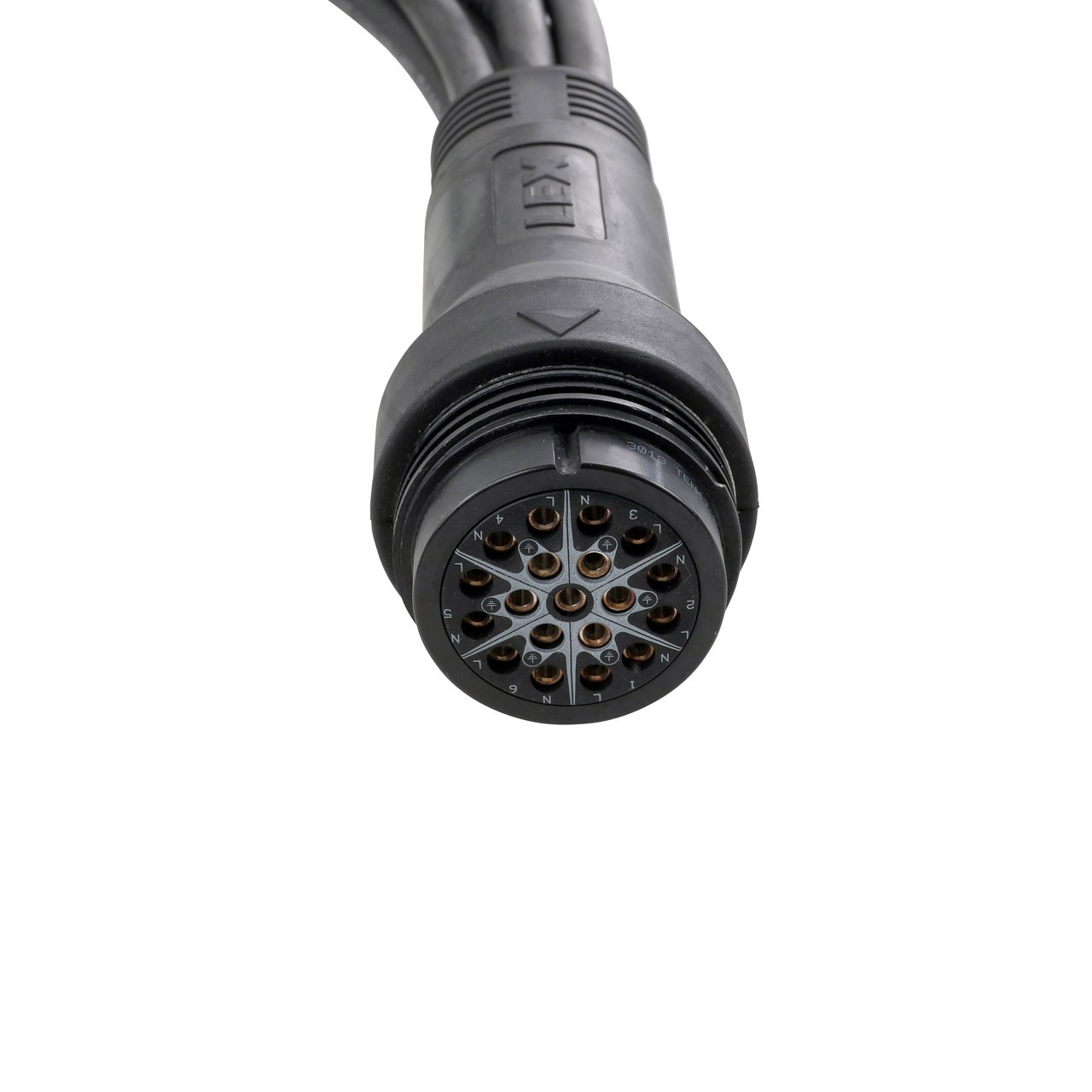

Female Connector: (1) LSC19, (6) x 10 Amp, 2-pole, 3-wire, 120/208Y VAC, molded 19-pin locking device
Length: 3′
Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
Features:
– Provides power to (6) Stage Pin (Bates) connectors from (1) molded 6-circuit LSC19 plug
– Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
– Pins and sockets cannot push back, extending the life of the connectors
– Rugged construction helps prevent broken conductors and loose or damaged ground rings
– Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
– Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
– Silver-plated brass contacts for high conductivity
– All black construction blends into scenery and is ideal for stage or studio lighting applications
– Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
– Pins and sockets cannot push back, extending the life of the connectors
– Rugged construction helps prevent broken conductors and loose or damaged ground rings
– Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
– Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
– Silver-plated brass contacts for high conductivity
– All black construction blends into scenery and is ideal for stage or studio lighting applications
