Description

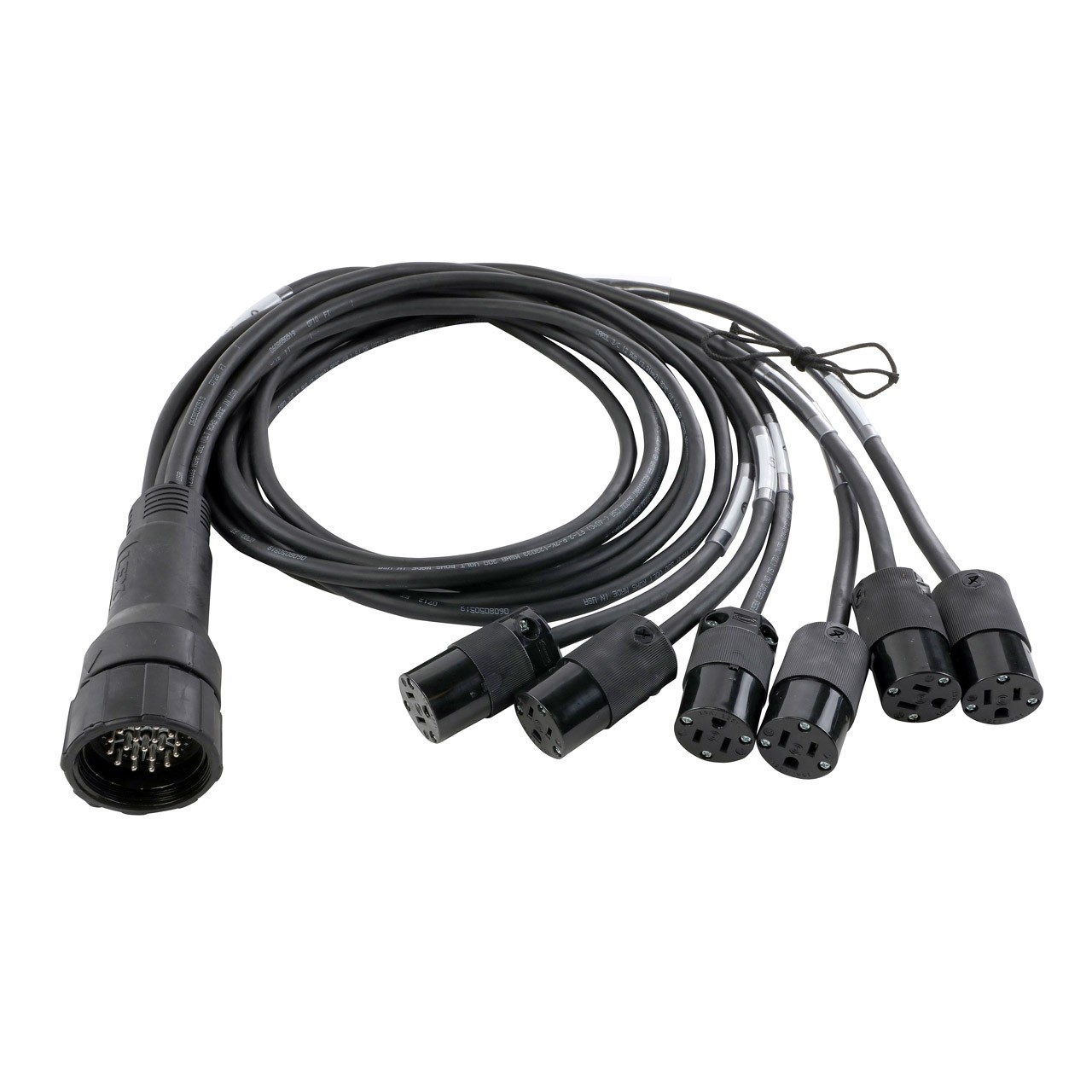

Lex EGBO100-6-515 EverGrip® Molded 19-Pin Male (Plug) to (6) NEMA 5-15 (Edison) Females (Connectors) Breakout, 6ft
Product Specifications:
Brand: Lex PowerFLEX™
Part Number: EGBO100-6-515
Rating: 15 Amp, Single-phase (H,N,G), 2-pole, 3-wire, 125 VAC, 60 Hz
– NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
Male Plug: (1) LSC19, (6) x 10 Amp, 2-pole, 3-wire, 120/208Y VAC, molded 19-pin locking device
Cable/Cord: (6) #12/3 Type SJOOW Cord
Female Connector: (6) NEMA 5-15, 15 Amp, 2-pole, 3-wire, 125 VAC, straight blade inline device, black
Length: 6′
Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
Features:
– Provides power to (6) Stage Pin (Bates) connectors from (1) molded 6-circuit LSC19 plug
– Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
– Pins and sockets cannot push back, extending the life of the connectors
– Rugged construction helps prevent broken conductors and loose or damaged ground rings
– Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
– Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
– Silver-plated brass contacts for high conductivity
– All black construction blends into scenery and is ideal for stage or studio lighting applications
– Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
– Pins and sockets cannot push back, extending the life of the connectors
– Rugged construction helps prevent broken conductors and loose or damaged ground rings
– Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
– Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
– Silver-plated brass contacts for high conductivity
– All black construction blends into scenery and is ideal for stage or studio lighting applications
