Description

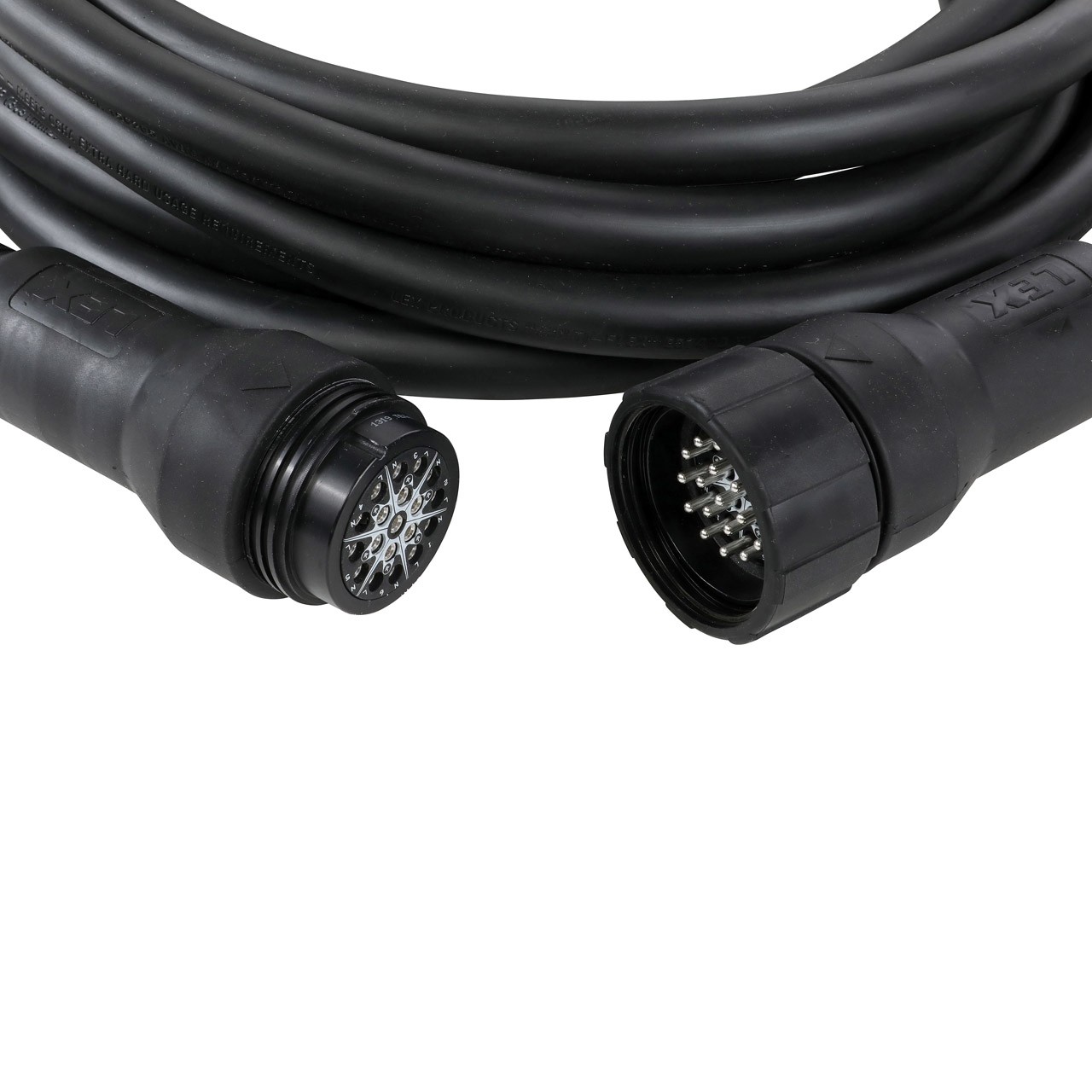

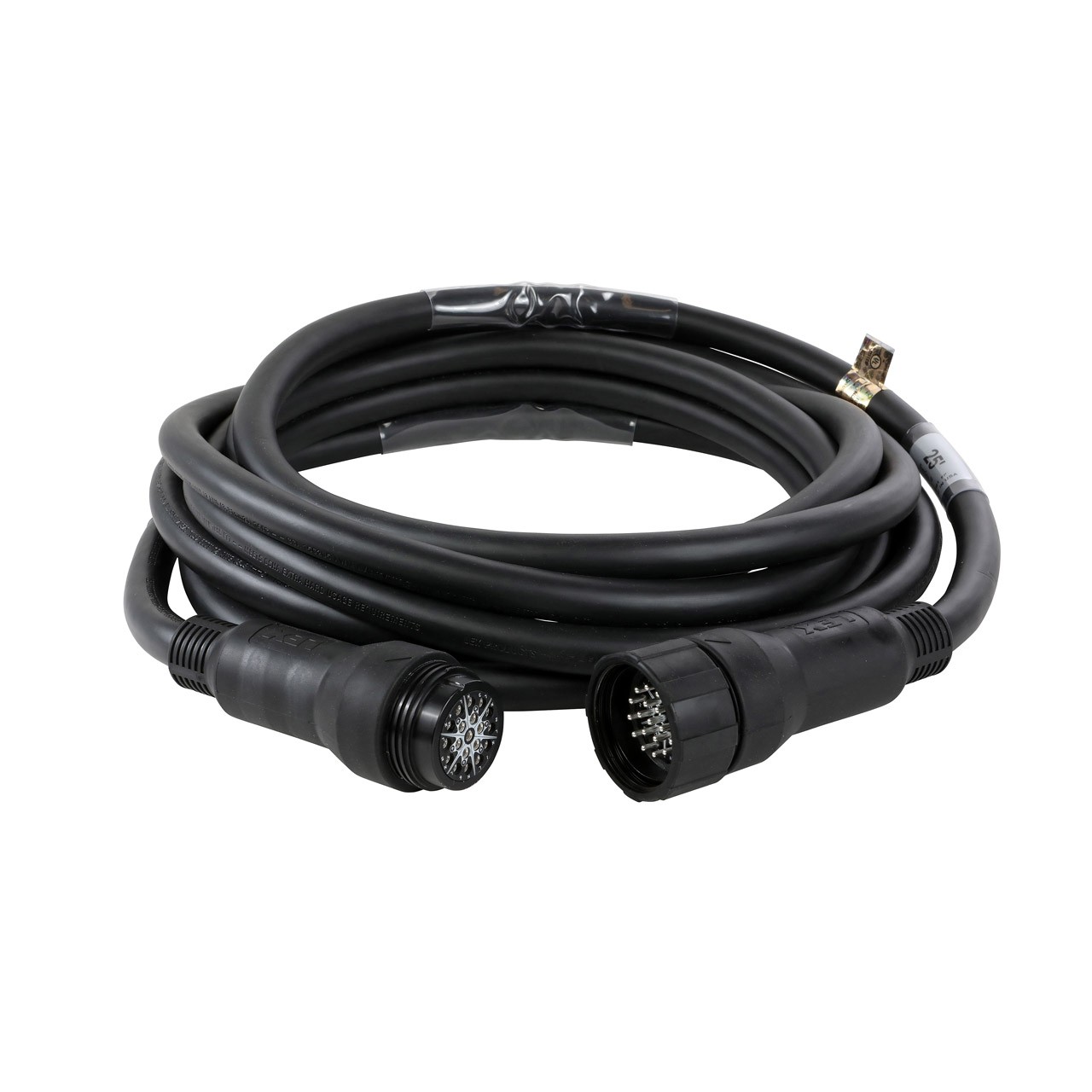

Lex EGME-1214-125 EverGrip® Molded 19-Pin Multi-Conductor Extension, 125ft
Product Specifications:
Brand: Lex PowerFLEX™
Part Number: EGME-1214-125
Rating: 20 Amp, 125 VAC, Single Pole, 2-Pole, 3-Wire
NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)
Male Plug: (1) Molded 20A 19-Pin Male (Plug), Black
NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors
Cable/Cord: #12/14 Type TPR, Black
Female Connector: (1) Molded 20A 19-Pin Female (Connector), Black
NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors
Agency Approval: UL Listed
Length: 125′
Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
Features:
– Thermoplastic resin premold creates a bond between the cable and connector for superior strain relief and secure terminations
– Pins and sockets cannot push back, extending life of the connector
– Rugged construction helps prevent broken conductors and loose or damaged ground rings
– Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
– Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
– Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
– Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
– Available in 12, 14 and 16 AWG to meet specific requirements
– 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
– Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections
– Silver-plated brass contacts for high conductivity
– All black construction blends into scenery and is ideal for stage or studio lighting applications
– Pins and sockets cannot push back, extending life of the connector
– Rugged construction helps prevent broken conductors and loose or damaged ground rings
– Keyed design prevents misalignment of circuit conductors and unmateable or mismatched connections
– Thermoplastic elastomer overmold absorbs impact and provides an insulated and secure gripping surface for easier mating and safe handling
– Multi-cables carry 6-circuits of lighting power inside a single jacket, avoiding 6 individual runs of cable
– Specially formulated thermoplastic rubber jacket provides exceptional flexibility and durability
– Available in 12, 14 and 16 AWG to meet specific requirements
– 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
– Tempered spring female contacts maintain constant pin pressure to help ensure low resistance connections
– Silver-plated brass contacts for high conductivity
– All black construction blends into scenery and is ideal for stage or studio lighting applications
