Description

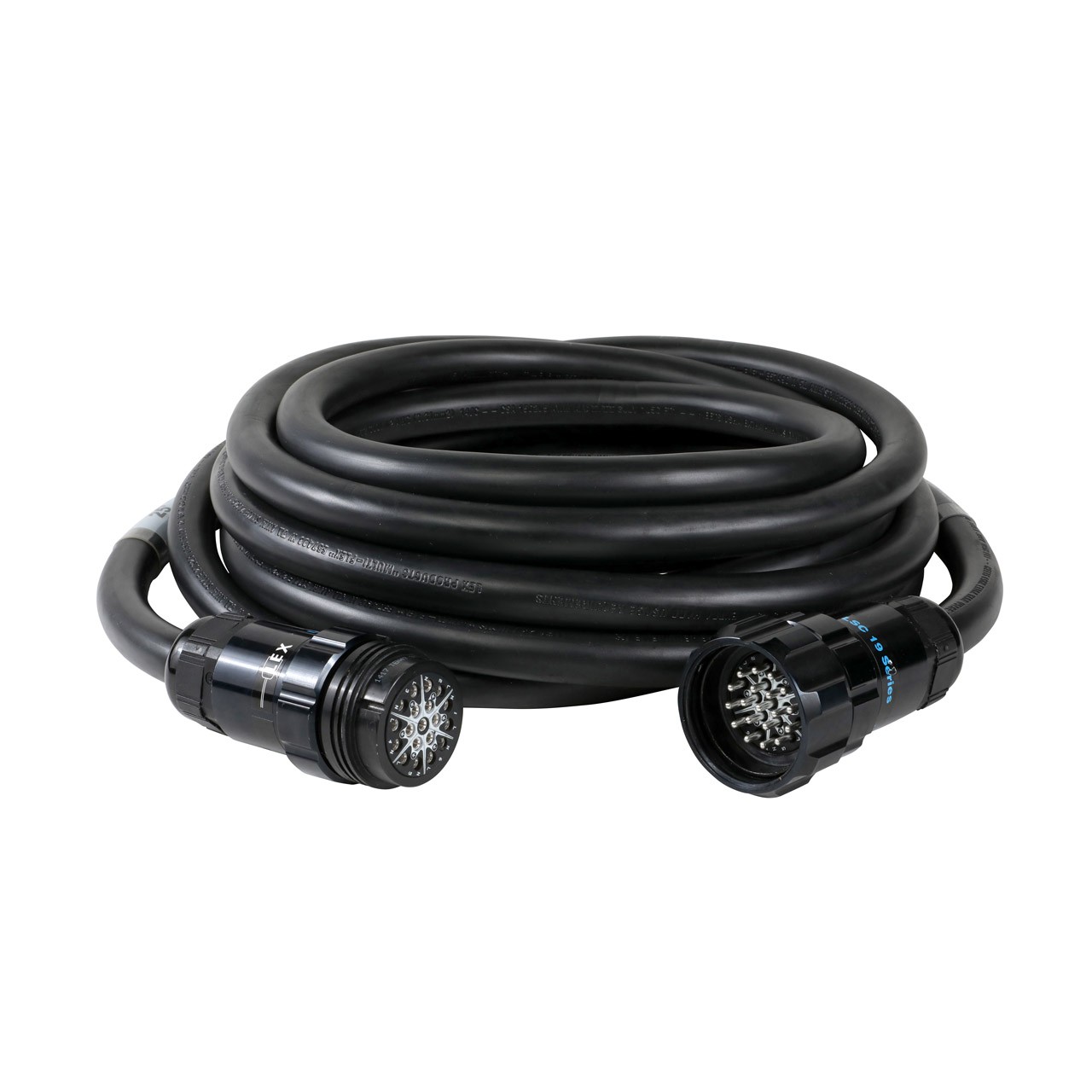

Lex ME1214-100-L 19-Pin Multi-Conductor Extension, 100ft
Brand: Lex PowerFLEX™
Part Number: ME1214-100-L
Rating: 20 Amp, 125 VAC, Single-pole, 2-Pole, 3-Wire
– NOTE: Maximum when used with 50% diversity of load (in accordance with table NEC 520-44)

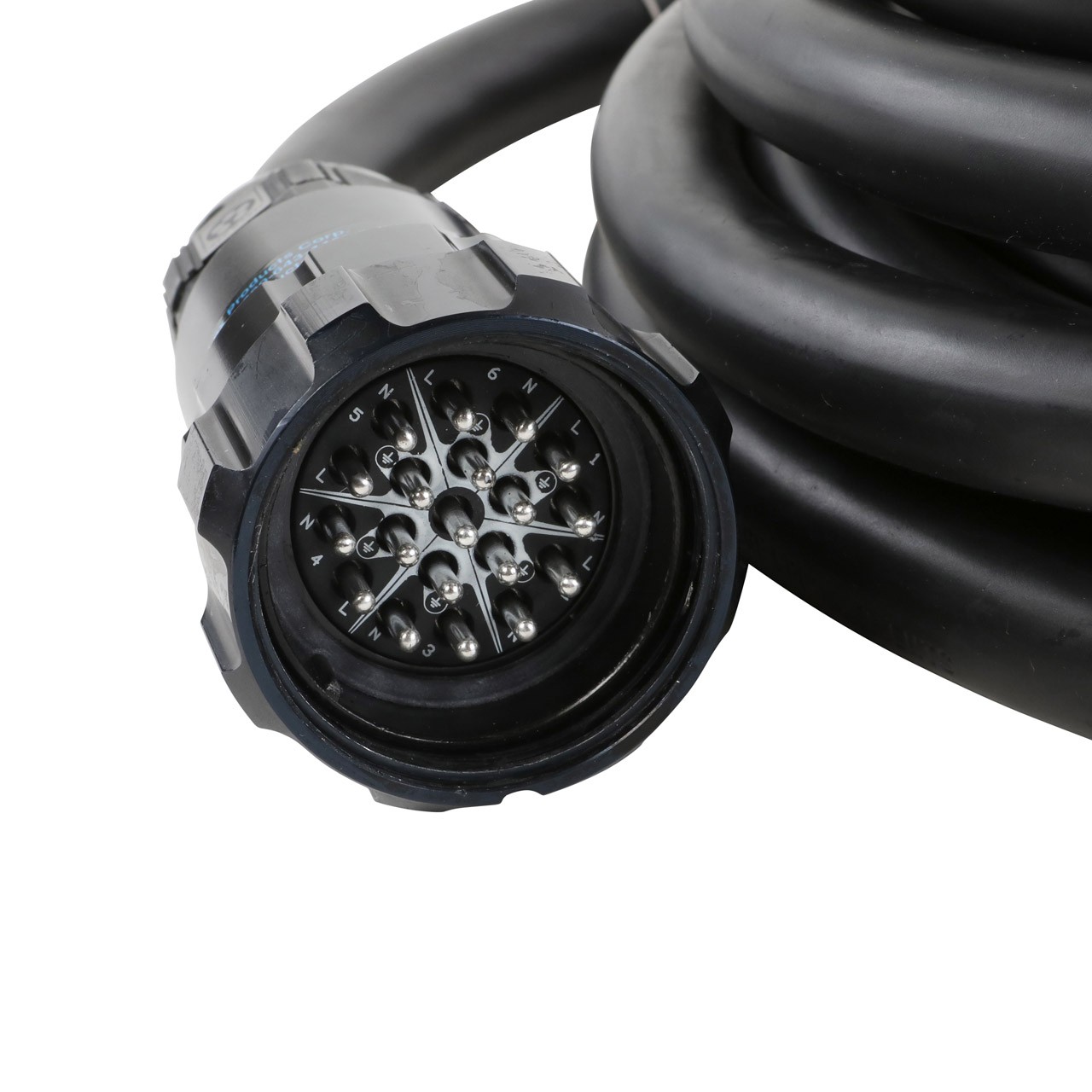

Male Plug: (1) Molded 20A 19-Pin Male (Plug), Black
– NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors
Cable/Cord: #12/14 Type TPR, Black

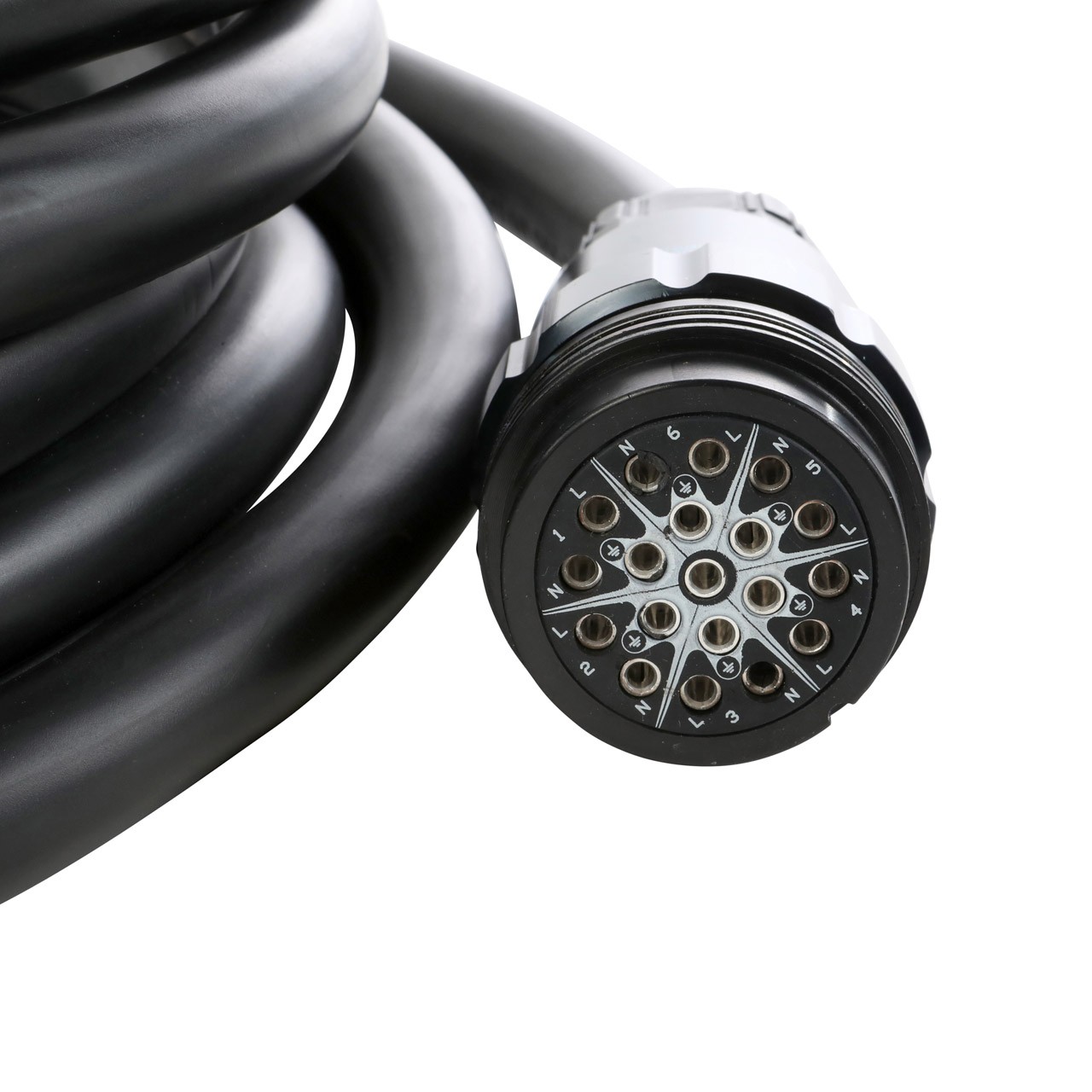

Female Connector: (1) Molded 20A 19-Pin Female (Connector), Black
– NOTE: Six ground contacts are combined through the use of a ground ring to two ground conductors
Length: 100′
Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers
– Cables feature proprietary LSC19 6-circuit lighting connectors with 12 interlocking keys to prevent spinning of the interior within the male and female housing
– Prevents misalignment of male and female circuit conductors and unmateable or mismatched connections
– Available in 12, 14 and 16 AWG to meet specific requirements
– 14 conductor multi-cable offers two lower weight options when bonded grounds are accepted
– “Tempered spring” female contacts maintain constant pin pressure to help ensure low resistance connections
– Machined aluminum housing with hard black anodized finish provides maximum durability
– Silver-plated brass contacts for high conductivity
– All black construction blends into scenery and is ideal for stage or studio lighting applications
