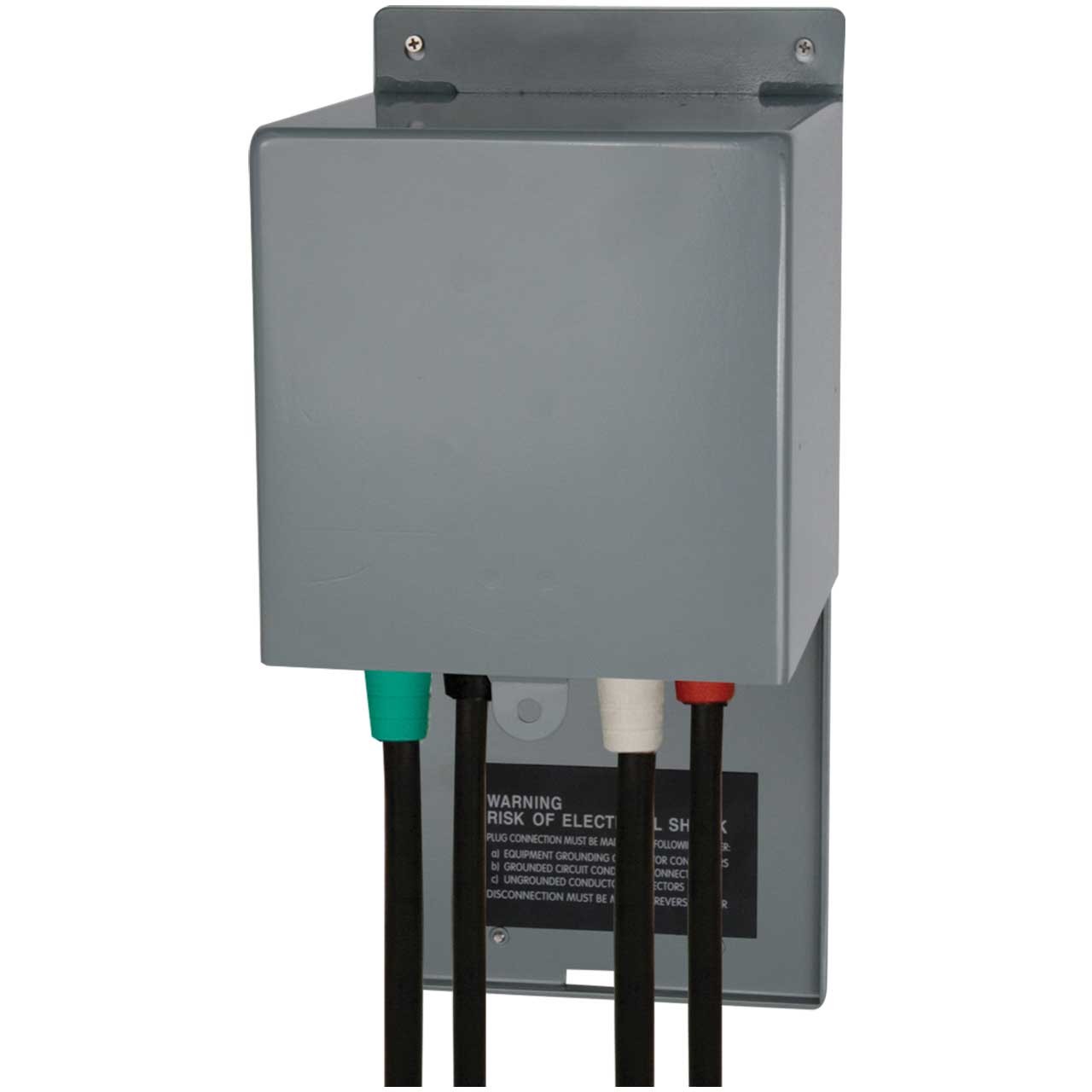

Brand: Lex PowerGATE™
Part Number: OBL1304K7DSS
Rating: 100 Amp, Single Phase (H,H,N,G), 3-Pole, 4-Wire, 120/240 VAC
Environmental Rating: NEMA Type 3R (Outdoor Use)
Input: (1) set of (4) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded, (H,H,N,N,G), panel mount inlets
Output: (1) set of (4) Double Set Screw Terminals (H,H,N,G), wire range: 1/0 – 4/0, 600V
Feed Thru: None
Overcurrent Protection: None
Enclosure: Aluminum, wall mount
Color: powder coat gray finish
Overall Dimensions: 8.5″H x 8.5″W x 10″H
Weight: 9.0 lbs.
Markets Served: Industrial, Generator, Transmission Tower, Telecommunication, Shelter Manufacturers

– Company Switches have become the preferred type of product for applications of this nature due to safety and convenience benefits
– PowerGATE™ Company Switch design features both Cam-type connectors and lugs in one compact, connection chamber for ultimate flexibility
– Features an electronic trip circuit breaker that is 100% rated, enabling continuous operation at maximum capacity
– Circuit breaker rated at 65,000 AIC (Amps Interrupting Capacity) to exceed requirements for installed dimmers
– Outputs are behind a lockable access door, helping to eliminate accidental disconnection, unauthorized access and/or tampering with connections
– Unique arrangements of both cams and lug terminations enables both sets of cable to drape downward for lower profile when mounted against a wall
– For enhanced safety, the access door to pin & sleeve and lug connections is interlocked to the main breaker, which means the breaker cannot be turned on unless the access door is closed
– Power shuts off automatically when the access door is opened, eliminating the ability to make or break a connection under load
– Circuit breaker allows for lockout/tagout to restrict access as needed
– The chassis ground can be isolated from the main ground for sensitive audio applications
– An integral LED worklight is provided in the connection chamber for ease of connection and enhanced safety
