Description

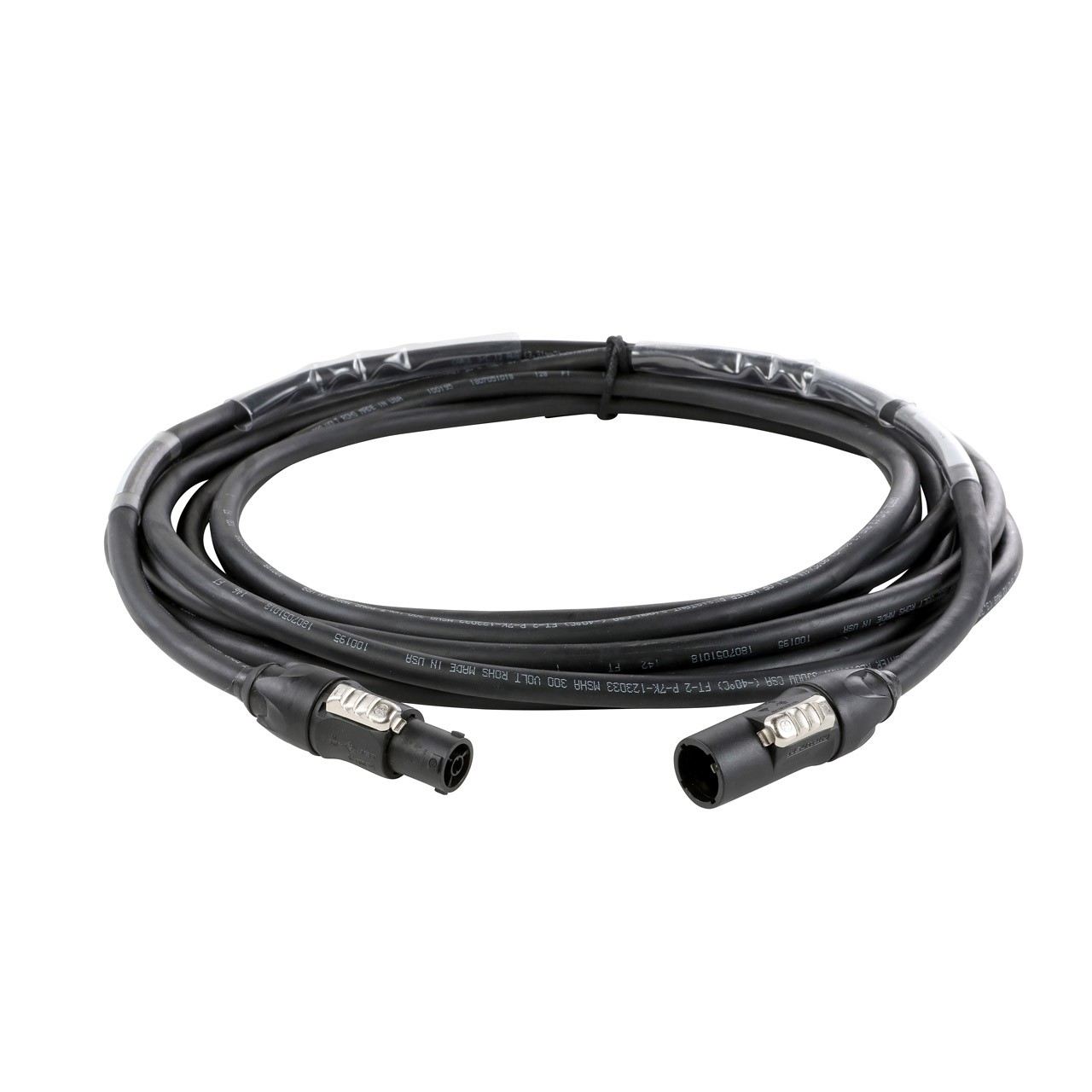

Lex PE700J-100-TRUE1 TRUE1 Extension, 100ft
Product Specifications:
Brand: Lex PowerFLEX™
Part Number: PE700J-100-TRUE1
Rating: 20 Amp, Double-phase (H,H,G), 2-pole, 3-wire, 250 VAC, 60 Hz
Male Plug: (1) powerCON TRUE1® NAC3MX-W-TOP, 16 Amp, 2-pole, 3-wire, 250 VAC, locking inline device, black
Cable/Cord: #12/3 Type SJOOW Cord
Female Connector: (1) powerCON TRUE1® NAC3MX-W-TOP, 16 Amp, 2-pole, 3-wire, 250 VAC, locking inline device, black
Length: 100′
Markets Served: Motion Picture and Television Production, Theatrical, Concert, Touring, Live Events
Rating: 20 Amp, Double-phase (H,H,G), 2-pole, 3-wire, 250 VAC, 60 Hz
Male Plug: (1) powerCON TRUE1® NAC3MX-W-TOP, 16 Amp, 2-pole, 3-wire, 250 VAC, locking inline device, black
Cable/Cord: #12/3 Type SJOOW Cord
Female Connector: (1) powerCON TRUE1® NAC3MX-W-TOP, 16 Amp, 2-pole, 3-wire, 250 VAC, locking inline device, black
Length: 100′
Markets Served: Motion Picture and Television Production, Theatrical, Concert, Touring, Live Events
Features:
– Premium quality Neutrik PowerCON TRUE1 Connectors
– Connectors are rated under “Mate or Break” under load
– PowerCON TRUE1 connectors provide locking mechanism to prevent accidental disconnect
– UL Recognized connectors
– Connectors are IP65 rated for dust and water protection
– 12 AWG wire size assures 20 Amp rating is achieved per NEC compliance
– Connectors are rated under “Mate or Break” under load
– PowerCON TRUE1 connectors provide locking mechanism to prevent accidental disconnect
– UL Recognized connectors
– Connectors are IP65 rated for dust and water protection
– 12 AWG wire size assures 20 Amp rating is achieved per NEC compliance
