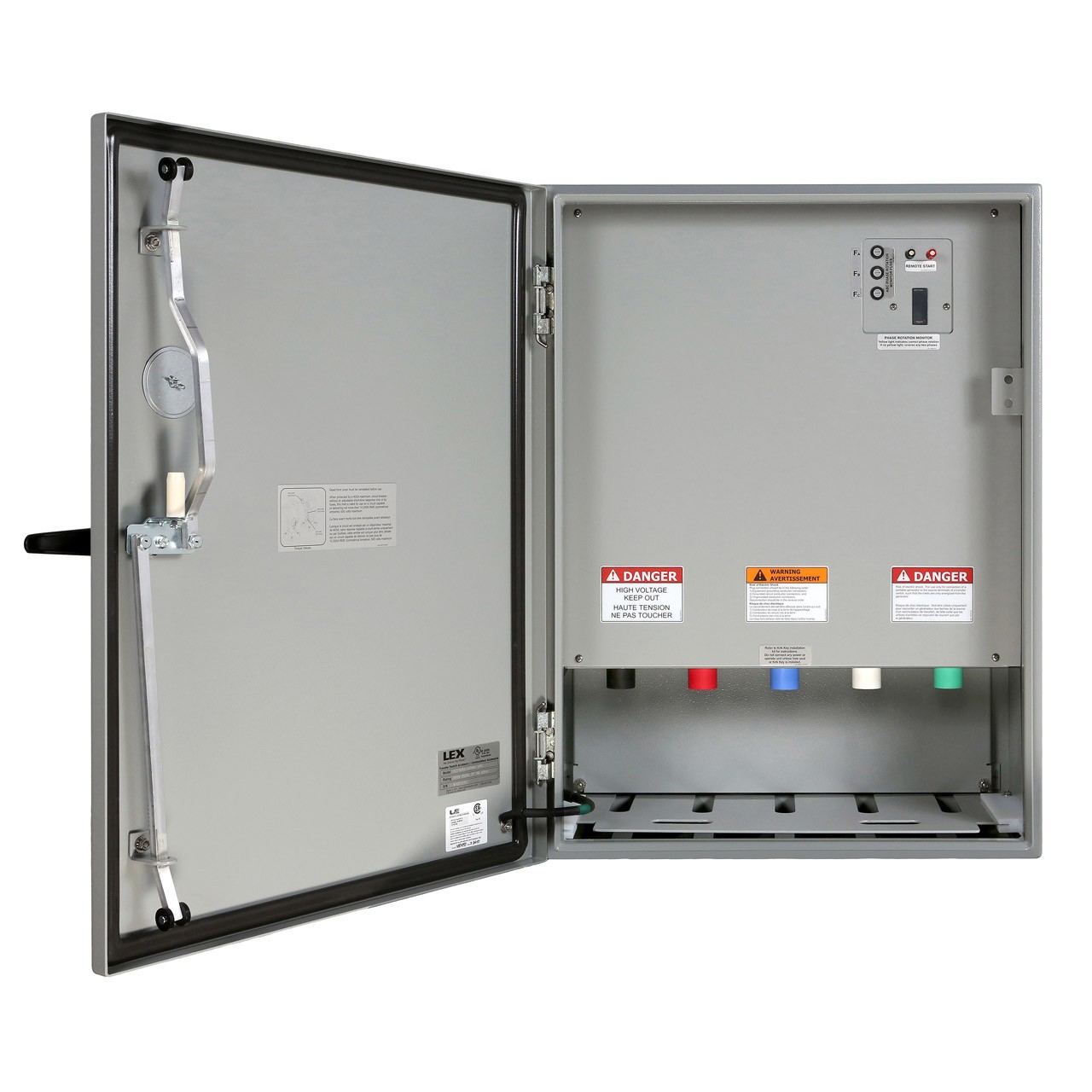

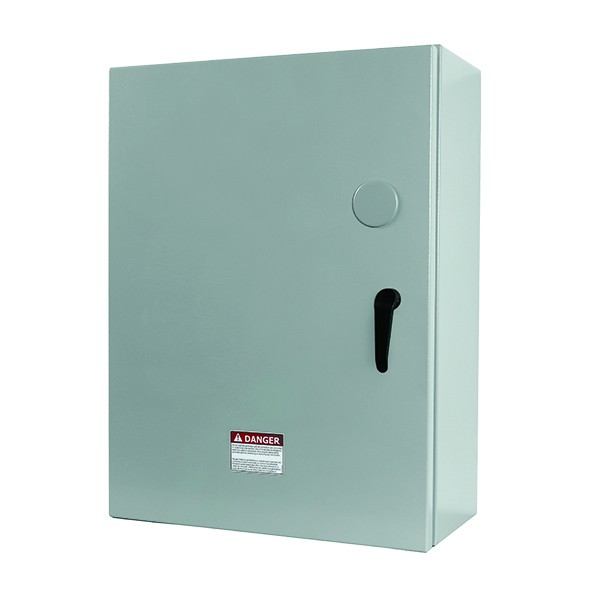

Brand: Lex PowerGATE™
Part Number: PGIP04A-BRBWG-GKL
Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 480 VAC MAX
Environmental Rating: NEMA Type 3R (Outdoor Use)
Input: (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, Black, Red, Blue, White, Green, (H,H,H,N,G), panel mount inlets
Output: (1) set of (5) Dual Port Aluminium Lugs Wire Range: 600 MCM – #2 AWG, 600V
Feed Thru: None
Overcurrent Protection: None
Enclosure: Aluminum, wall mount
Color: Textured Powder Coat ANSI 61 Gray
Overall Dimensions: 32.00″H x 24.00″W x 11.50″D
Weight: 55.0 lbs.
Agency Approval: cULus Listed
Markets Served: Emergency Relief, Generator Rental, Construction, Essential Businesses

-Extruded aluminum frames combined with high density polyethylene (HDPE) enclosure panels create lightweight yet remarkably strong and extremely durable rack enclosures
-Front and back rack doors have “snap-in” latches for ease of access
-All rack hardware is recessed on HDPE panels to protect from breakage and there are no exposed latches when doors are removed
-All 19″ rack panels are laser engraved for clear and concise identification
-100% rated, electronic main and magnetic branch circuit breakers eliminates worry of thermal tripping
-LED power indicators, including discrete six (6) circuit arrays for multipin receptacles, provide clear live circuit identification
