Description

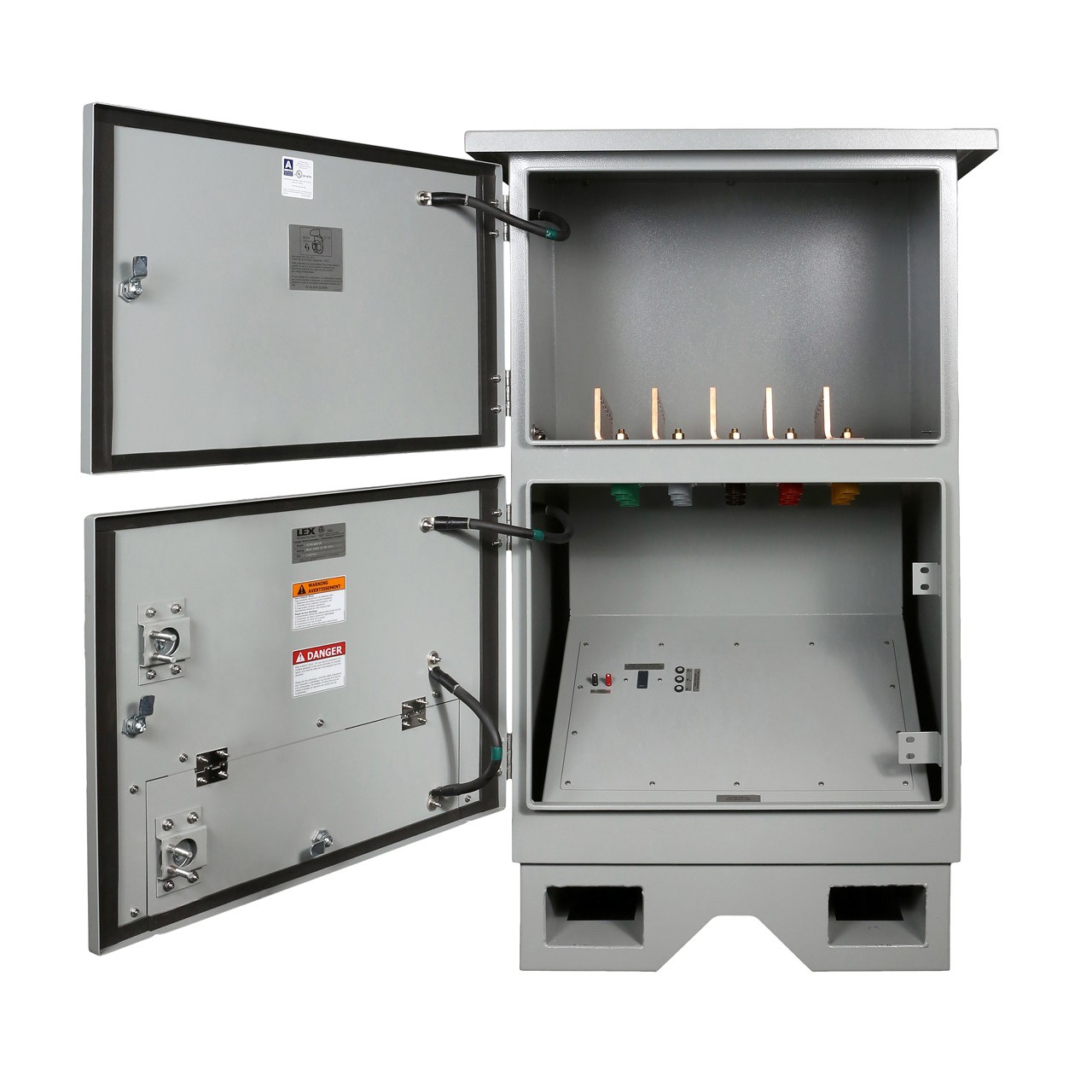

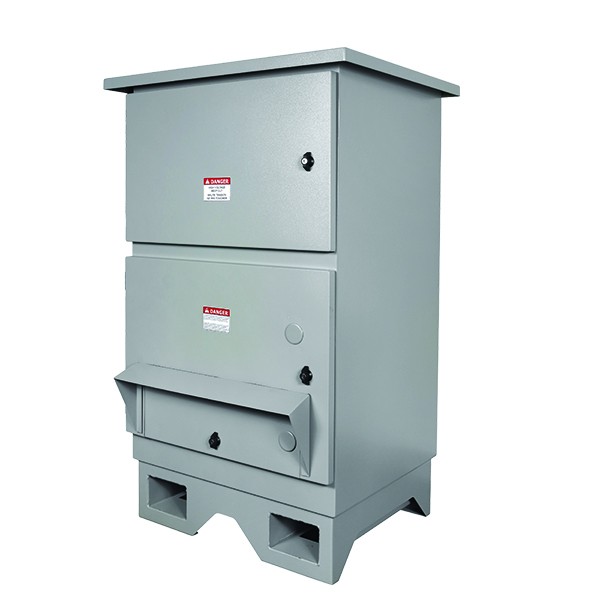

Lex PGIP12G-GWBOY-GKS 1200 Amp Power Input Panel
Part Number: PGIP12G-GWBOY-GKS
Rating: 1200 Amp, 3 Phase (H,H,H,N,G), 4-Pole, 5-Wire, 480 VAC MAX
Environmental Rating: NEMA Type 3R (Outdoor Use)

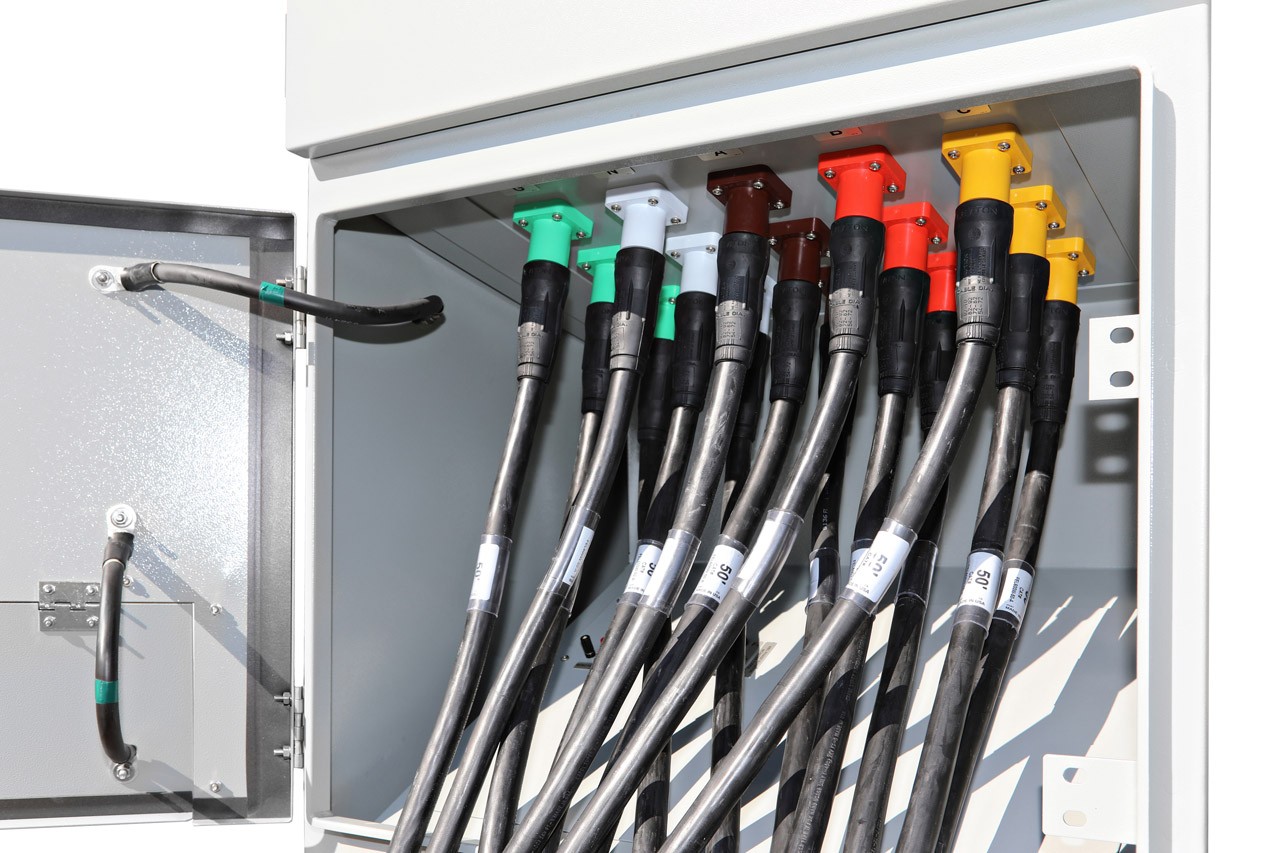

Input: (3) sets of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, Green, White, Brown, Orange, Yellow, (H,H,H,N,G), panel mount inlets
Output: Copper Bus Bars with 1/2 inch Holes
Feed Thru: None
Overcurrent Protection: None
Enclosure: Galvanized Steel, pad mount
Color: Textured Powder Coat ANSI 61 Gray
Overall Dimensions: 56.00″H x 35.00″W x 30.00″D
Weight: 495.0 lbs
Agency Approval: cETLus Listed
Markets Served: Emergency Relief, Generator Rental, Construction, Essential Businesses
-PowerGATE™ Input Panels are fully listed to UL 1008 for outdoor use
-Provides safe, reliable and convenient access to temporary electricity in power outage and disaster relief applications
-Industry standard Cam Type devices save crucial time in emergency situations
-Cable Egress Door restricts access to terminations and provides cable strain relief
-Building wire can be fed from either the bottom or the top of the unit
-Reduce cable theft with tamper proof design
-2 Wire Remote Start Terminals allows for remote control of the stand by generator
-Phase rotaion monitor; Quickly monitor the total loss of one or more phases and synchronization of phases
-Kirk Key Provision allows for installation of a Kirk Key Type D Interlock to prevent two sources of active power at a time
