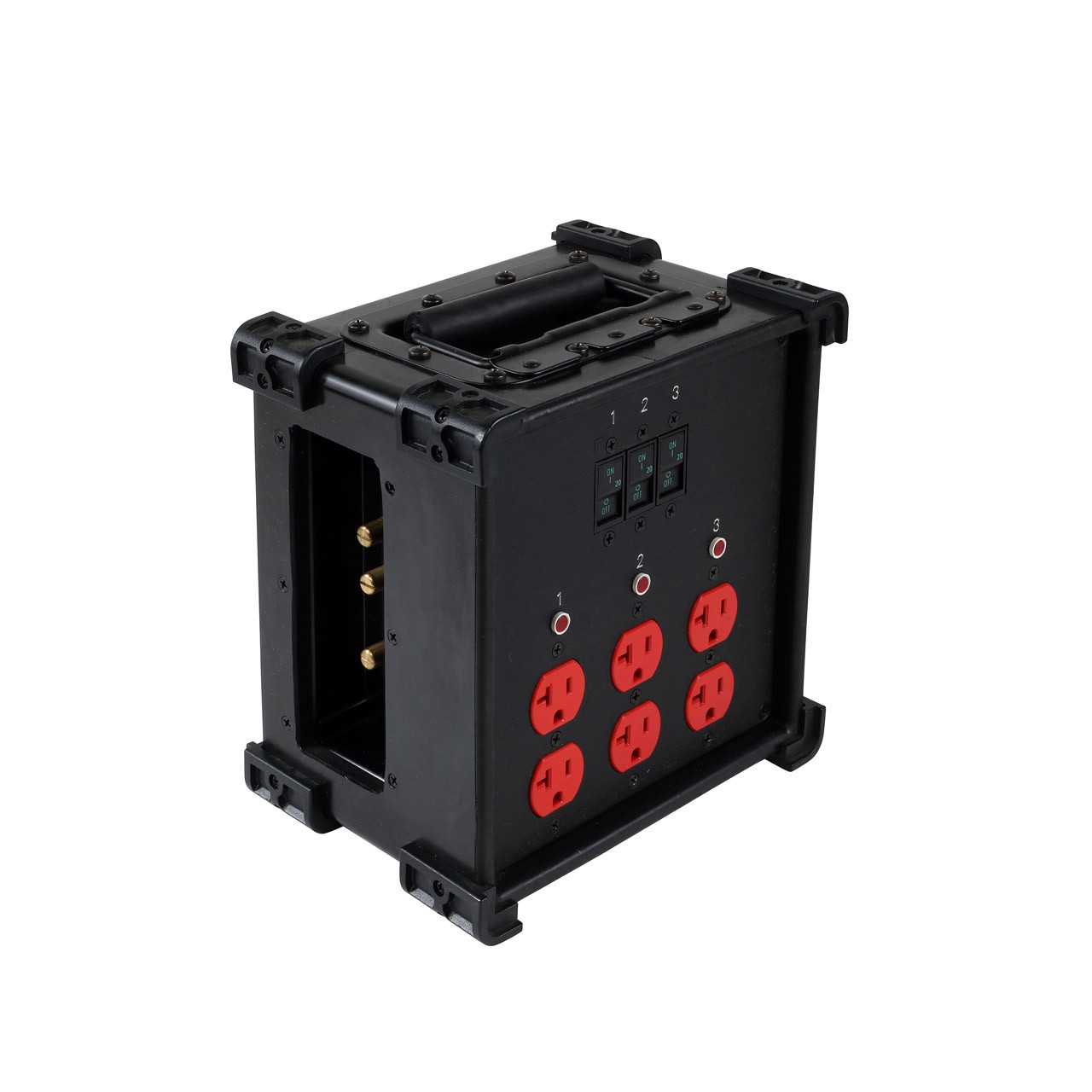

Brand: Lex PowerHOUSE™
Part Number: PH060B1-NDB-13CC
Rating: 60 Amp, Single Phase (H,N,G), 2-Pole, 3-Wire, 120/208Y VAC
Environmental Rating:     NEMA Type 1 (Indoor Use)
Input: (1) 60 Amp Stage Pin (Bates), 60 Amp, 2-Pole, 3-Wire, 125 VAC inlet, panel mount
Feed Thru: Yes
Main Breaker: None
Output: (3) NEMA 5-20, 20 Amp, 2-Pole, 3-Wire, 125 VAC, duplex receptacles, panel mount
Overcurrent Protection: (3) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
Enclosure Type: CineBox
Dimensions: 6.38″L x 9.00″W x 9.00″H
Weight: 9.5 lbs
Agency Approval: cULus Listed
Markets Served: Film, Motion Picture, Television Production

– Fed from larger power sources, this compact distribution unit provides 5-20 duplex receptacles for smaller lights and related equipment
– The feed thru feature allows multiple boxes on the same feed.Stackable, rugged design
– Non-conductive heavy-duty rubber enclosure resistant to shock, impact and corrosion
– Hydraulic magnetic circuit breakers help prevent nuisance tripping at high temperatures
– Specification grade receptacles designed and manufactured to withstand harsh conditions
– Bright, color coded receptacles easily identify the box rating and increase visibility in low-light situations
– Optional threaded insert on the back provides easy mounting with C-clamp
