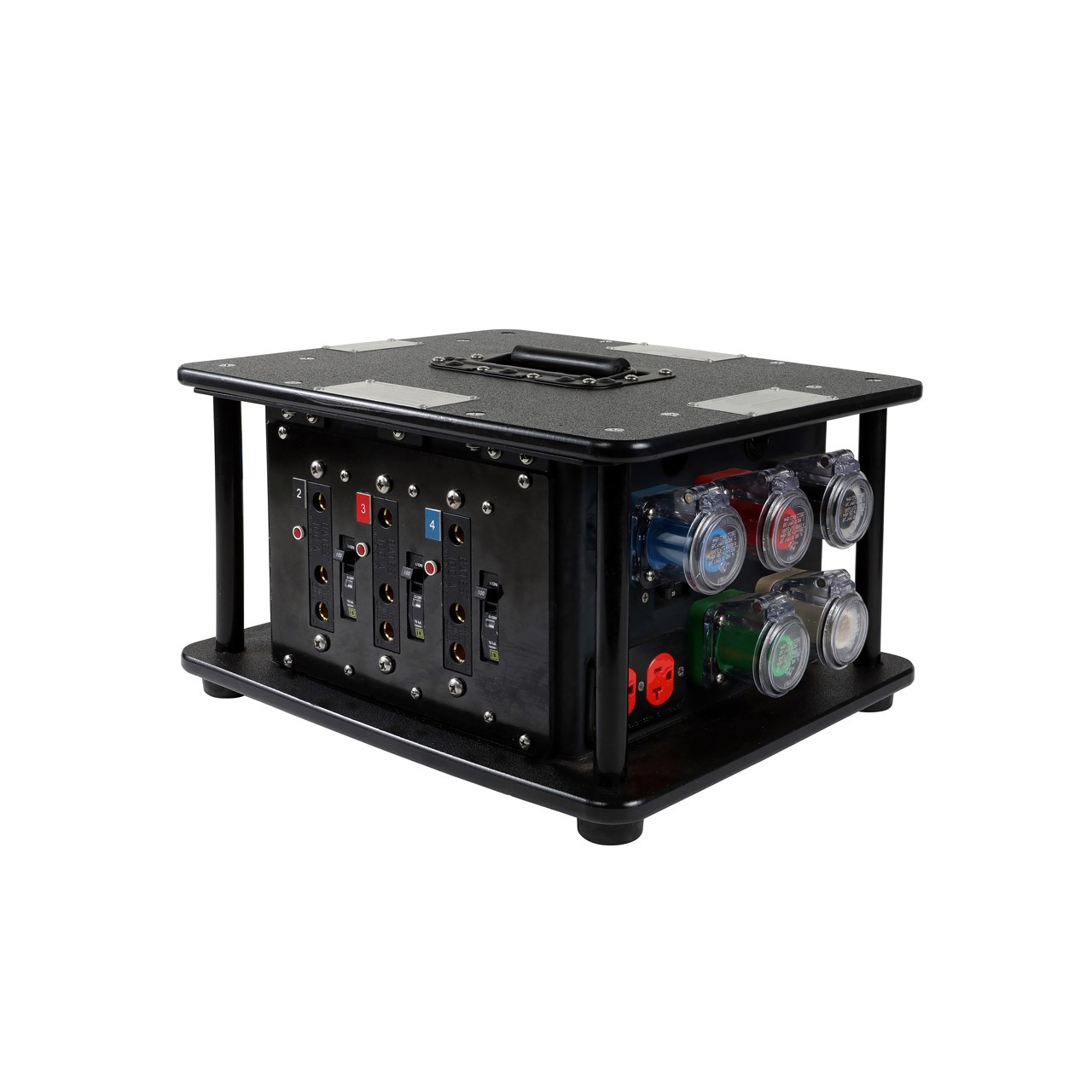

Brand: Lex PowerHOUSE™
Part Number: PH400A1-N2J-26BC2CC
Rating: 400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
Environmental Rating:     NEMA Type 1 (Indoor Use)
Input:  (1) set of (5) 16 Series Cam-type, 400 Amp, single pole, 600V, color-coded inlets, panel mount
Feed Thru: Yes
Output: (6) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacles; (2) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
Overcurrent Protection: (6) 100 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers; (2) 20 Amp, 120 VAC, single pole, hydraulic magnetic, branch-rated circuit breakers
Dimensions: 14.125″ D x 16.25″ W x 9.75″ H
Weight: 48.0 lbs
Agency Approval: cULus Listed
Markets Served: Motion Picture and Television Production

– Provides 100 Amp stage pin receptacles for high power lighting effects or to distribute power further downstream.
– 5-20 Duplex receptacles provide convenient power for smaller lights.
– The feed thru feature allows multiple boxes to be placed along the same feed.
– Stackable compact design for easy storage and portability
– Heavy-duty, non-conductive material construction is electrically insulated and resistant to shock, impact and corrosion
– Breakers are mounted for easy access and circuit identification
– Hydraulic magnetic breakers will not nuisance trip at higher temperatures
